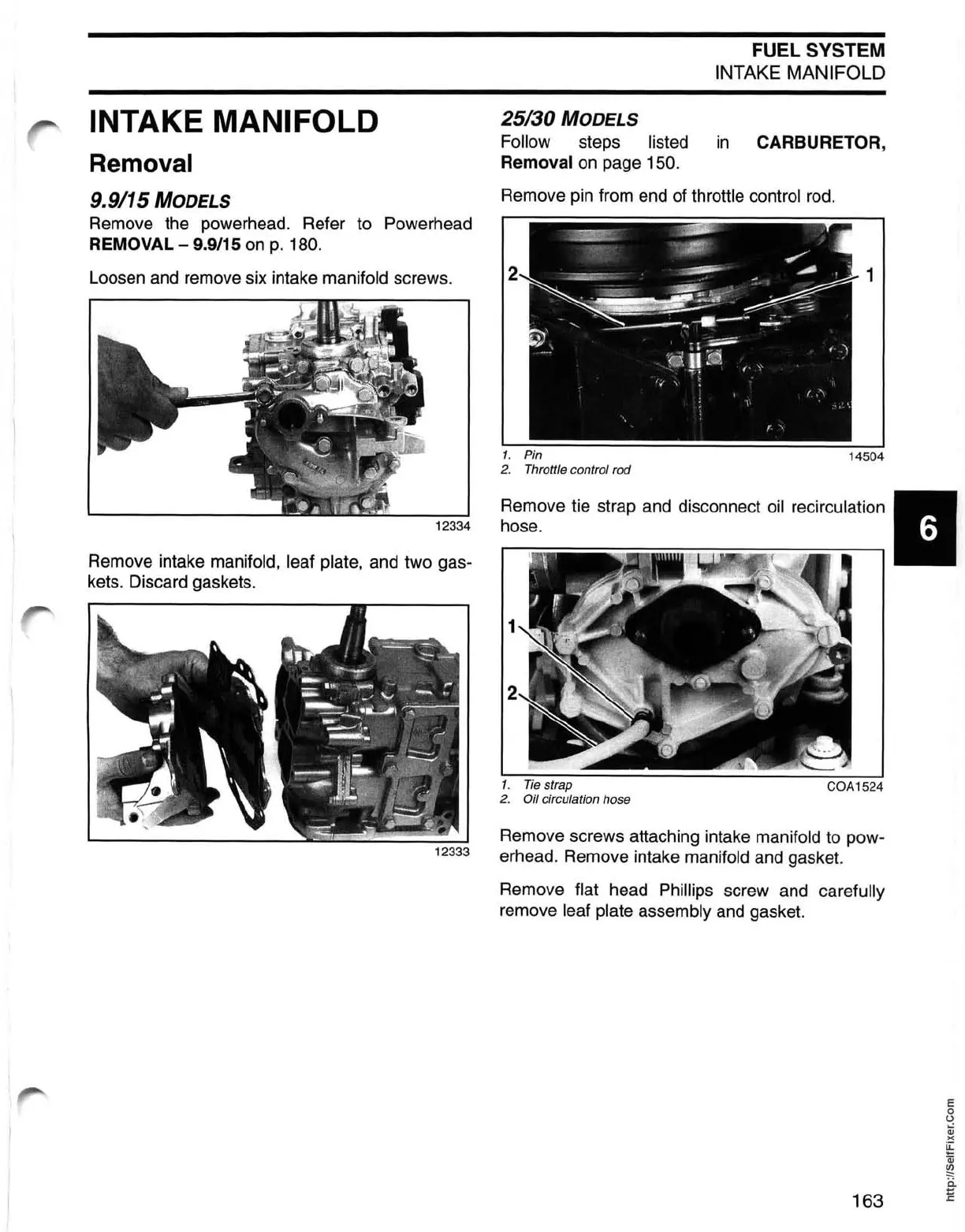

INTAKE MANIFOLD
Removal
9.9/15
MODELS
Remove the powerhead. Refer to Powerhead
REMOVAL -
9.9115
on
p.
180.
Loosen and remove six intake manifold screws.
Remove intake manifold, leaf plate, and two gas-
kets. Discard gaskets.
25/30 MODELS
FUEL SYSTEM
INTAKE MANIFOLD
Follow steps listed
in
CARBURETOR,
Removal
on
page 150.
Remove pin from end of throttle control
rod.
1
1.
Pin
14504
2.
Throttle control rod
Remove tie strap and disconnect oil recirculation •
hose. •
1.
Tie
strap
COA1524
2. Oil circulation hose
Remove screws attaching intake manifold to pow-
erhead. Remove intake manifold and gasket.
Remove flat head Phillips screw and carefully
remove leaf plate assembly and gasket.
E
o
o
:;j
)(
~
Qj
~
i::i.
163
~
