Johnson J10RSRD User Manual

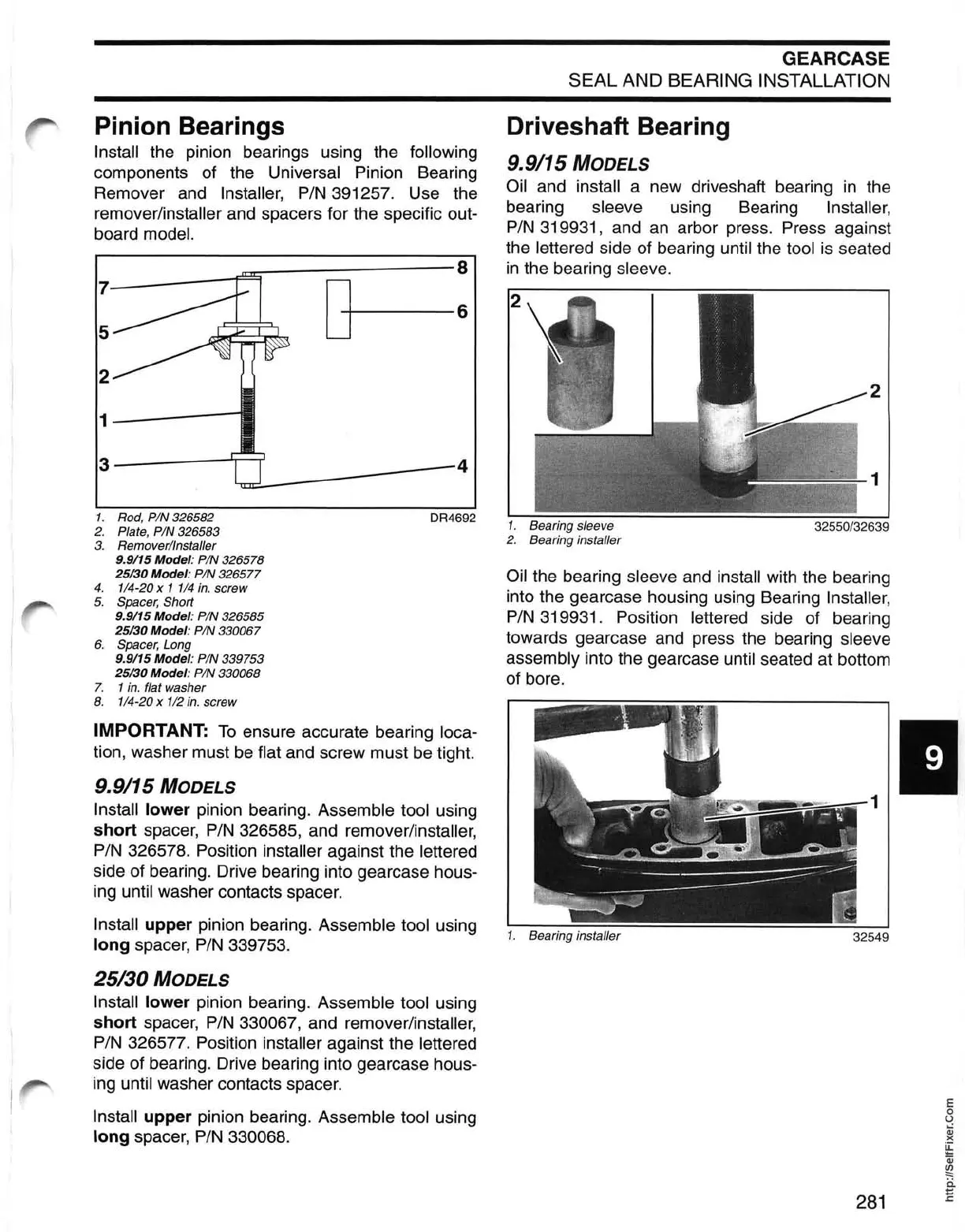

Pinion Bearings
Install the pinion bearings using the following
components of the Universal Pinion Bearing
Remover
and Installer, PIN 391257. Use the
removerlinstaller and spacers for the specific out-
board
model.
7 __ -----r~~~-----8
D~6
5
2
1-----
3-------Tl~l- __ ---------4
1. Rod, PIN 326582
2. Plate,
PIN 326583
3. Removerl lnstaller
9.9/15 Model : PIN 326578
25130 Model : PIN 326577
4. 114- 20 x 1 114 in. screw
5. Spacer,
Short
9.9115 Model : PIN 326585
25130 Model : PIN 330067
6. Space r, Long
9.9/15 Model : PIN 3397 53
25130 Model: PIN 330068
7. 1 in. flat washer
8. 11 4-20 x 112 in. screw
DR4692
IMPORTANT: To ensure accurate bearing loca-
tion, washer must be flat and screw must be tight.
9.9/15 MODELS
Install lower pinion bearing. Assemble tool using
short spacer, PIN 326585, and removerlinstaller,
PIN 326578. Position installer against the lettered
side of bearing. Drive bearing into gearcase hous-
ing
until washer contacts spacer.
Install upper pinion bearing. Assemble tool using
long spacer, PIN 339753.
25/30 MODELS
Install lower pinion bearing. Assemble tool using
short spacer, PIN 330067, and removerlinstaller,
PIN 326577. Position installer against the lettered
side of bearing. Drive bearing into gearcase hous-
ing
until washer contacts spacer.
Install upper pinion bearing. Assemble tool using
long spacer, PIN 330068.
GEARCASE
SEAL AND BEARING INSTALLATION
Driveshaft Bearing
9.9/15 MODELS
Oil and install a new driveshaft bearing in the
bearing
sleeve using Bearing Installer,
PIN 319931 , and an arbor press. Press against
the
lettered side of bearing until the tool is seated
in the bearing sleeve.
2
2
1
1. Bearing sleeve
32550/32639
2. Bearing installer
Oil the bearing sleeve and install with the bearing
into the gearcase housing using Bearing
Installer,
PIN 319931 . Position lettered side of bearing
towards gearcase and press the bearing
sleeve
assembly
into the gearcase until seated at bottom
of bore.
1
1. Bearing installer
32549
281
I
E
o
U
Qj
)(
~
Qj
~
ii
E
