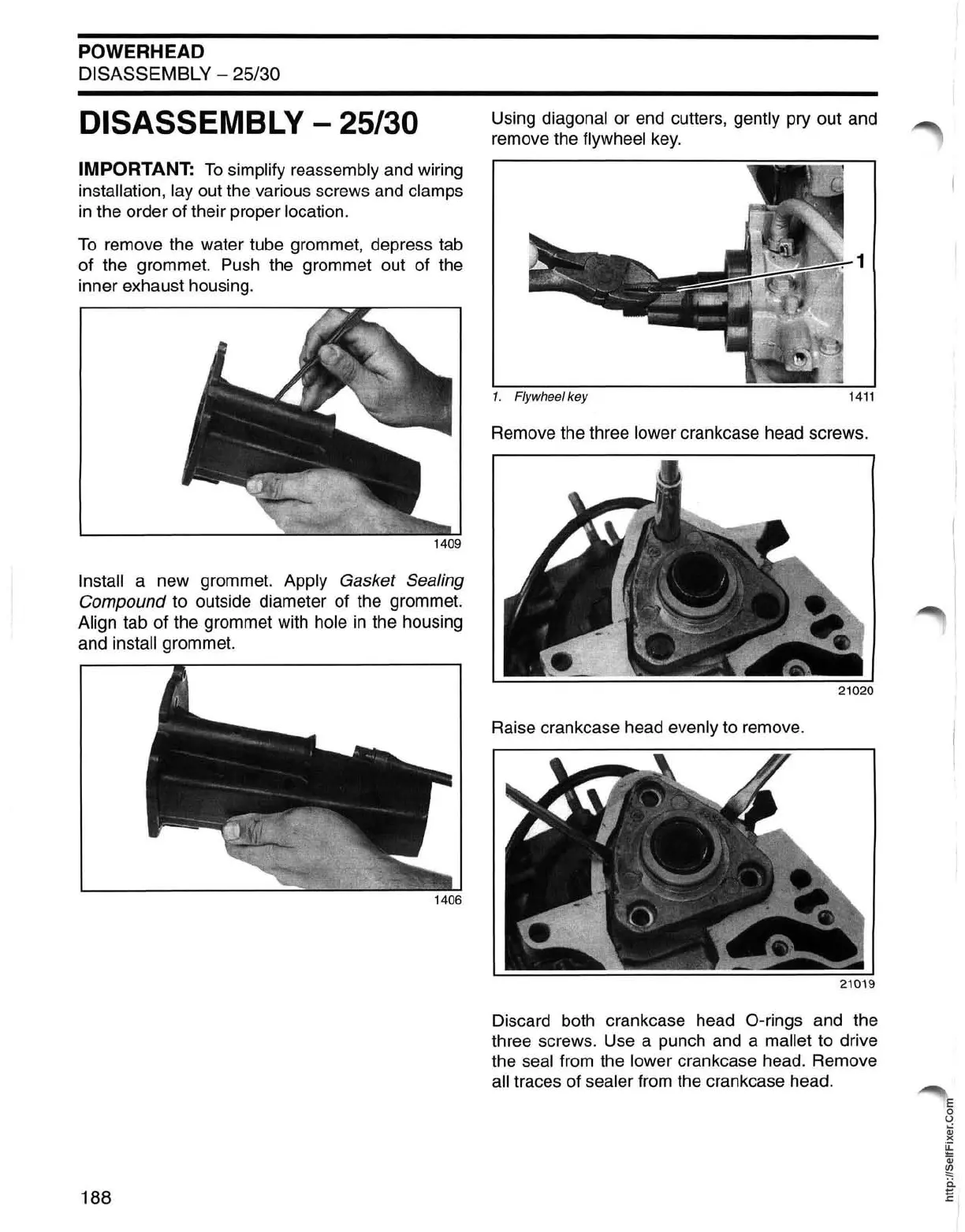

POWERHEAD
DISASSEMBLY - 25/30
DISASSEMBLY - 25/30
IMPORTANT:
To
simplify reassembly and wiring
installation,
layout
the various screws and clamps
in
the order of their proper location.
To
remove the water tube grommet, depress tab
of the grommet.
Push
the grommet out of the
inner exhaust housing.
Install a new grommet. Apply Gasket Sealing
Compound to outside diameter of the grommet.
Align tab of the grommet with hole
in
the housing
and
install grommet.
188
Using diagonal or end cutters, gently pry out and
remove the
flywheel key.
1.
Flywheel key 1411
Remove the three lower crankcase head screws.
Raise crankcase head
evenly to remove.
Discard both crankcase head
O-rings and the
three screws. Use a punch and a
mallet to drive
the
seal from the lower crankcase head. Remove
all traces of sealer from the crankcase head.
