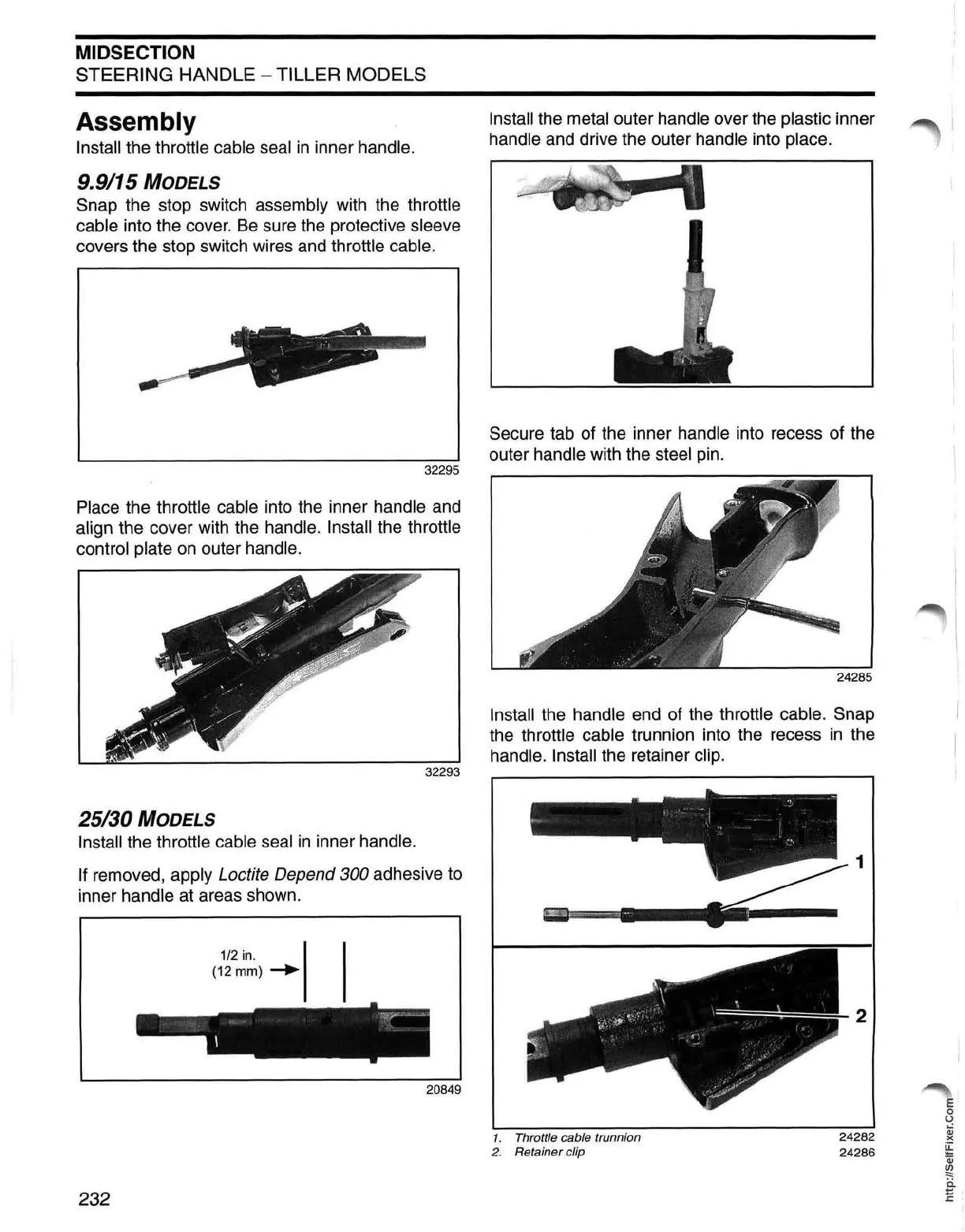

Johnson J10RSRD User Manual

MIDSECTION
STEERING HANDLE - TILLER MODELS
Assembly
Install the throttle cable seal in inner handle.
9.9/15 MODELS
Snap the stop switch assembly with the throttle
cable into the cover.
Be sure the protective sleeve
covers the stop switch wires and throttle cable.
Place the throttle cable into the inner handle and
align the cover with the handle.
Install the throttle
control plate
on outer handle.
25/30 MODELS
Install the throttle cable seal in inner handle.
If removed, apply Loctite Depend 300 adhesive to
inner handle at areas shown.
232
1/2 in.
(12mm) ~
20849
Install the metal outer handle over the plastic inner
handle and drive the outer handle into place.
Secure tab of the inner handle into recess of the
outer handle with the steel pin.
Install the handle end of the throttle cable. Snap
the throttle cable trunnion into the recess
in the
handle. Install the retainer clip.
- .
1. Throttle cable trunnion
2. Retainer clip
24282
24286
E
o
U
Qj
)(
~
Qj
~
ii
E
