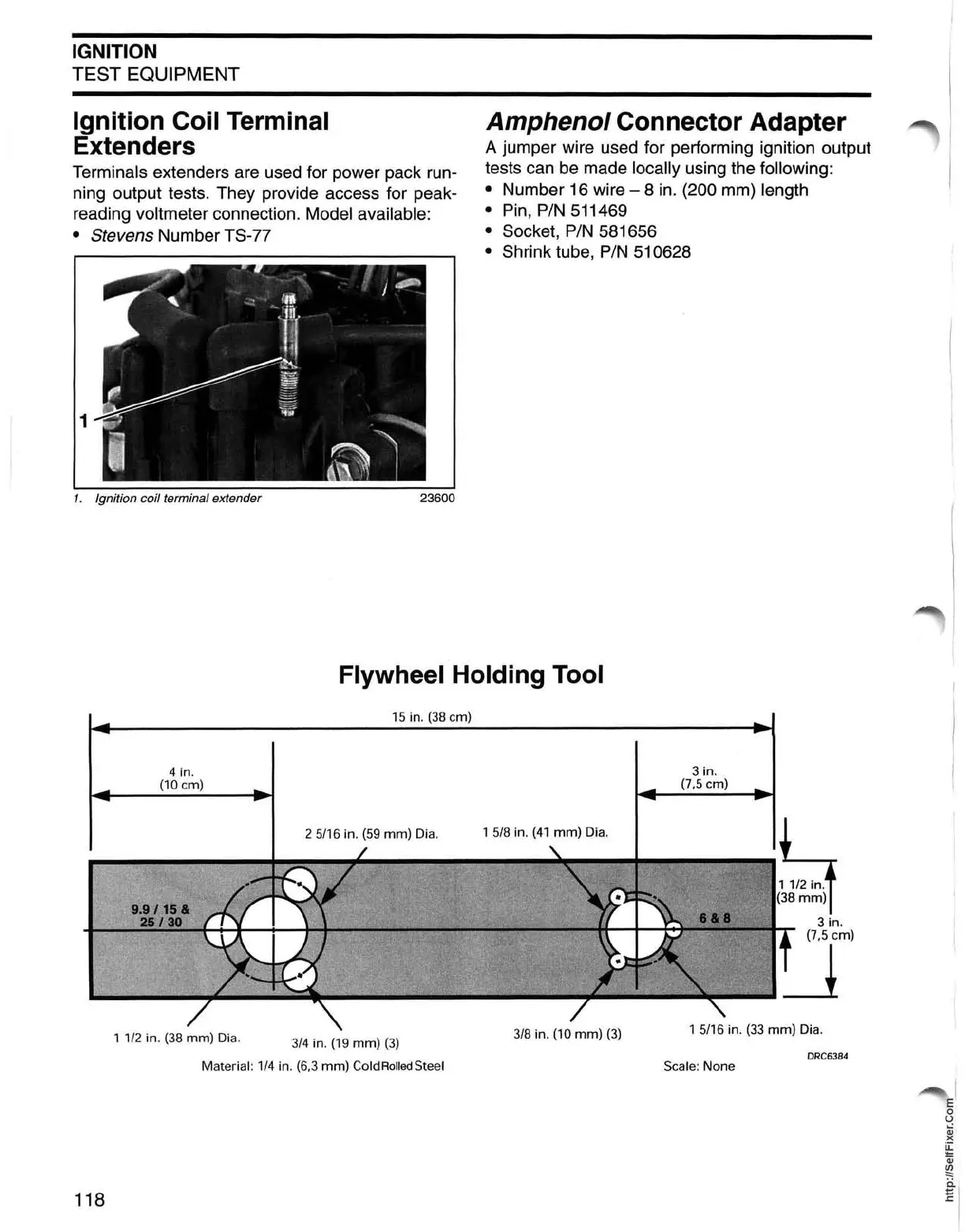

IGNITION
TEST EQUIPMENT
Ignition Coil Terminal
Extenders
Terminals extenders are used for power pack run-
ning output tests. They provide access for peak-
reading
voltmeter connection. Model available:
• Stevens
Number TS-77
1
1. Ignition coil terminal extender
23600
Amphenol Connector Adapter
A jumper wire used for performing ignition output
tests can be made
locally using the following:
•
Number 16 wire - 8
in
. (200 mm) length
•
Pin, PIN 511469
• Socket, PIN 581656
• Shrink tube, PIN 510628
Flywheel Holding Tool
118
4 in.
(10 em)
1
1/2
in
. (38
mm)
Dia.
15 in.
(38
em)
3/4
in
. (19
mm)
(3)
Material: 1/4 in. (6,3
mm)
Cold Rolled Steel
3/8
in
. (10
mm)
(3)
3 in.
(7
,5 em)
Scale: None
DRC6384
To Next Page
