Johnson J10RSRD User Manual

Gearcase
Forward gear bearing cup installer
PIN 319929 (9.9-15 HP)
Gearcase filler
PIN 501882
TYPICAL
Gearcase pressure tester
PIN 507977 (Stevens PIN S-34)
Gearcase vacuum tester
PIN 507982 (Stevens PIN V-34)
Guide pin set
PIN 3831 75

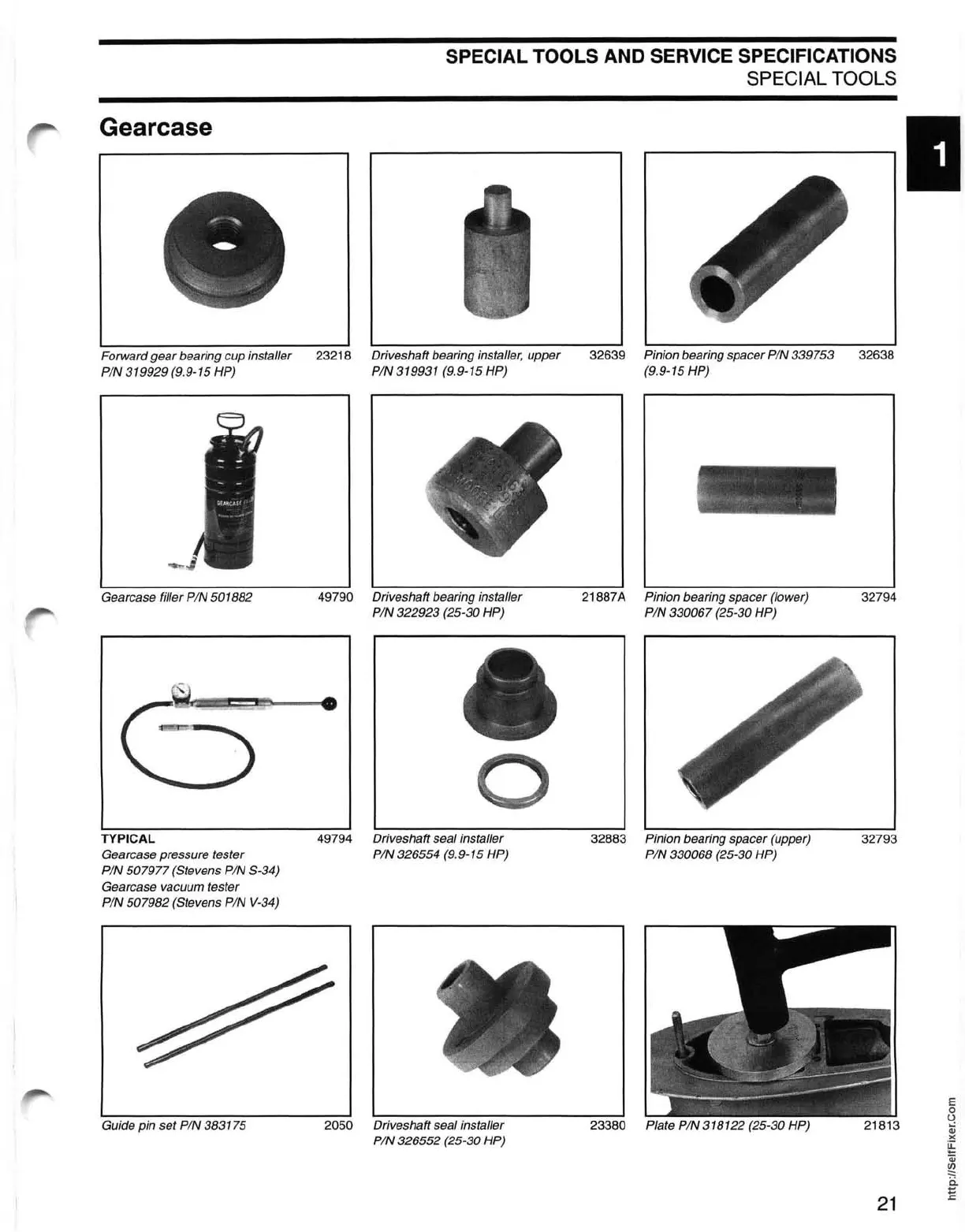

SPECIAL TOOLS AND SERVICE SPECIFICATIONS
SPECIAL TOOLS
23218 Driveshaft bearing installer, upper
PIN 319931 (9.9-15 HP)
49790 Driveshaft bearing installer
PIN 322923 (25-30 HP)
o
49794 Driveshaft seal installer
PIN 326554 (9.9-15 HP)
2050 Driveshaft seal installer
PIN 326552 (25-30 HP)
32639 Pinion bearing spacer
PIN 3397 53
(9.9- 15 HP)
~. ,
21887A Pinion bearing spacer (lower)
PIN 330067 (25-30 HP)
32883 Pinion bearing spacer (upper)
PIN 330068 (25-30 HP)
23380 Plate PIN 318122 (25-30 HP)
32638
32794
32793
21813
21
