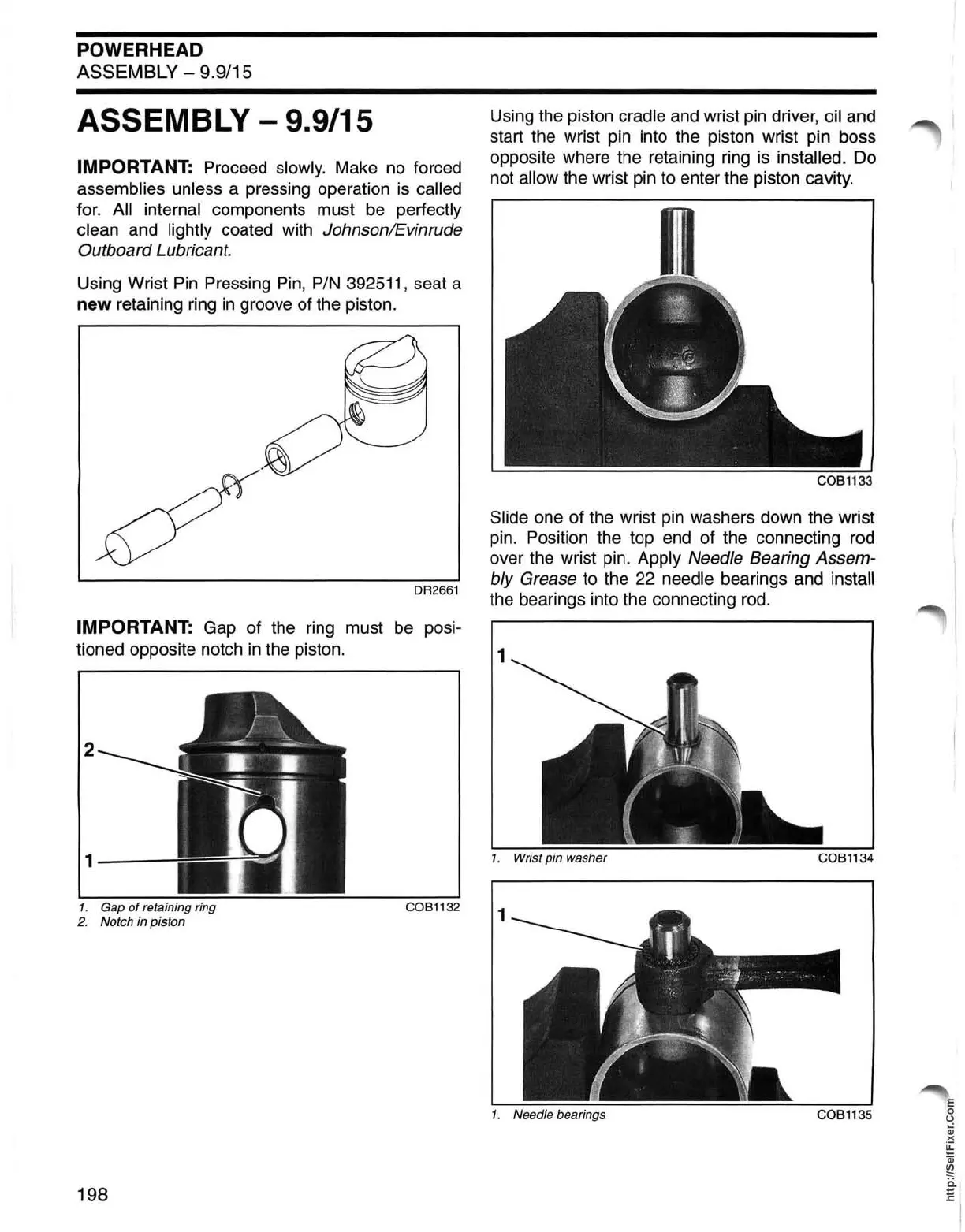

POWERHEAD
ASSEMBLY - 9.9/15
ASSEMBLY - 9.9/15
IMPORTANT: Proceed slowly. Make no forced
assemblies unless a pressing operation is called
for. All internal components must be perfectly
clean
and lightly coated with JohnsonlEvinrude
Outboard Lubricant.
Using Wrist Pin Pressing Pin, PIN 392511, seat a
new retaining ring in groove of the piston.
DR2661
IMPORTANT: Gap of the ring must be posi-
tioned opposite notch
in the piston.
2
1----
1. Gap of retaining ring COB1132
2. Notch in piston
198
Using the piston cradle and wrist pin driver, oil and
start the wrist pin into the piston wrist pin boss
opposite where the retaining ring
is installed. Do
not
allow the wrist pin to enter the piston cavity.
COB1133
Slide one of the wrist pin washers down the wrist
pin. Position the top
end of the connecting rod
over the wrist pin. Apply Needle Bearing Assem-
bly Grease
to the 22 needle bearings and install
the bearings into the connecting rod.
1
1. Wrist pin washer
COB1134
1
1. Needle bearings
COB1135
