Rev. 2.0
Maintenance Guide
1-4
<XL board specifications>
1) Remove the SL3061232TN and SL6040892TN, detach the COVER_FBL_XL.
2) In the same manner as described for the machine with the M and L board specifications,
loosen the COUPLING_Y_screw (do not remove the screw at this time) and disconnect the
connector of the SERVO MOTOR 1500W cable.
3) Remove the SM6082502TN and replace the SERVO MOTOR 1500W.
4) Reassemble the components in the reverse order of disassembly.
∗ The clearance between the COUPLING and motor is 8 mm.
The tightening torque of the COUPLING_X_screw is 3.4 N⋅m. (Figure 1-1-2-4)
Secure from the
back of the cover.
SL6040892TN
SL3061232TN (×2)
COVER_FBL_XL
SL3061232TN
(×2)
A
B
View of A View of B

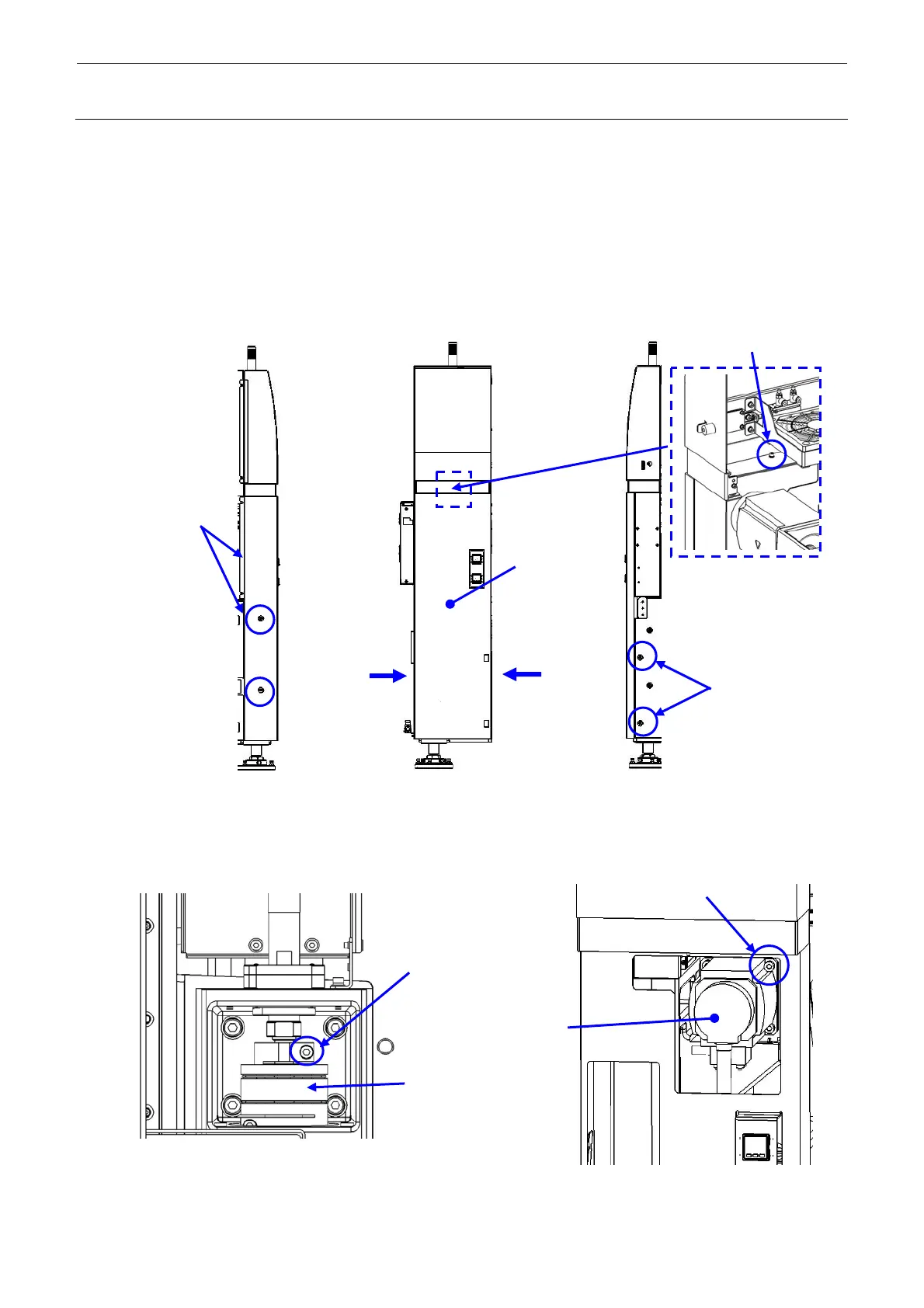

Figure 1-1-2-5 Removal of Cover of Machine with XL Board Specifications
SM6082502TN (×4)
SERVO MOTOR 1500W
COUPLING_Y
COUPLING_Y_screw
Figure 1-1-2-6
Figure 1-1-2-7
To Next Page
