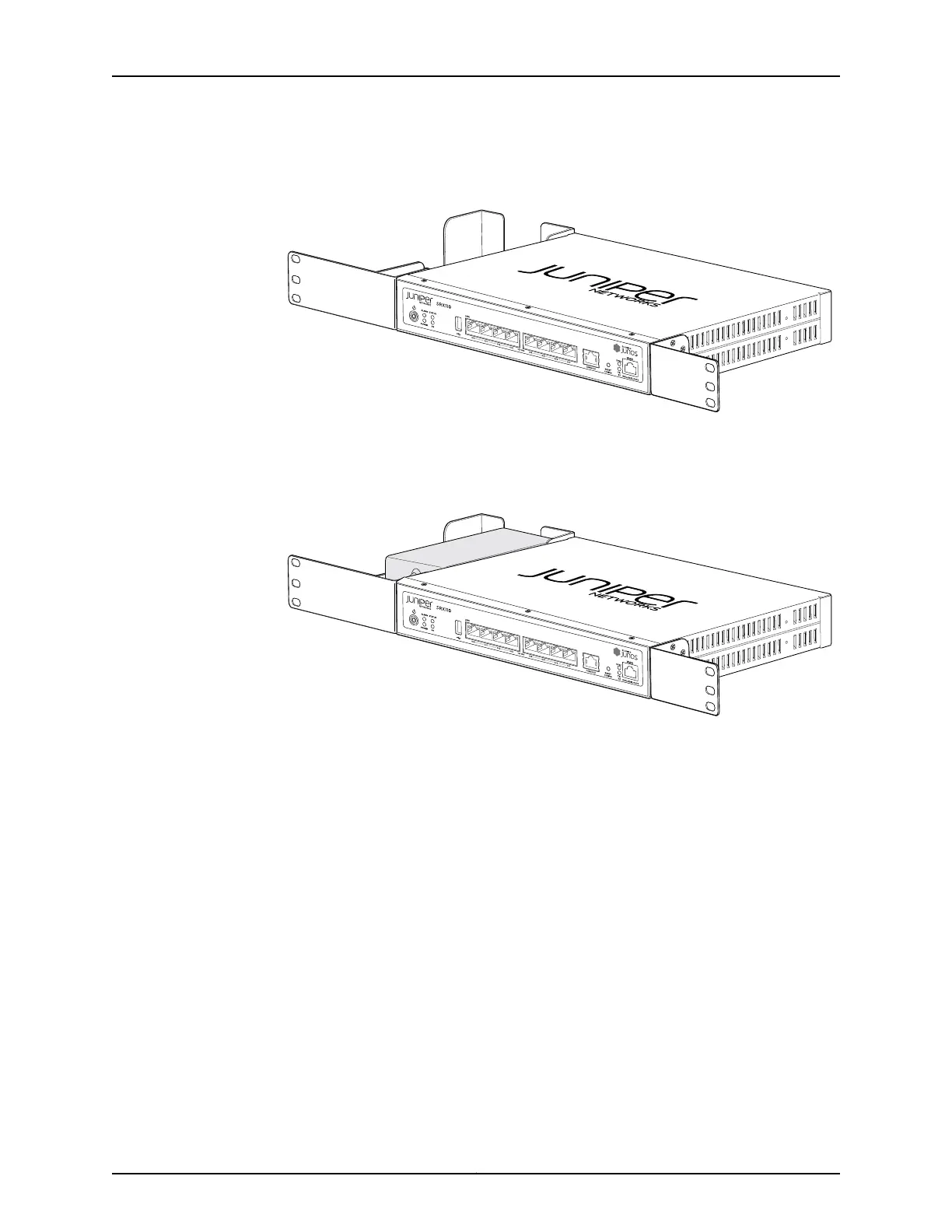

Figure 14: SRX110 Services Gateway Rack Installation — Securing Mounting
Brackets and Power Supply Adapter Tray
3. Place the power supply adapter in the tray as shown in Figure 15 on page 91.
Figure 15: SRX110 Services Gateway Rack Installation — Positioning Power
Supply Adapter Tray
4. Have one person grasp the sides of the device, lift it, and position it in the rack.
5. Align the bottom hole in each mounting bracket with a hole in each rack rail as shown
in Figure 16 on page 92, making sure that the chassis is level.
91Copyright © 2012, Juniper Networks, Inc.
Chapter 13: Installing the Services Gateway
