RJ-45 Connector Pinouts for the SRX110 Services Gateway Ethernet Port

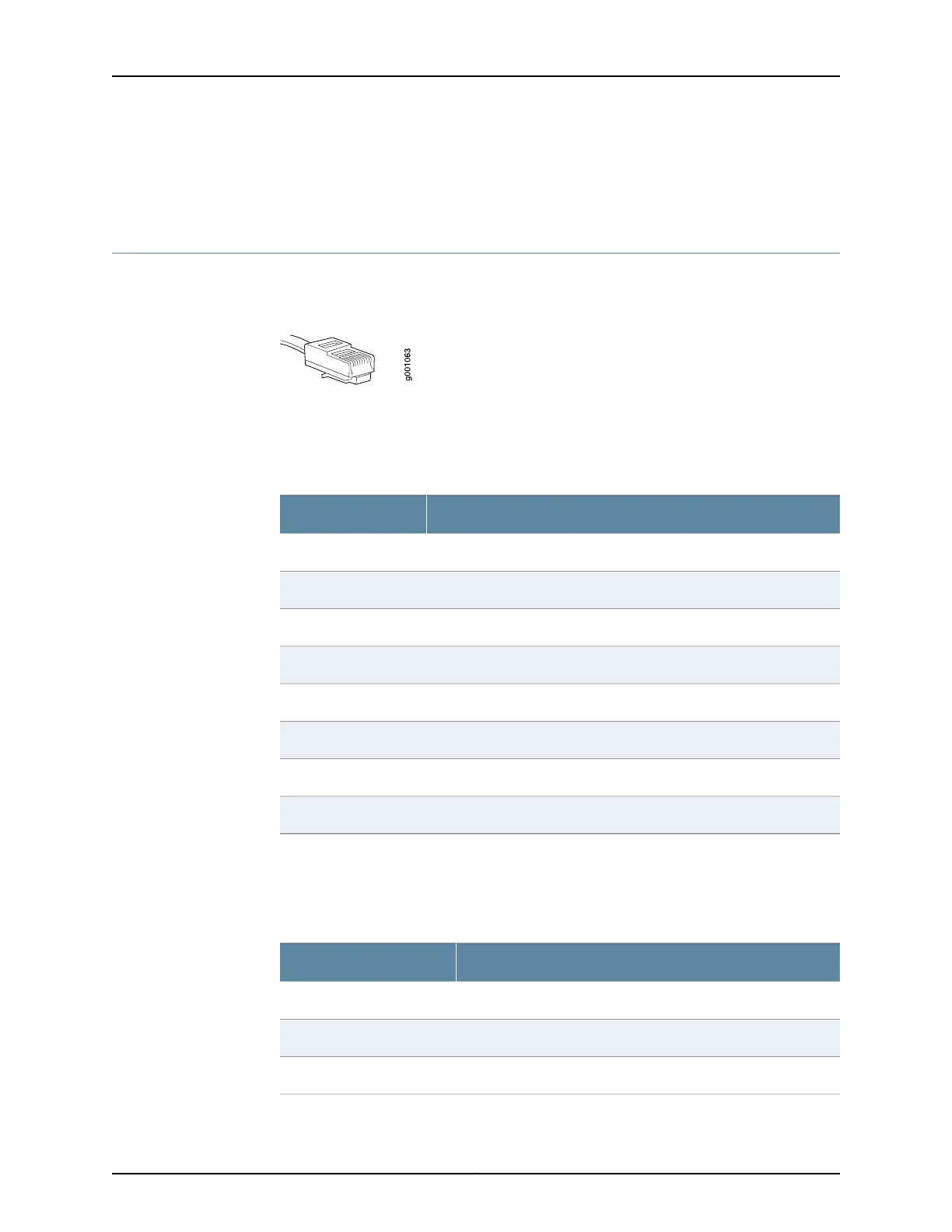

Figure 11 on page 72 shows the RJ-45 cable connector pinouts for Ethernet ports.
Figure 11: Ethernet Cable Connector (RJ-45)
Table 25 on page 72 describes the RJ-45 connector pinouts for the Ethernet port for
10/100 Mbps.
Table 25: RJ-45 Connector Pinouts for the Services Gateway Ethernet
Port (10/100 Mbps)
SignalPin
TX+1
TX-2
RX+3
Termination network4
Termination network5
RX-6
Termination network7
Termination network8
Table 26 on page 72 describes the RJ-45 connector pinouts for the Ethernet port for 1
Gbps (1000 Mbps).
Table 26: RJ-45 Connector Pinouts for the Services Gateway Ethernet
Port (1 Gbps)
SignalPin
BI_DA+1
BI_DA-2
BI_DB+3
Copyright © 2012, Juniper Networks, Inc.72
SRX110 Services Gateway Hardware
