To install the device on a wall:
1. Place the device on a flat, level surface, with the Juniper Networks logo facing up. The
logo is embossed on the top cover. Ensure that the rubber feet are attached to the
bottom of the chassis.
2. Position a mounting bracket on each side of the chassis as shown in Figure 20 on
page 96.

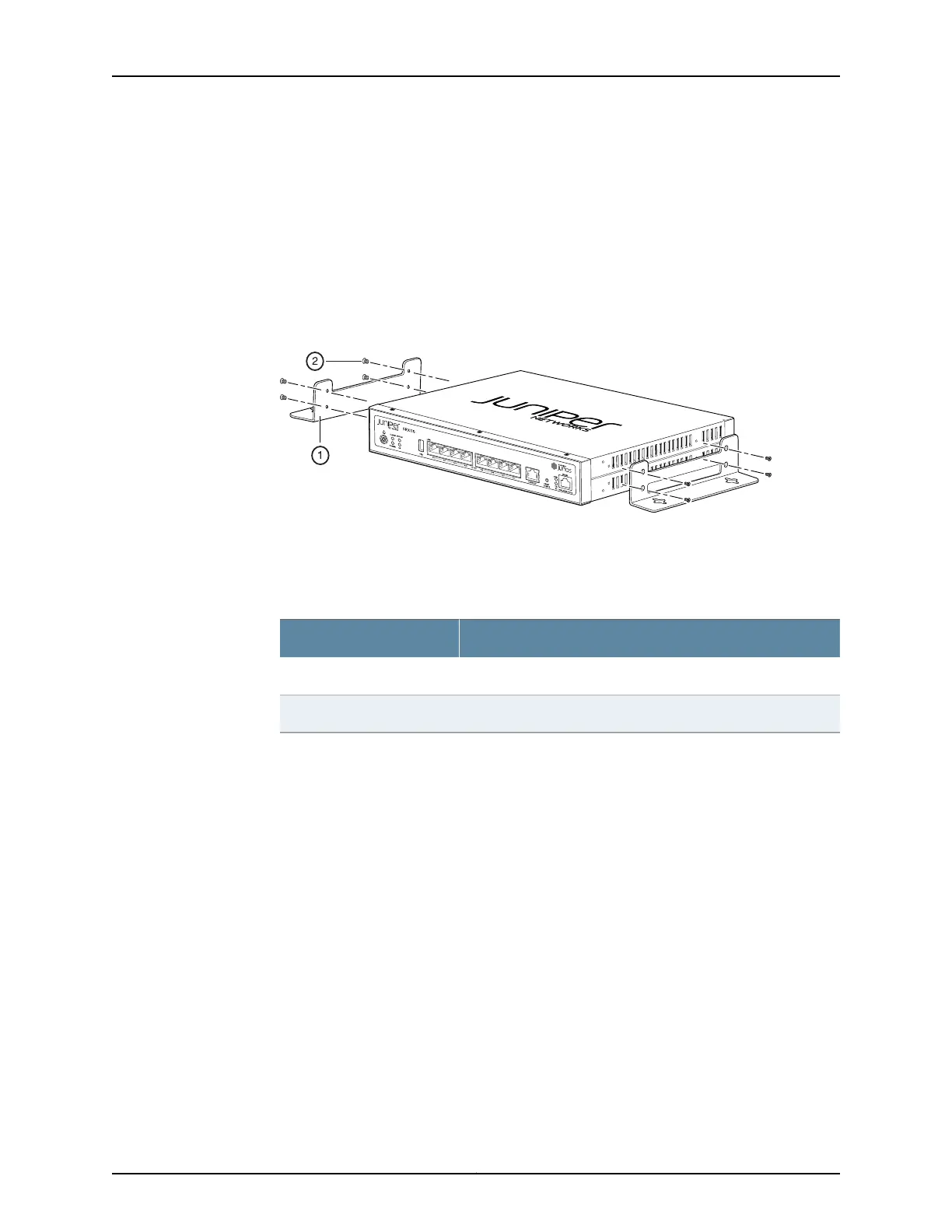

Figure 20: SRX110 Services Gateway Wall Installation — Attaching the
Mounting Brackets
Table 37 on page 96 lists the parts to use to install the SRX110 Services Gateway on
a wall. The numbers in Figure 20 on page 96 correspond to the numbers in Table 37
on page 96.
Table 37: SRX110 Services Gateway Wall Installation Parts
PartNumber
Mounting brackets1
Screws (mounting bracket)2
3. Use a Phillips (+) screwdriver, number 1, to install the screws that secure the mounting
brackets to the chassis.
4. If you are using wall anchors to support the chassis, install two pairs of anchors on
the wall.
5. Have one person grasp the sides of the device, lift it, and position it on the wall.
6. Have a second person install two pairs of mounting screws through the bracket holes
on either side of the device to secure it to the wall.
7. Verify that the mounting screws on one side are aligned with the mounting screws on
the opposite side and that the device is level (Figure 21 on page 97).
Copyright © 2012, Juniper Networks, Inc.96
SRX110 Services Gateway Hardware
