To connect the 3G USB modem on the USB modem extension cable-mount:
1. Place the USB mount on the USB mount base.
2. Insert a 3G USB modem in the USB mount slot.
3. Close the USB mount top cover on the USB mount.
4. Lock the USB modem protection cover.
Installing a 3G USB Modem on the Rear Side of the SRX110 Services Gateway
To install the 3G USB modem on the rear side of the SRX110 Services Gateway:
1. Before you begin, ensure that the device is powered off.
2. On the rear side of the device, insert the USB modem extension cable into the 3G-WAN
USB port until the cable is engaged (see Figure 23 on page 99).

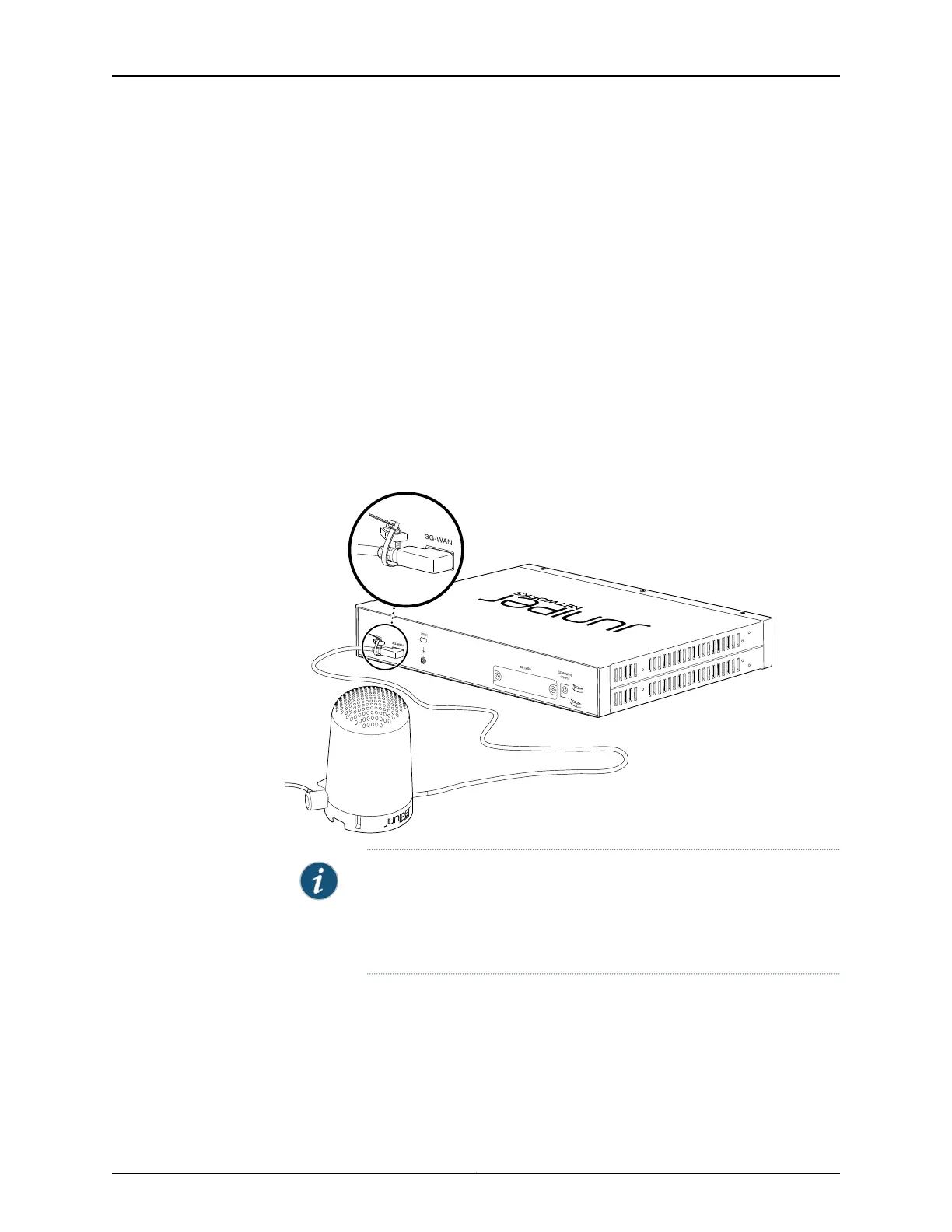

Figure 23: Connecting the 3G USB modem to the SRX110 Services Gateway
NOTE:
•
The 3G USB modem is not hot-swappable.
•
Ensure that the base of the 3G USB extension of the cable mount is 18
inches away from the device.
3. Power on the device. The 3G LED on the front panel of the device indicates the status
of the 3G USB modem interface.
99Copyright © 2012, Juniper Networks, Inc.
Chapter 13: Installing the Services Gateway
