Before making copies
2
2 Before making copies

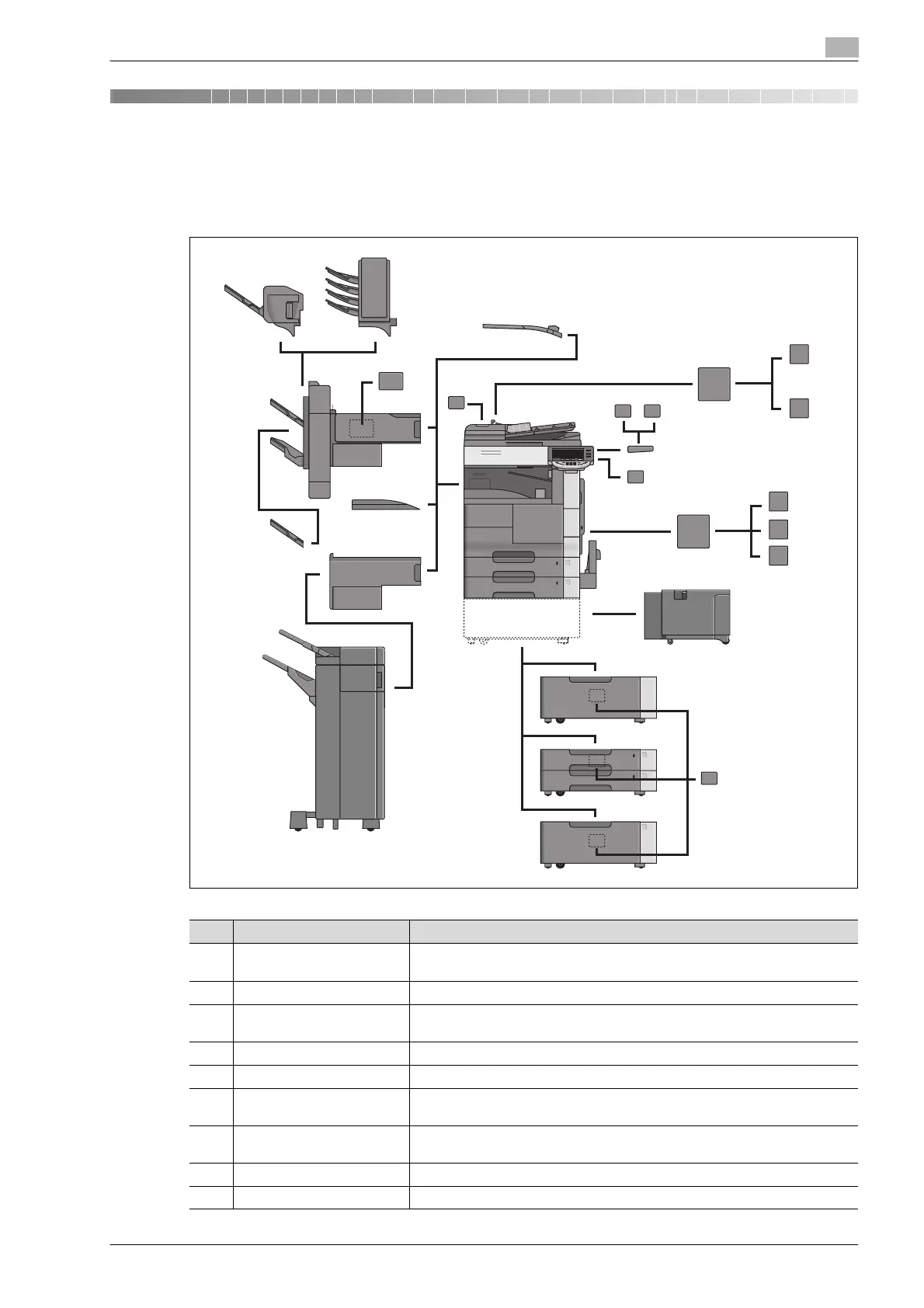

2.1 Machine configuration
2.1.1 Options
1
2
23 24
3
4
19
20
29
18
25 - 27
22
5
6
7
8
21
10
9
13
16
14 15
12
28
17
11
No. Name Description
1 Main unit Consists of a scanner, a printer, an ADF, and paper feeders (2 trays and 1 by-
pass tray).
2 Mount kit MK-708 Used to install the Fax kit.
3 Multiple line expansion kit
ML-503
Used to expand the telephone line for exclusive use of facsimile.
4 Fax kit FK-502 Allows this machine to be used as a fax machine.
5 Large capacity unit LU-203 Can be loaded with up to 2,000 sheets of paper (80 g/m
2
).
6 Desk DK-506 Set up on the floor, allowing the machine to be positioned on top. Can store
copying material.
7 Paper feed cabinet PC-206 Consists of 2 trays, each of which can be loaded with up to 500 sheets of pa-
per (80 g/m
2
).
8 Paper feed cabinet PC-407 Can be loaded with up to 2,500 sheets of paper (80 g/m
2
).
9 Relay unit RU-507 Relays paper between the main unit and finisher FS-523.
To Next Page
