bizhub 501/421/361 (Version 2) 3-9
Basic copy operations
3
3.3.2 Placing the original on the original glass
0 For details on the types of originals that can be placed on the original glass, refer to "Originals" on
page 7-22.
0 When placing the original on the original glass, be sure to lift open the ADF at least 20°.
If the original is placed on the original glass without the ADF being lifted at least 20°, the correct original
size may not be detected.
0 Do not place objects weighing more than 6.8 kg on the original glass. In addition, do not press down
extremely hard on a book spread on the original glass, otherwise the original glass may be damaged.
0 For thick books or large objects, make the copy without closing the ADF. When an original is being
scanned with the ADF open, do not look directly at the light that may shine through the original glass.
Although the light that shines through the original glass is bright, it is not a laser beam and, therefore,
is not as dangerous.

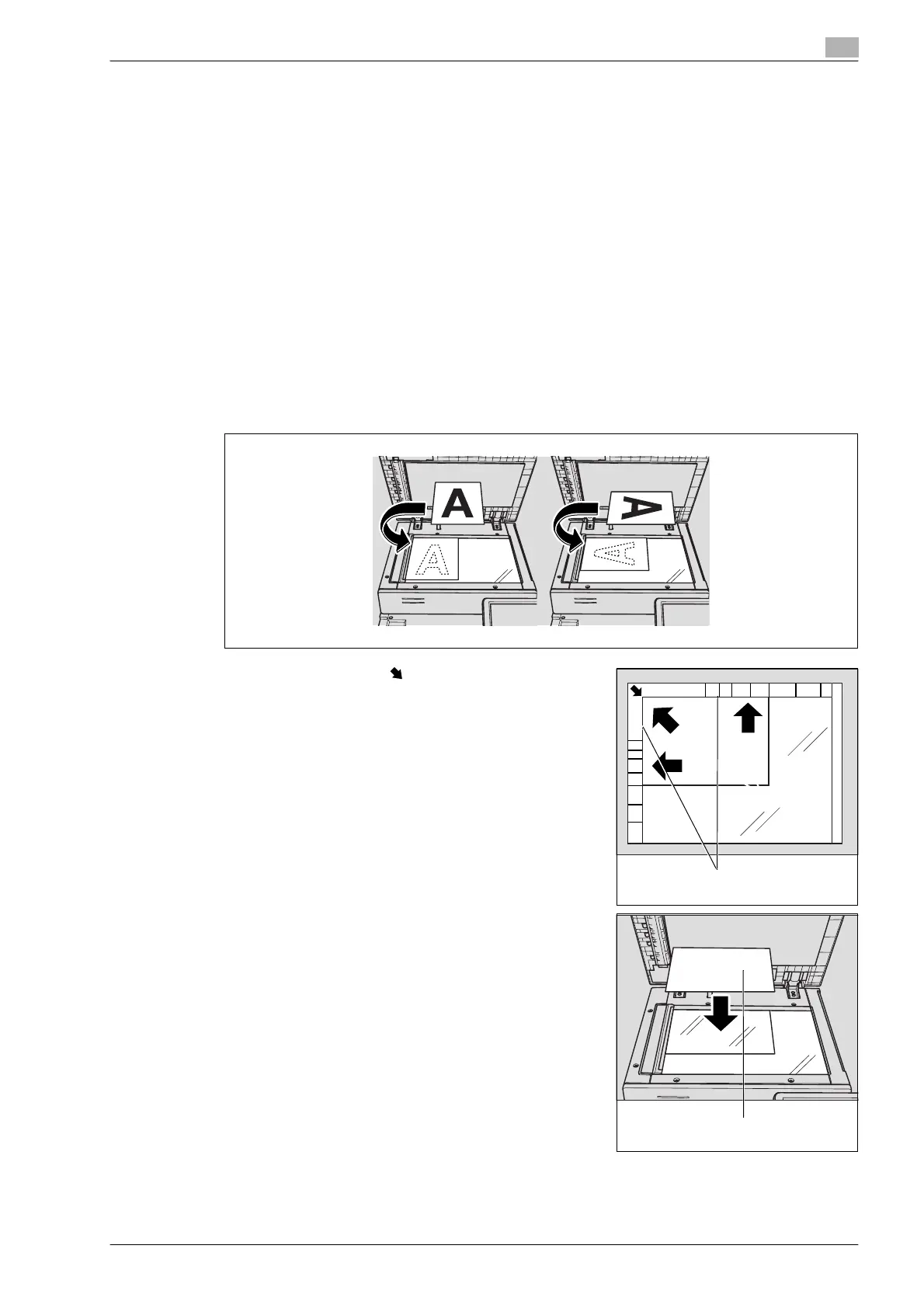

1 Lift open the ADF or the original cover.
2 Place the original face down on the original glass.
– Load the original pages so that the top of the original is toward the back or the left side of the
machine.
3 Align the original with the mark in the back-left corner of
the original scales.
– For details on selecting the original orientation, refer to
"Selecting the original orientation
(Original direction settings)" on page 3-25.
– For details on specifying the binding margin position, refer
to "Selecting the position of the binding margin (Binding
position settings)" on page 3-28.
– For transparent or translucent originals, place a blank
sheet of paper of the same size as the original over the
original.
Original scales
Blank sheet of paper
