2.1.5 Large capacity unit LU-203
2
Reminder
Do not climb on, or place objects on this unit to prevent any damage.
3
2
1
4

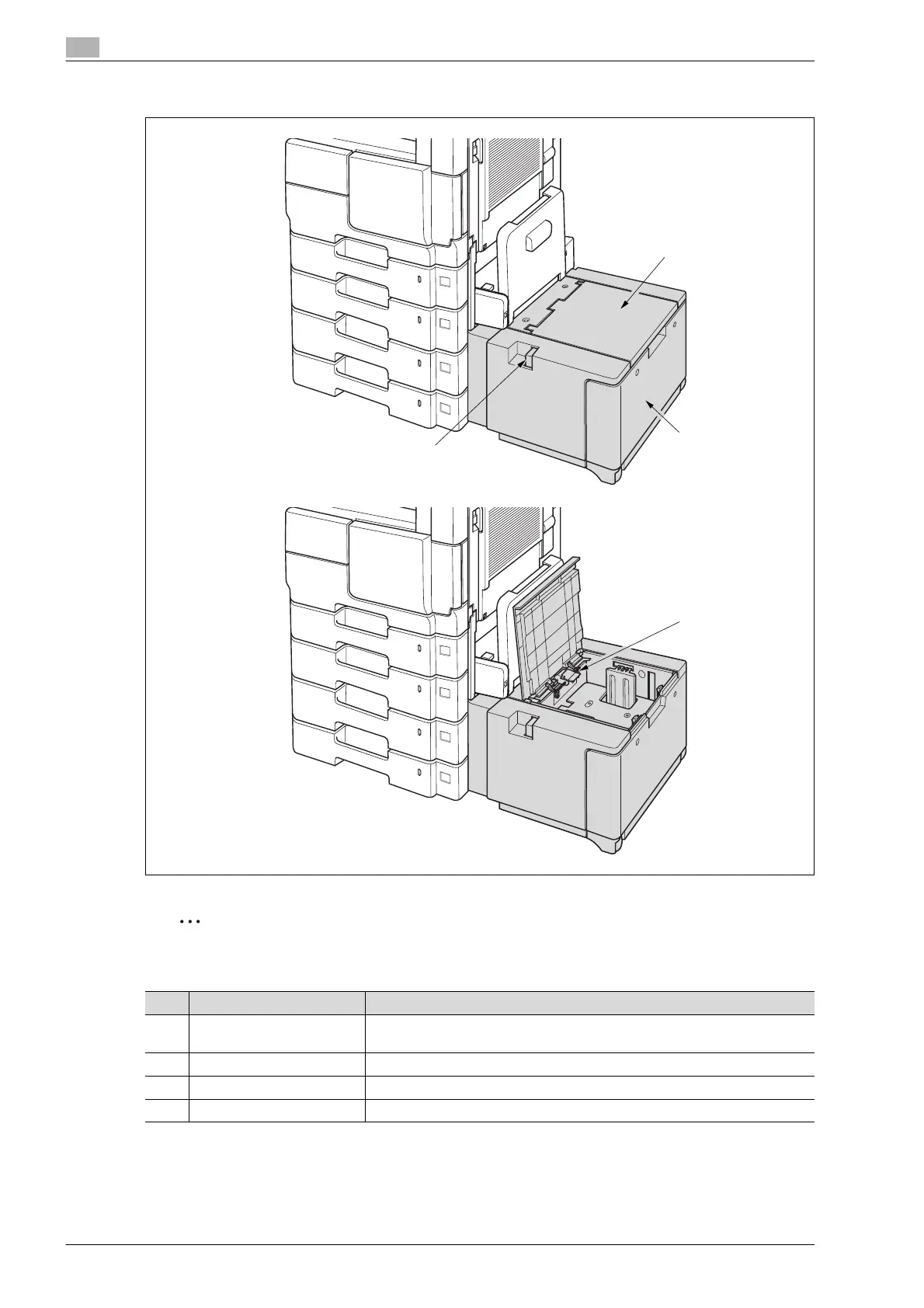

No. Part name Description
1 Large capacity unit The large capacity unit which can be used for A4 paper only. A maximum of
2,000 sheets of plain paper (80 g/m
2
) can be loaded.
2 Upper door Opened when loading paper or clearing paper misfeeds.
3 Lock release lever Held to slide the large capacity unit to the right when clearing paper misfeeds.
4 Paper take-up roller Feeds one sheet of paper at a time into the main unit.
