bizhub 501/421/361 (Version 2) 2-9
Before making copies
2

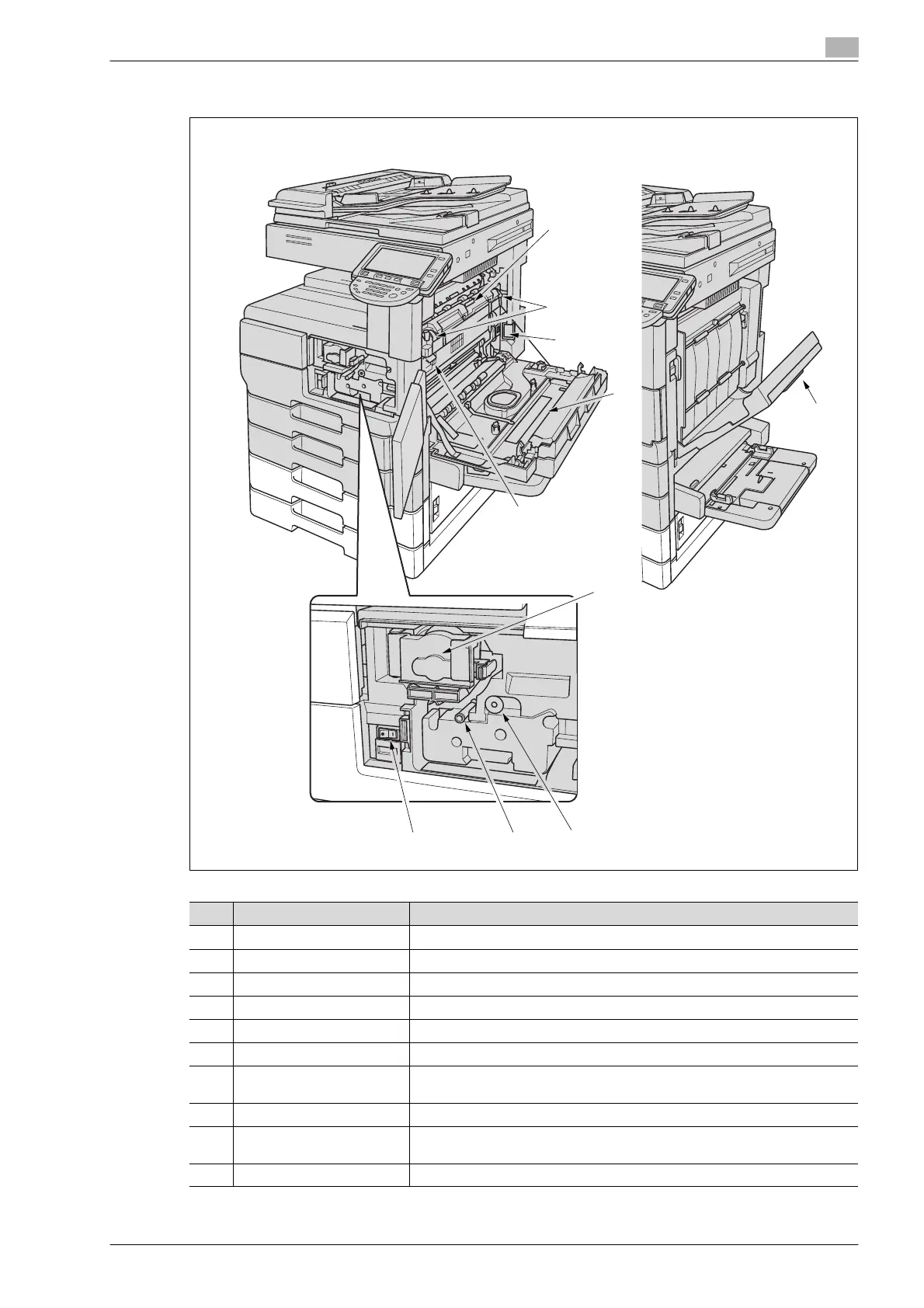

2.1.3 Internal
1
5
7
8910
6
3
4
2
No. Name Description
1 Fusing guide lever Held to open the fusing guide cover when clearing paper misfeeds.
2 Envelope lever Pulled up when printing on envelope.
3 Ozone filter Collects the ozone generated in the machine.
4 Switchback unit Built into the printer to turn over the paper during double-sided printing.
5 Automatic duplex unit door Held to open the Automatic duplex unit when clearing paper misfeeds.
6 Conveyance unit lever Held to open the Conveyance unit when clearing paper misfeeds.
7 Toner cartridge cover Opened to pull out the toner cartridge holder when replacing the toner car-
tridge.
8 Corona wire cleaning lever Pull out when cleaning the corona wire.
9 Writing unit glass cleaning
lever
Pull out when cleaning the writing unit glass.
10 Main power switch Used for turning on/off the machine.
To Next Page
