1-S19
L2800, L3400, WSM
ENGINE
[2] PREPARATION
(1) Separating Engine and Clutch Housing

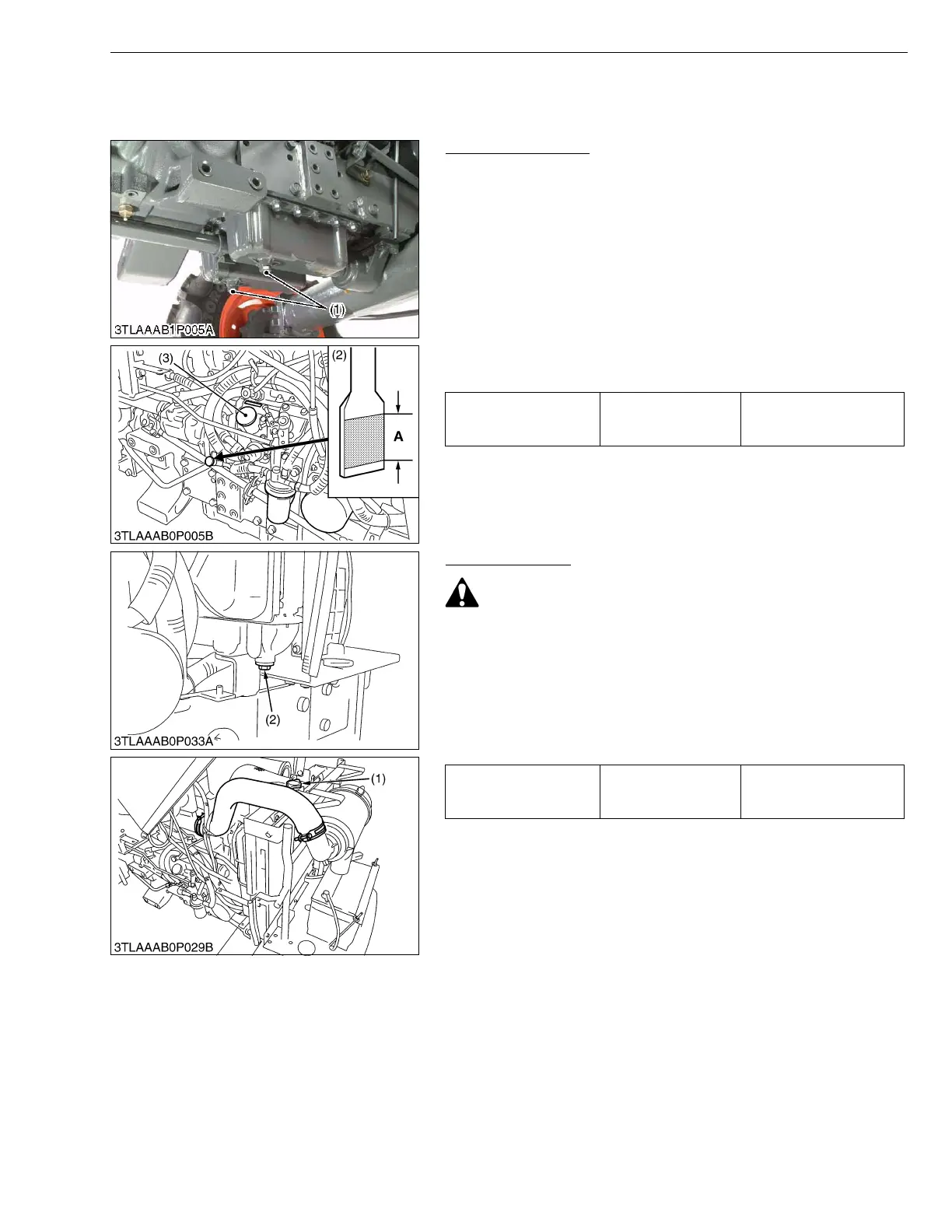

Draining Engine Oil
1. Start and warm up the engine for approx. 5 minutes.
2. Place an oil pan underneath the engine.
3. Remove the drain plugs (1) to drain oil.
4. Screw in the drain plugs (1).
(When refilling)
• Fill the engine oil up to the upper line on the dipstick (2).
• Never mix two different types of oil.
• Use the proper SAE Engine Oil according to ambient
temperatures.
Refer to "LUBRICANTS, FUEL AND COOLANT". (See page
G-7.
W1050040
Draining Coolant
CAUTION
• Never remove the radiator cap until coolant temperature is
well below its boiling point. Then loosen cap slightly to the
stop to relieve any excess pressure before removing cap
completely.
1. Stop the engine and let cool down.
2. Loosen the drain plug (2) to drain the coolant.
3. Remove the radiator cap (1) to completely drain the coolant.
4. After all coolant is drained, retighten the drain plug (2).
W1048932
Engine oil Capacity
6.0 L
5.7 U.S.qts
5.0 Imp.qts
(1) Drain Plug
(2) Dipstick
(3) Oil Inlet Plug
A : Oil level is acceptable within this
range.
Coolant
Capacity
(with recovery tank)
6.0 L
6.3 U.S.qts
5.3 Imp.qts
(1) Radiator Cap (2) Drain Plug
