G-32
L2800, L3400, WSM
G GENERAL

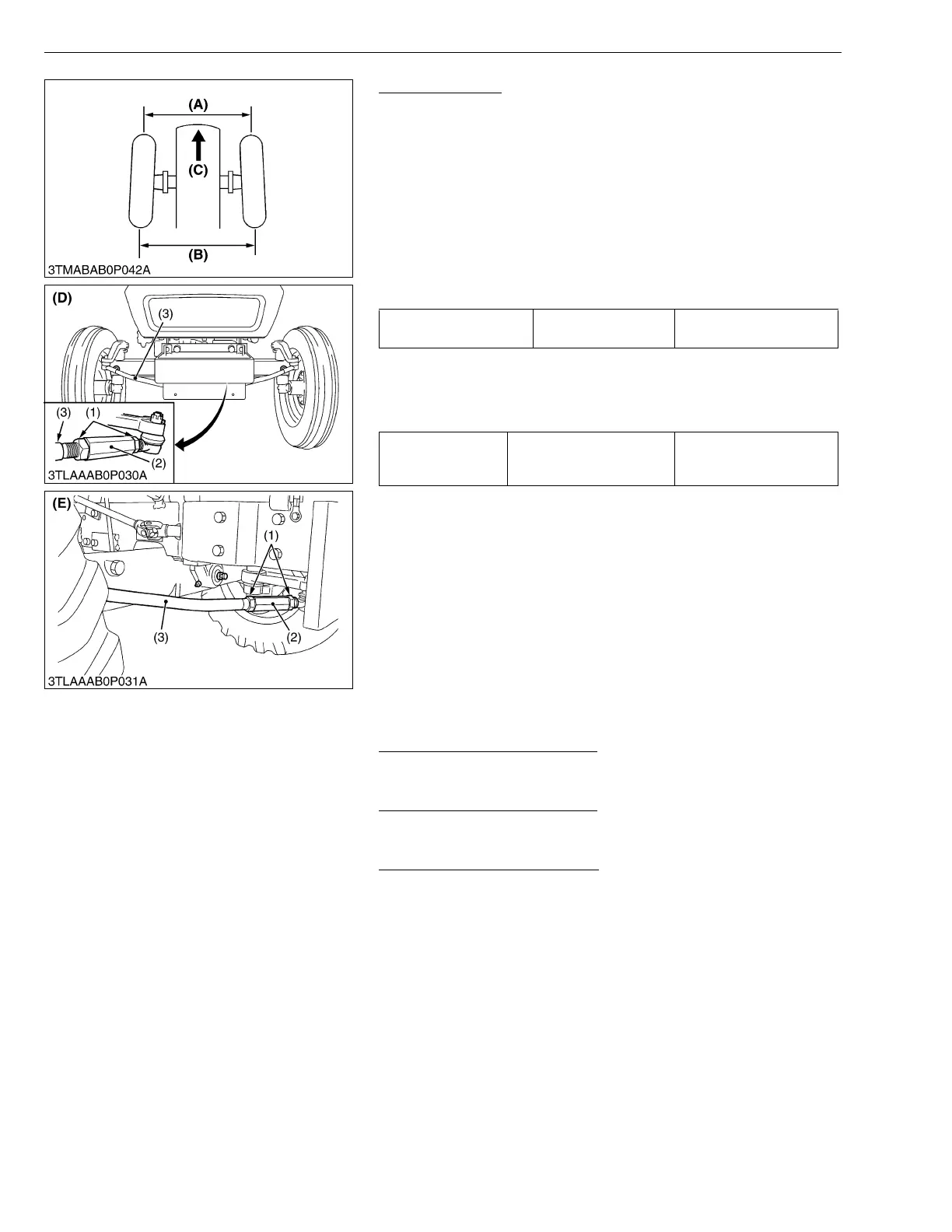

Adjusting Toe-in
1. Park the tractor on the flat place.
2. Inflate the tires to the specified pressure.
3. Turn steering wheel so front wheels are in the straight ahead
position.
4. Lower the implement, lock the parking brake and stop the engine.
5. Measure distance between tire beads at front of tire, hub height.
6. Measure distance between tire beads at rear of tire, hub height.
7. Front distance should be 2 to 8 mm (0.079 to 0.315 in.) less than
rear distance.
8. If the measurement is not within the factory specifications, adjust
by changing the tie-rod length.
â– Adjusting
1. Loosen the lock nut (1) and turn the turnbuckle (2) to adjust the
tie-rod length until the proper toe-in measurement is obtained.
2. Retighten the tie-rod lock nut (1).
IMPORTANT
• A right and left tie-rod joint is adjusted to the same length.
W1035017
[6] CHECK POINTS OF EVERY 400 HOURS
Changing Transmission Fluid
1. See page G-15, 16.
W1036512
Replacing Fuel Filter Element
1. See page G-26.
W1055417
Changing Front Axle Case Oil
1. See page G-19.
W1036559
Toe-in ((B) - (A)) Factory spec.
2 to 8 mm
0.08 to 0.32 in.
Tightening torque Tie-rod lock nut
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123 to 145 ft-lbs
(1) Lock Nut
(2) Turnbuckle
(3) Tie-rod
(A) Wheel to Wheel Distance at front
(B) Wheel to Wheel Distance at rear
(C) Front
(D) 2WD
(E) 4WD
