7-S4
L2800, L3400, WSM
STEERING
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING

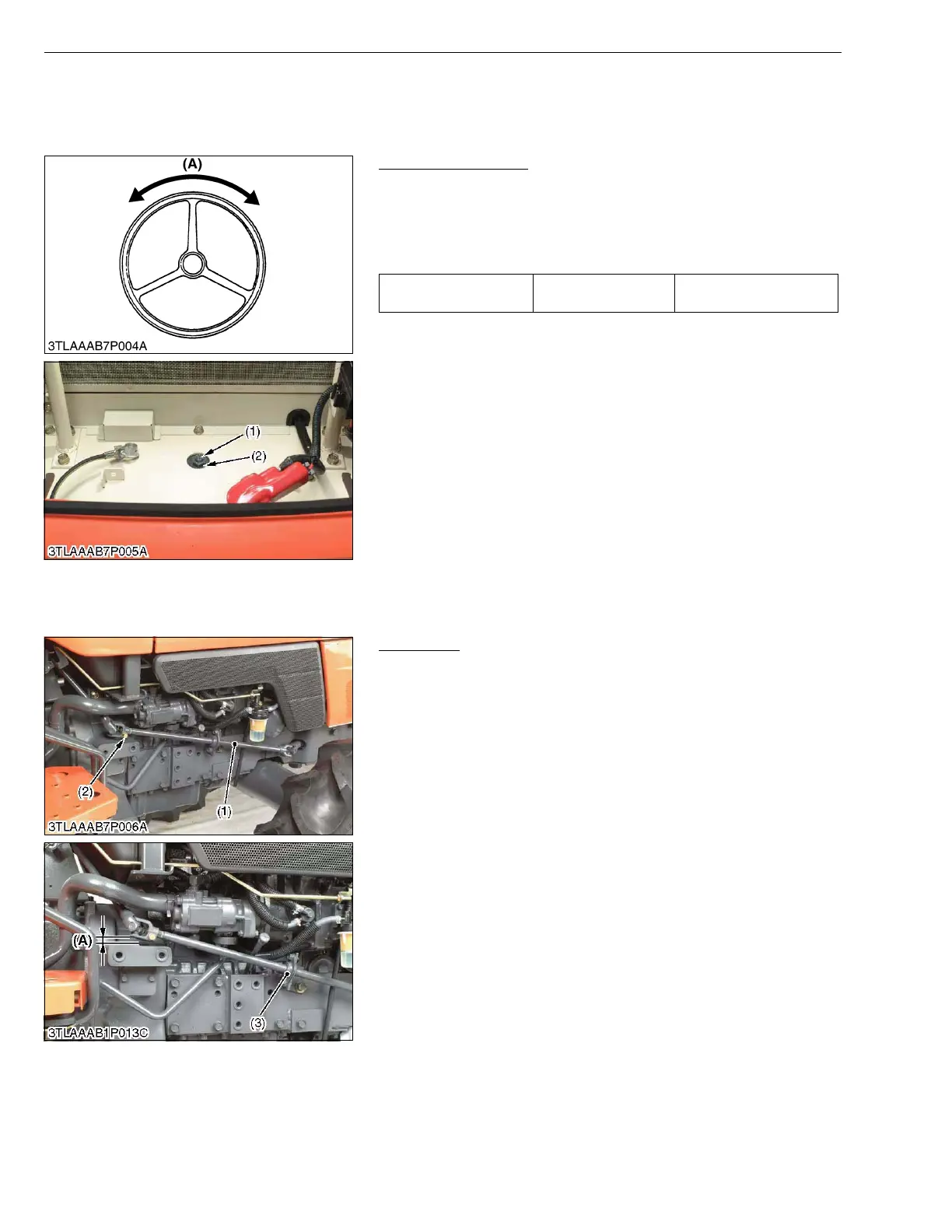

Steering Wheel Play
1. Turn the front wheels straight ahead.
2. Rotate the steering wheel lightly by hand, and measure the play
(A).
3. If the play (A) is not within the factory specifications, turn the
adjusting screw (1) to adjust.
(Adjusting)
• Remove the battery.
• Loosen the lock nut (2) and turn the adjusting screw (1) with a
screwdriver to adjust the play (A).
When the adjusting screw (1) is turned clockwise, the play (A)
decreases.
• After adjustment, fix it with lock nut (2) while holding the adjusting
screw (1).
W1019889
[2] PREPARATION
(1) Separating Steering Gear Box
Joint Shaft
1. Remove the support (3) mounting screw.
2. Remove the screw (2).
3. Remove the joint shaft (1).
(When reassembling)
• Lift the universal joint so that there should be a clearance (A) of
more than 5 mm (0.19 in.) between the universal joint and
flywheel housing. Then fit the support (3) is position..
W1020253
Steering wheel play (A) Factory spec.
20 to 50 mm
0.79 to 1.97 in.
(1) Adjusting Screw
(2) Lock Nut
(A) Play
(1) Joint Shaft
(2) Screw
(3) Support
(A) Clearance
