G-57
L2800, L3400, WSM
G GENERAL
(2) Rear Wheels
Rear tread can be adjusted in 6 steps depending on the model.
To change the tread
1. Lift the rear tires off the ground.

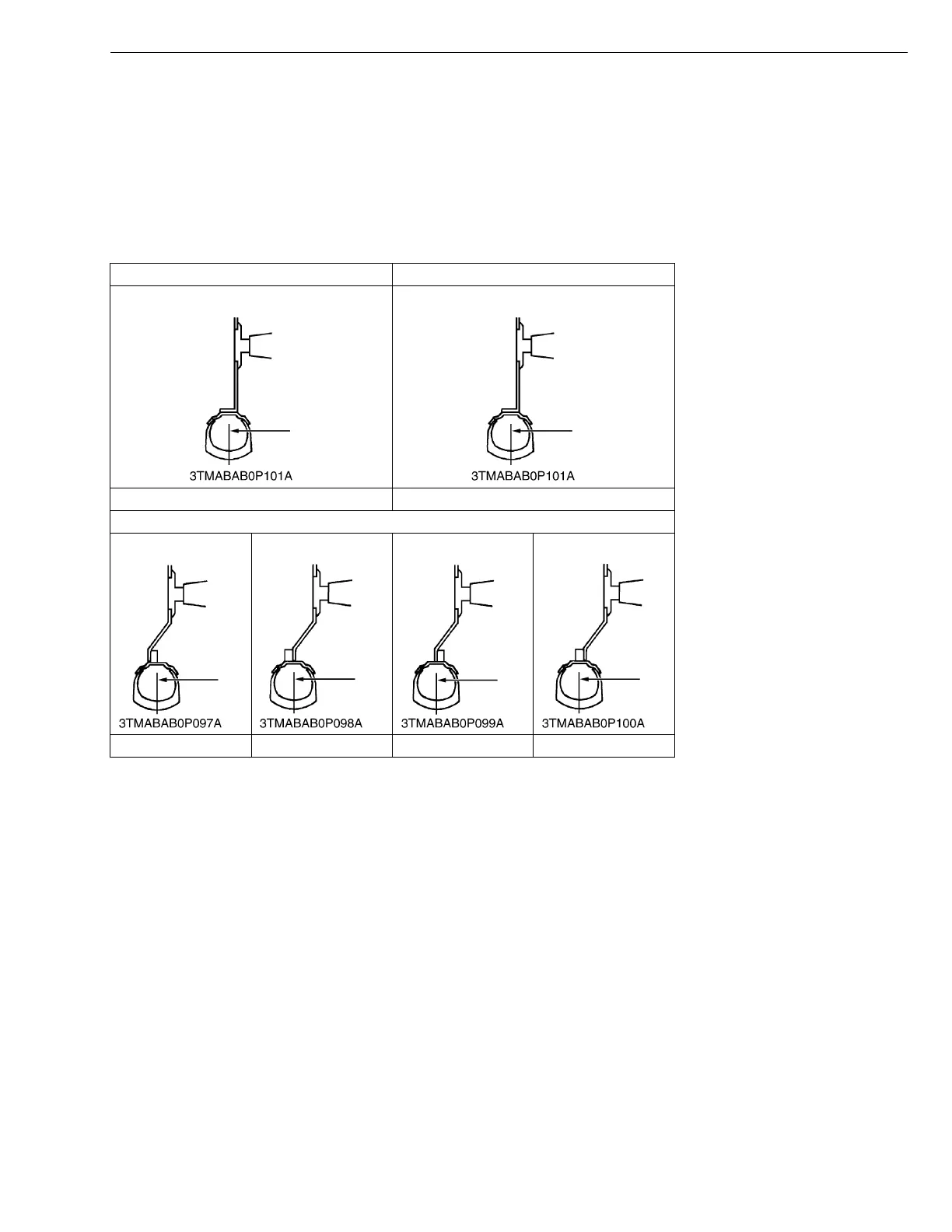

2. Follow the illustrations below to get the desired tread width.
• If not attached as illustrated, transmission parts may be damaged.
• When re-fitting or adjusting a wheel, tighten the bolts to the specified torques then recheck after driving
the tractor 200 m (200 yards) and thereafter according to service interval.
W1052721
15-19.5 Industry 13.6-16 Turf
1145 mm (45.1 in.) 1115 mm (43.9 in.)
11.2-24 Farm
1020 mm (40.2 in.) 1115 mm (43.8 in.) 1195 mm (47.1 in.) 1290 mm (50.8 in.)
