Kubota L2800 Workshop Manual

9-S19
L2800, L3400, WSM
ELECTRICAL SYSTEM
(10) Lighting Switch
Head Light Switch Continuity when Setting Switch at OFF
Position
1. Disconnect the connector 8P from the combination switch.
2. Set the light switch to the OFF position.
3. Measure the resistance with an ohmmeter across the B1 terminal
to the T terminal, the B1 terminal to the 1 terminal and the B1
terminal to the 2 terminal.
4. If infinity is not indicated, renew the switch.
W1050507
Head Light Switch Continuity when Setting Switch at ON1
Position
1. Measure the resistance with an ohmmeter across the B1 terminal
to the T terminal and the B1 terminal to the 1 terminal.
2. If 0 ohm is not indicated, renew the head light switch.
W1052500
Head Light Switch Continuity when Setting Switch at ON2
Position
1. Measure the resistance with an ohmmeter across the B1 terminal
to the T terminal and the B1 terminal to the 2 terminal.
2. If 0 ohm is not indicated, renew the head light switch.
W1053324
Resistance (Switch
at OFF position)
B1 terminal - T terminal
InfinityB1 terminal - 1 terminal
B1 terminal - 2 terminal

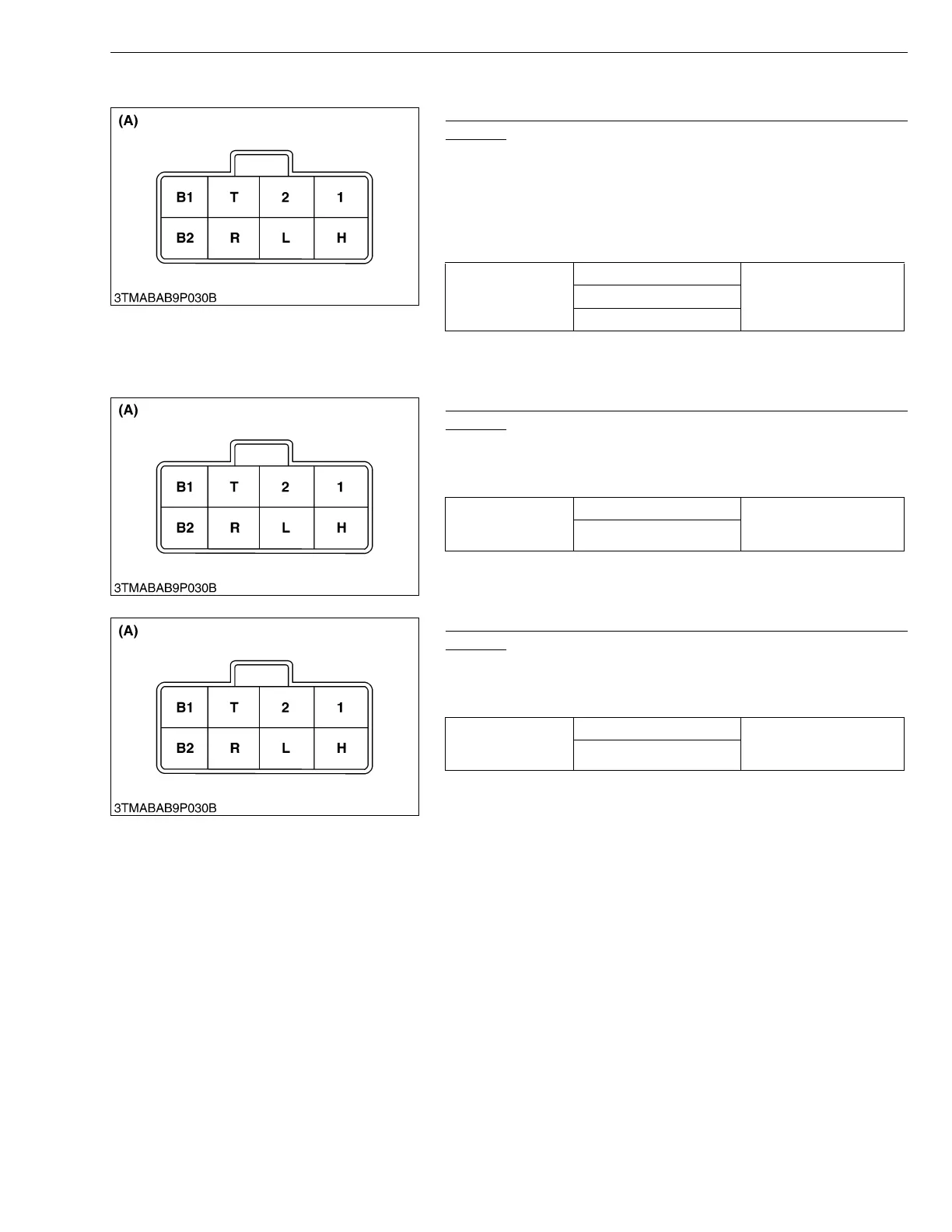

(A) Combination Switch Side
Connector 8P
Resistance (Switch
at HI-BEAM
position)
B1 terminal - T terminal
0 Ω
B1 terminal - 1 terminal
(A) Combination Switch Side
Connector 8P
Resistance (Switch
at LO-BEAM
position)
B1 terminal - T terminal
0 Ω
B1 terminal - 2 terminal
(A) Combination Switch Side
Connector 8P
KiSC issued 08, 2007 A
