3-S26
L2800, L3400, WSM
TRANSMISSION (MANUAL TYPE)

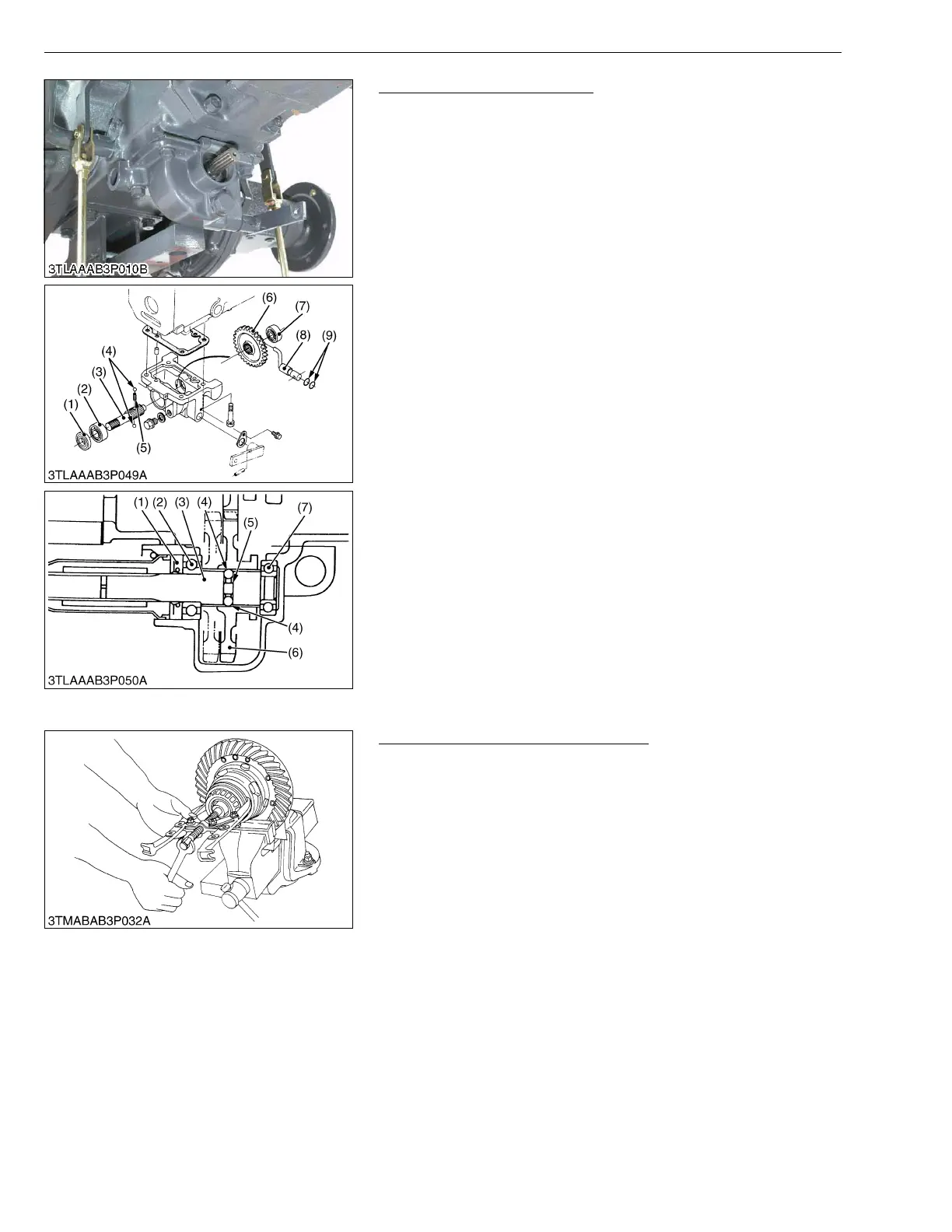

Front Drive Case (4WD Type)
1. Remove the front drive case.
2. Remove the oil seal (1).
3. Tap out the propeller shaft 1 (3) to the front.
4. Take out the shift gear (6).
(When reassembling)
• Replace the oil seal (1) with new one and apply grease to its
inside.
• Apply liquid gasket (Three Bond 1208D, 1141 or equivalent) to
both faces of the gasket that is to be installed between the front
drive case and the transmission case.
W1040163
(4) Disassembling Differential Gear Assembly (L3400)
Bearing and Differential Lock Shifter
1. Secure the differential gear in a vise.
2. Remove the differential lock shifter and taper roller bearing as a
unit with a puller.
W1043145
(1) Oil Seal
(2) Ball Bearing
(3) Propeller Shaft 1
(4) Ball
(5) Spring
(6) Shift Gear
(7) Ball Bearing
(8) Shift Lever
(9) O-ring
Tractor Manuals Scotland - Please Do Not Copy
