Kubota L2800 Workshop Manual

9-S16
L2800, L3400, WSM
ELECTRICAL SYSTEM
Glow Relay
1. Turn the main switch off.
2. Disconnect the 4P connector from glow relay.
3. Measure the voltage across the terminal 3 (Positive) and chassis
(Negative).
4. If the voltage differs from the battery voltage, the wiring harness
is faulty.
5. Turn the main switch on.
6. Measure the voltage across the terminal 1 (Positive) and chassis
(Negative).
7. If the voltage differs from the battery voltage, the wiring harness
is faulty.
W1056501
(8) Charging System
Alternator
1. Disconnect the 2P connector (3) from alternator after turning the
main switch OFF.
2. Perform the following checkings.
W1027725

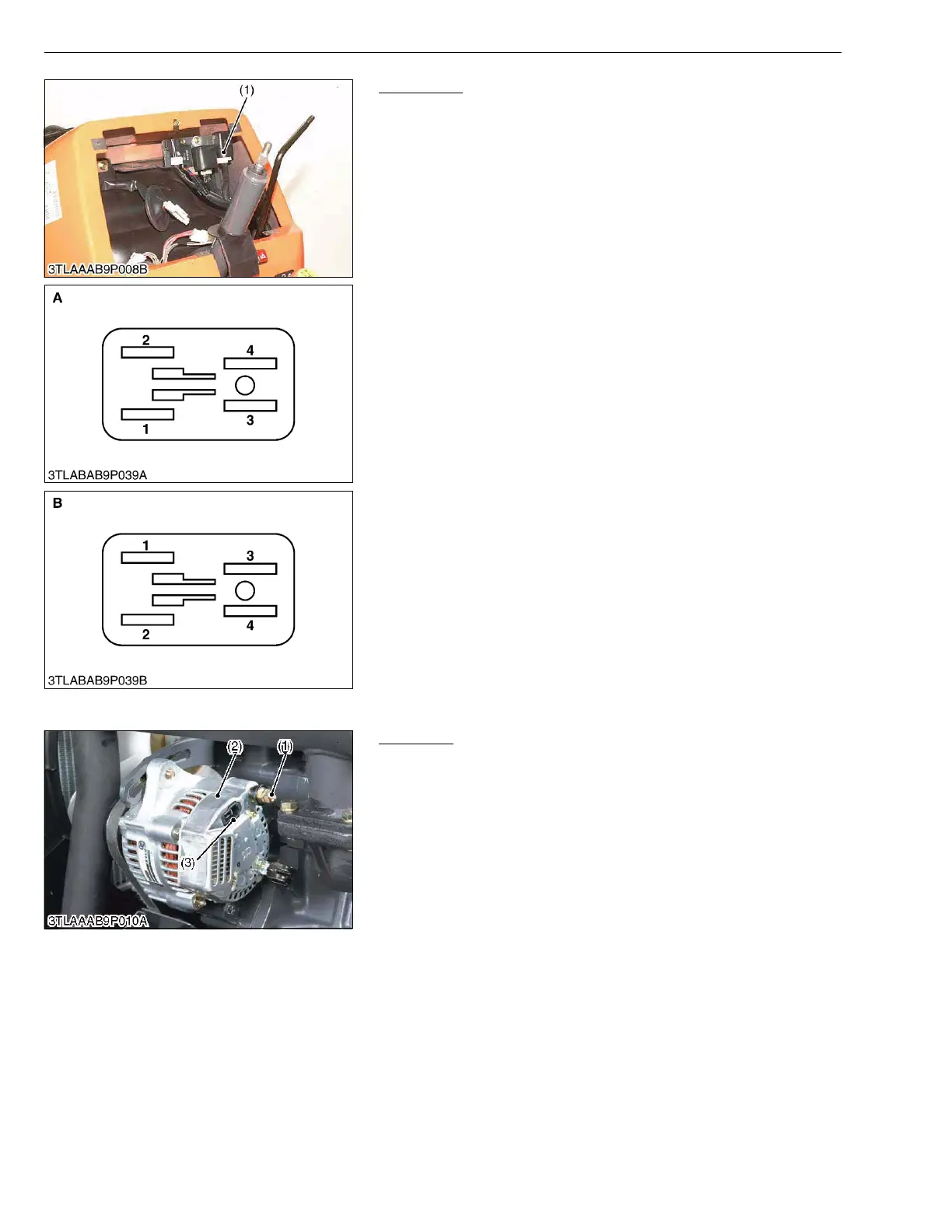

(1) Glow Relay A : Connector of Wire Harness Side
B : Conector of Flow Relay
(1) B Terminal
(2) Alternator
(3) 2P Connector
