1-S59
L2800, L3400, WSM
ENGINE
(5) Cylinder
Cylinder Wear

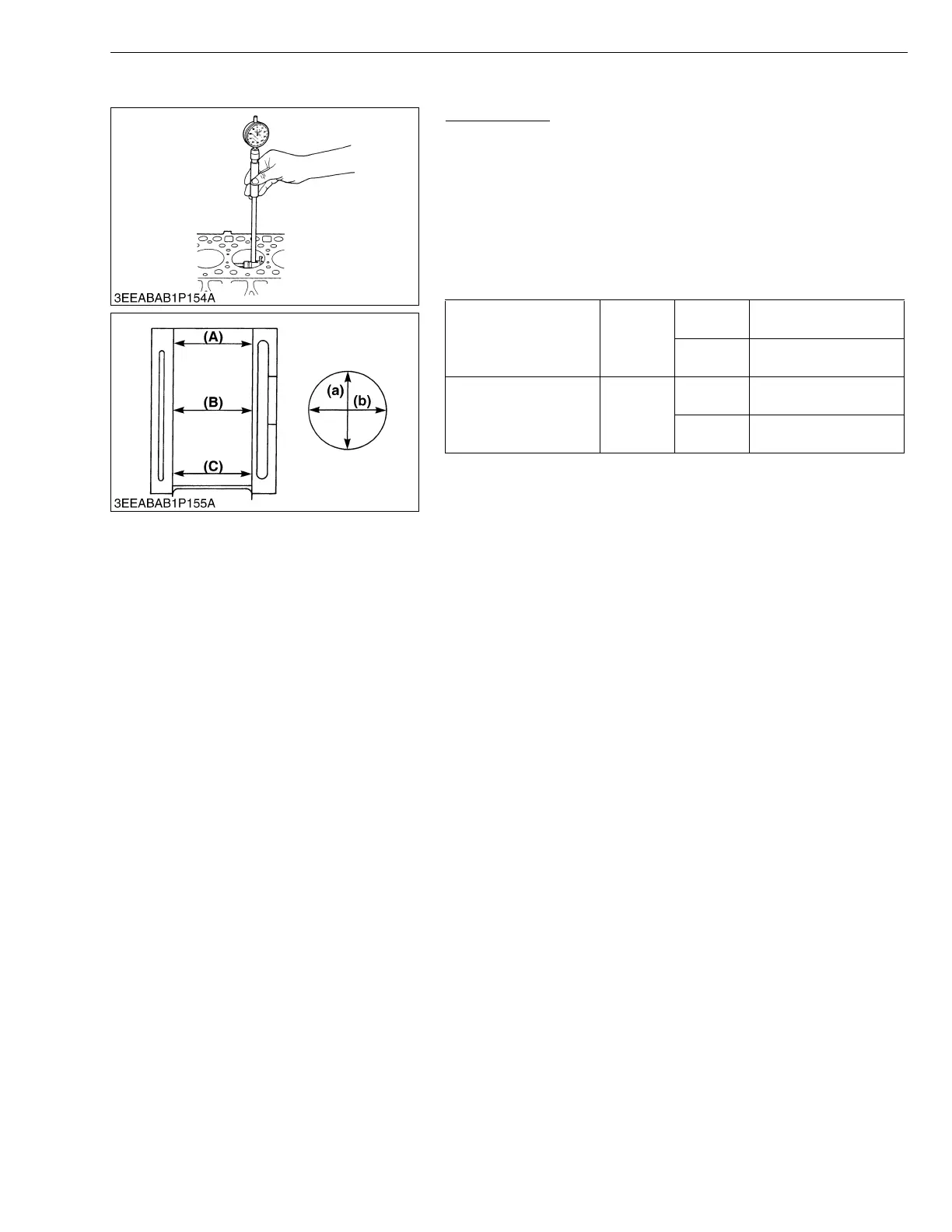

1. Measure the I.D. of the cylinder at the six positions (see figure)
with a cylinder gauge to find the maximum and minimum I.D.’s.
2. Get the difference (Maximum wear) between the maximum and
the minimum I.D.’s.
3. If the wear exceeds the allowable limit, bore and hone to the
oversize dimension. (Refer to “Correcting Cylinder”.)
4. Visually check the cylinder wall for scratches. If deep scratches
are found, the cylinder should be bores. (Refer to “Correcting
Cylinder”.)
W1034389
Cylinder I.D.
Factory
spec.
D1403-M
80.000 to 80.019 mm
3.14967 to 3.15042 in.
D1703-M
87.000 to 87.022 mm
3.42519 to 3.42606 in.
Maximum wear
Allowable
limit
D1403-M
+0.15 mm
+0.0059 in.
D1703-M
+0.15 mm
+0.0059 in.
A : Top
B : Middle
C : Bottom (Skirt)
(a) Right-angled to Piston Pin
(b) Piston Pin Direction
