3-S14
L2800, L3400, WSM
TRANSMISSION (MANUAL TYPE)

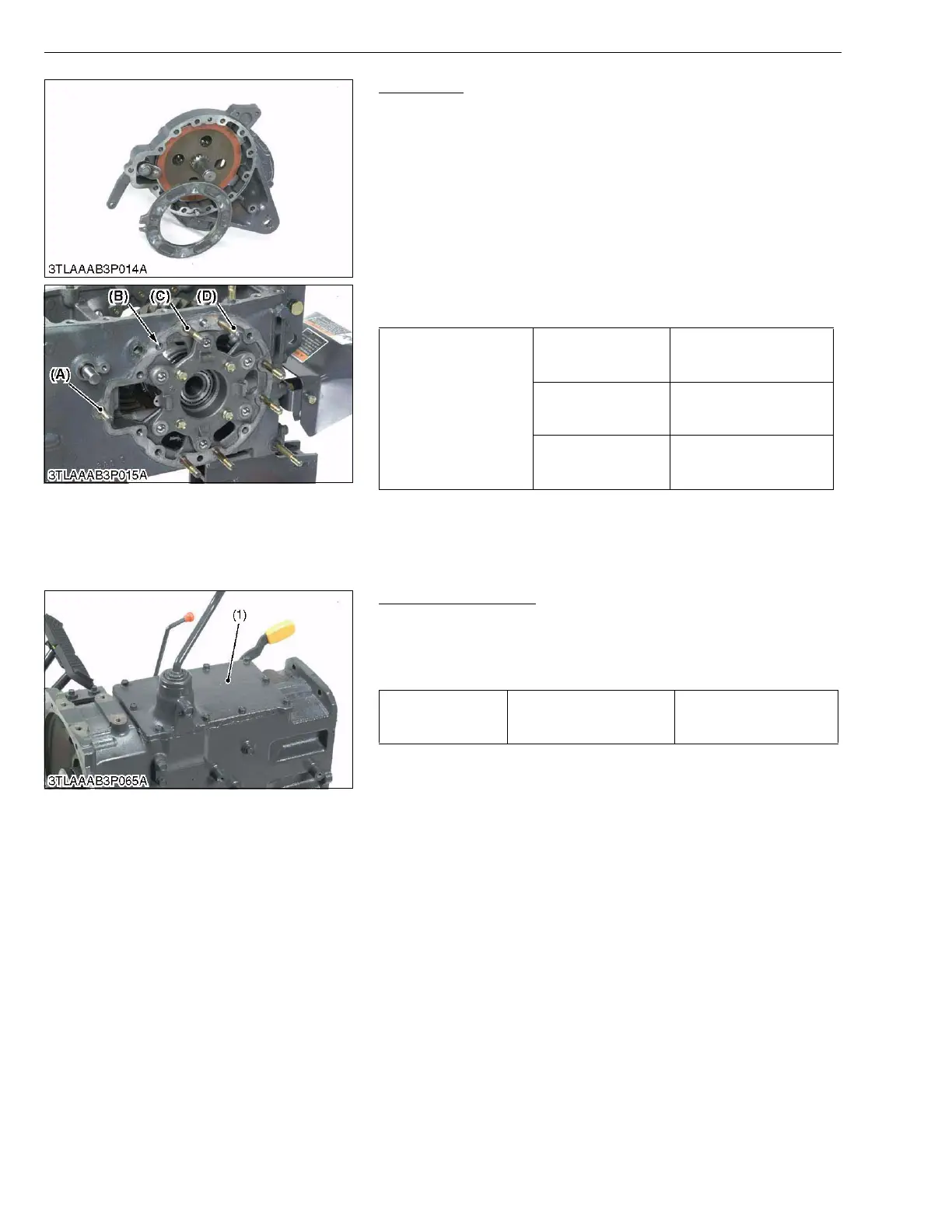

Brake Case
1. Loosen and remove the brake case mounting screws and nuts.
2. Separate the brake case, tapping the brake case lever lightly.
(When reassembling)
• Apply grease to the brake ball seats. (Do not grease
excessively.).
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of the brake case and transmission case, after eliminating
the water, oil and stuck liquid gasket.
• Before installing the brake case to the transmission case, install
the cam plate to the transmission case.
• Apply liquid lock (Three Bond 1324 or equivalent) to "(A), (B),
(C), (D)" portions of the stud bolts, RH and LH.
W1016886
[2] DISASSEMBLING AND ASSEMBLING
(1) Clutch Housing Case
Speed Change Cover
1. Remove the speed change cover (1).
(When reassembling)
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of speed change cover and clutch housing.
W1014296
Tightening torque
Brake case mounting
stud bolts
38.2 to 45.1 N·m
3.9 to 4.6 kgf·m
28.2 to 33.3 ft-lbs
Brake case mounting
screws and nuts
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 ft-lbs
Brake case mounting
lever shaft screw
62.8 to 72.5 N·m
6.4 to 7.4 kgf·m
46.3 to 53.5 ft-lbs
Tightening torque
Speed change cover
mounting screw
23.6 to 27.4 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 ft-lbs
(1) Speed Change Cover
