Kubota L2800 Workshop Manual

3-S20
L2800, L3400, WSM
TRANSMISSION (MANUAL TYPE)

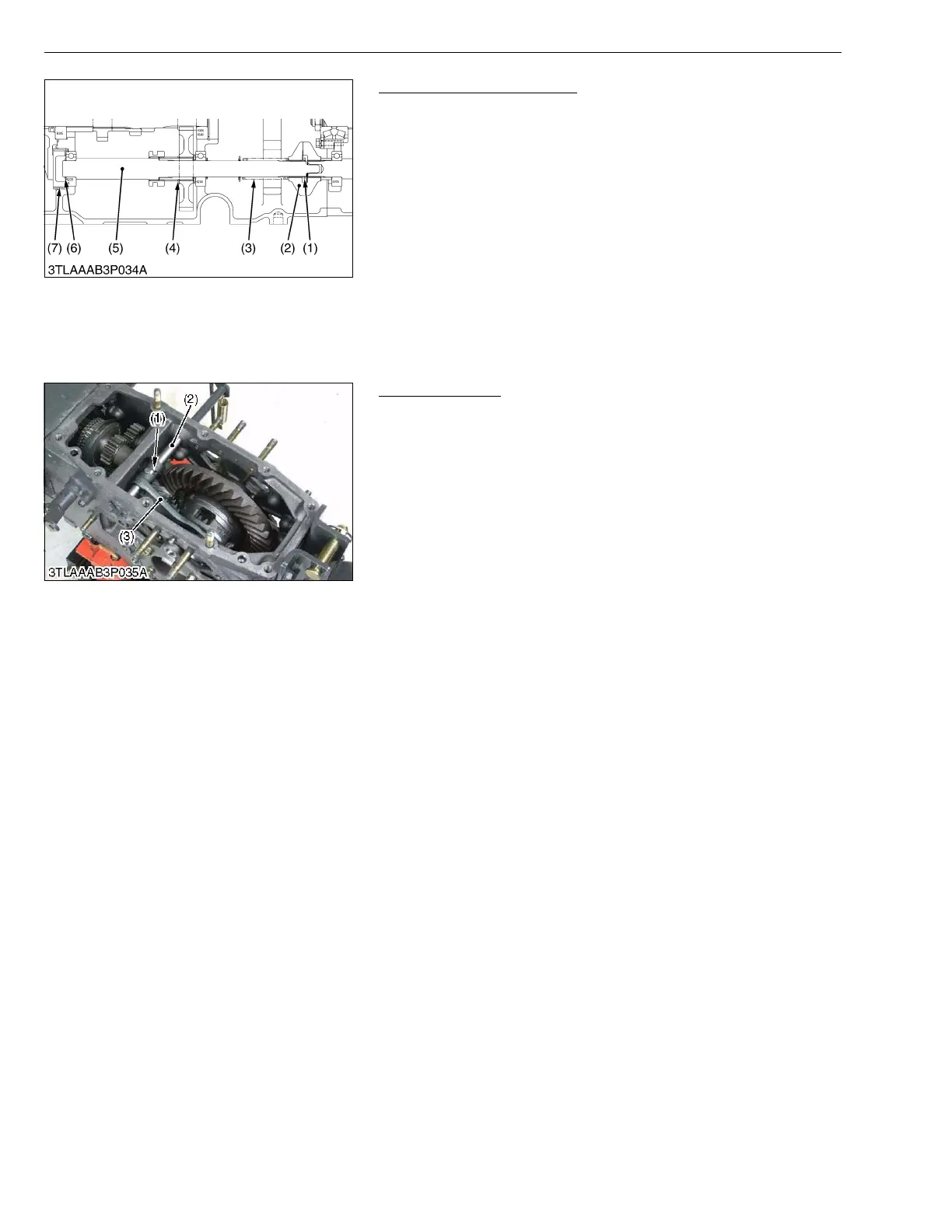

PTO Counter Shaft (L2800)
1. Remove the shift rod and shift fork.
2. Remove the external snap ring (1) and oneway clutch (2).
3. Tap out the PTO counter shaft (5) to the front to take off bearing
cover (7).
4. Remove the external snap ring (6) and (4).
5. Tap out the PTO counter shaft (5) to the rear.
(When reassembling)
• Bearing cover (2) should be replaced with new one.
W1038673
(2) Transmission Case
Differential Lock
1. Remove the clevis pin (1).
2. Draw out the differential lock fork shaft (2).
3. Take out the shift fork (3).
W1020311
(1) External Snap Rig
(2) Oneway Clutch
(3) Spring
(4) External Snap Ring
(5) PTO Counter Shaft
(6) External Snap Ring
(7) Bearing Cover
(1) Clevis Pin
(2) Fork Shaft
(3) Shift Fork
