Kubota L2800 Workshop Manual

7-S6
L2800, L3400, WSM
STEERING
[3] DISASSEMBLING AND ASSEMBLING

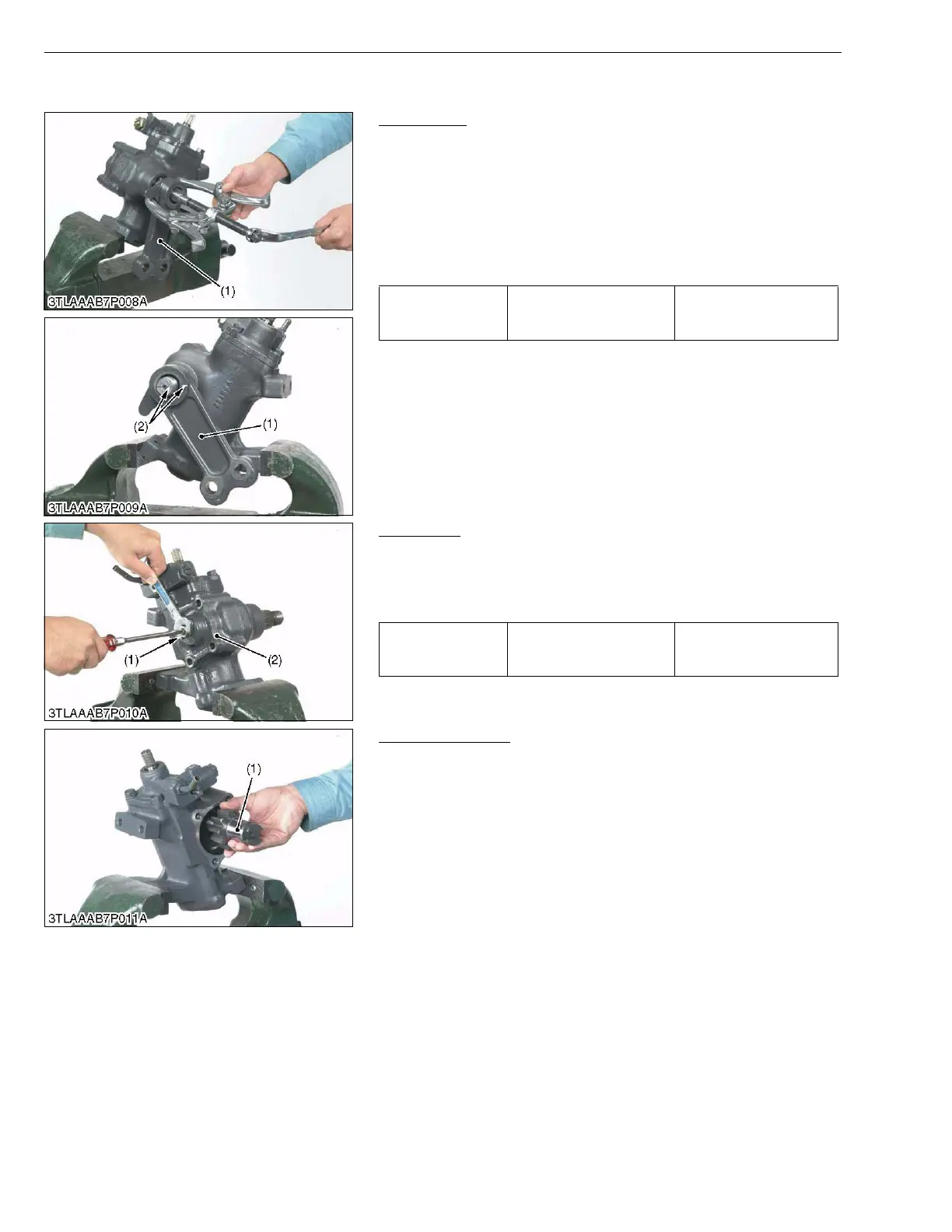

Pitman Arm
1. Turn the input shaft clockwise and counterclockwise several time
to drain oil from gear box.
2. Secure the power steering gear box with a vise.
3. Remove the nut and spring washer.
4. Remove the pitman arm (1) with puller.
(When reassembling)
• Install the pitman arm to the sector shaft, aligning their aligning
marks (2).
W1021107
Side Cover
1. Loosen the lock nut (1).
2. Remove the side cover mounting screws, turn the adjusting
screw clockwise, and remove the side cover (2).
(When reassembling)
W1021288
Sector Gear Shaft
1. Remove the sector gear shaft (1) from the side cover.
W1021422
Tightening torque Pitman arm mounting nut
147 to 196 N·m
15 to 20 kgf·m
108.5 to 144.7 ft-lbs
(1) Pitman Arm (2) Aligning Mark
Tightening torque Lock nut
58.8 to 78.4 N·m
6.0 to 8.0 kgf·m
43.4 to 57.9 ft-lbs
(1) Lock Nut (2) Side Cover
(1) Sector Gear Shaft
