Kubota L2800 Workshop Manual

1-S24
L2800, L3400, WSM
ENGINE

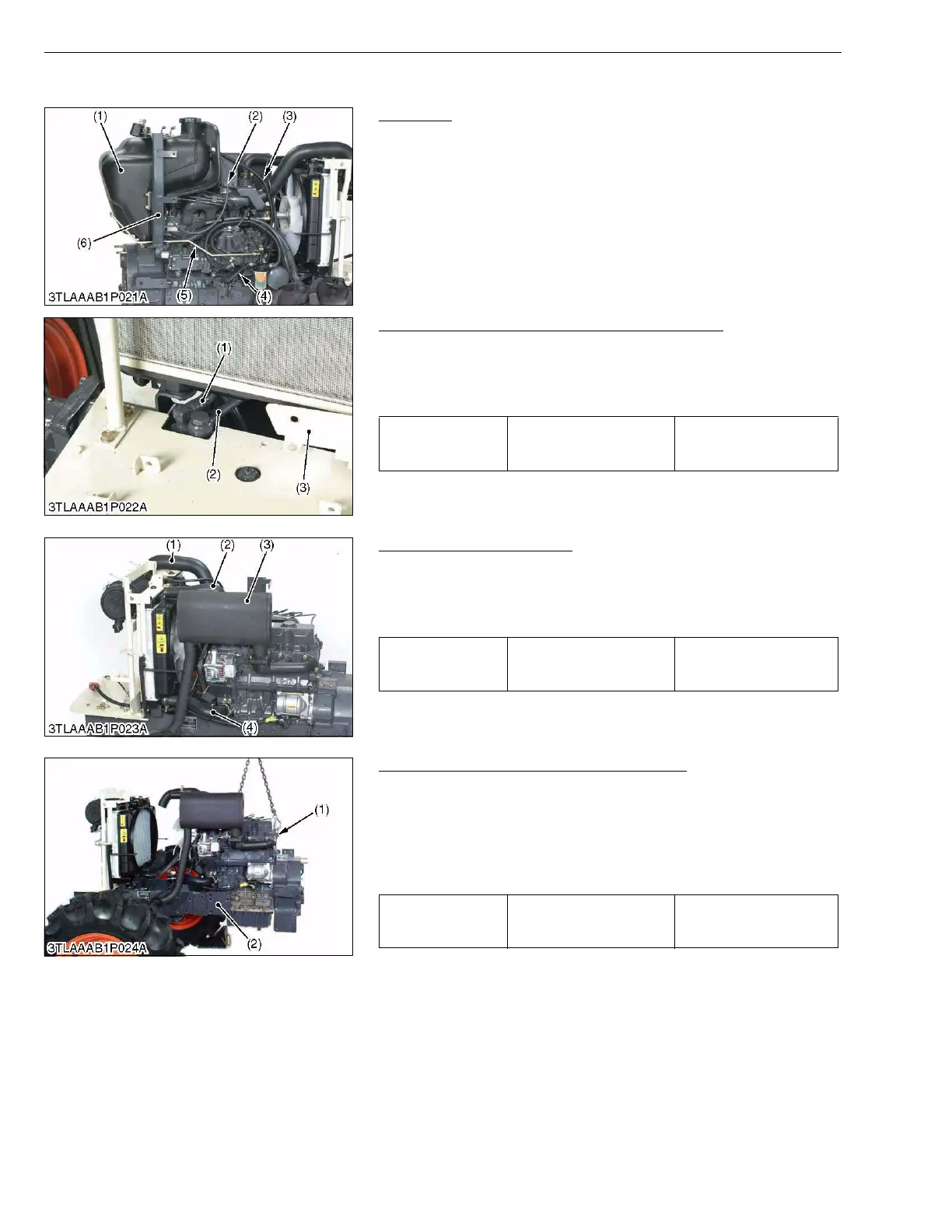

(2) Separating Engine from Front Axle Frame
Fuel Tank
1. Disconnect the fuel pipe (4) and drain the fuel.
2. Disconnect the return fuel pipe (2), (3).
3. Remove the fuel tank mounting screws.
4. Remove the fuel tank (1).
5. Remove the fuel tank support (6).
6. Remove the throttle rod (5).
W1055997
Power Steering Delivery Pipe and Return Hose
1. Remove the shutter plate (3).
2. Disconnect the power steering delivery pipe (2).
3. Disconnect the power steering return hose (1).
(When reassembling)
W1052855
Radiator Hose and Muffler
1. Remove the muffler (3).
2. Disconnect the radiator hose (2), (4).
3. Disconnect the air cleaner hose (1).
(When reassembling)
W1048170
Separating Engine from Front Axle Frame
1. Hoist the engine by the chain at the engine hook (1).
2. Remove the front axle frame mounting screw.
3. Separate the engine from the front axle frame (2).
(When reassembling)
• Lift the front of the front axle frame by the gap in the bolt hole, and
tighten the front axle mounting screws.
W1048360
(1) Fuel Tank
(2) Return Fuel Pipe
(3) Return Fuel Pipe
(4) Fuel Pipe
(5) Throttle Rod
(6) Fuel Tank Support
Tightening torque Delivery pipe joint bolt
34 to 39 N·m
3.5 to 4.0 kgf·m
25.3 to 28.9 ft-lbs
(1) Power Steering Return Pipe
(2) Power Steering Delivery Pipe
(3) Shutter Plate
Tightening torque Muffler mounting screw
31.4 to 37.2 N·m
3.2 to 3.8 kgf·m
23.1 to 27.5 ft-lbs
(1) Air Cleaner Hose
(2) Radiator Hose
(3) Muffler
(4) Radiator Hose
Tightening torque
Front axle frame mounting
screw (M12)
102.9 to 117.6N·m
10.5 to 12.5 kgf·m
76.0 to 86.8 ft-lbs
(1) Engine Hook (2) Front Axle Frame
