Kubota L2800 Workshop Manual

6-S6
L2800, L3400, WSM
FRONT AXLE
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING

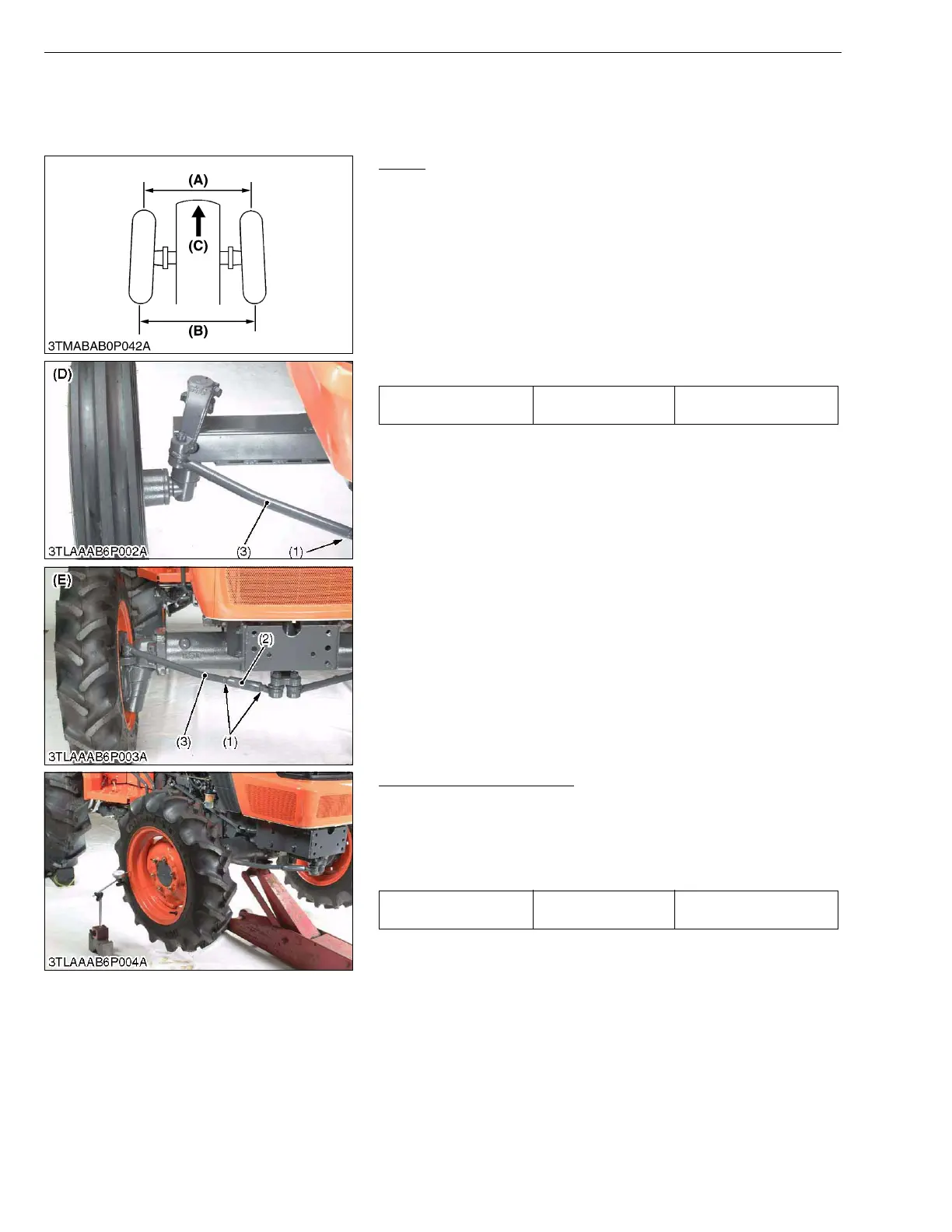

Toe-in
1. Park the tractor on the flat place.
2. Inflate the tires to the specified pressure.
3. Turn steering wheel so front wheels are in the straight ahead
position.
4. Lower the implement, lock the parking brake and stop the engine.
5. Measure distance between tire beads at front of tire, hub height.
6. Measure distance between tire beads at rear of tire, hub height.
7. Front distance should be 2 to 8 mm (0.08 to 0.32 in.) less than
rear distance.
8. If the measurement is not within the factory specifications, adjust
by changing the tie-rod length.
■ Adjusting
1. Loosen the tie-rod lock nut (1) and turn the turnbuckle (2) to
adjust the tie-lock rod length until the proper toe-in measurement
is obtained.
2. Retighten the tie-rod lock nut (1).
IMPORTANT
■
• A right and left tie-rod joint is adjusted to the same length.
W1021328
Axial Sway of Front Wheel
1. Jack up the front side of tractor.
2. Set a dial gauge on the outside of rim.
3. Turn the wheel slowly and read the runout of rim.
4. If the runout exceeds the factory specifications, check the
bearing, rim, and front wheel hub.
W1012176
Toe-in ((B) - (A)) Factory spec.
2 to 8 mm
0.08 to 0.32 in.
(1) Tie-rod Lock Nut
(2) Turnbuckle
(3) Tie-rod
(A) Wheel to Wheel Distance at front
(B) Wheel to Wheel Distance at rear
(C) Front
(D) 2WD
(E) 4WD
Axial sway of front wheel Factory spec.
Less than 5.0 mm
0.20 in.
