8-S15
L2800, L3400, WSM
HYDRAULIC SYSTEM

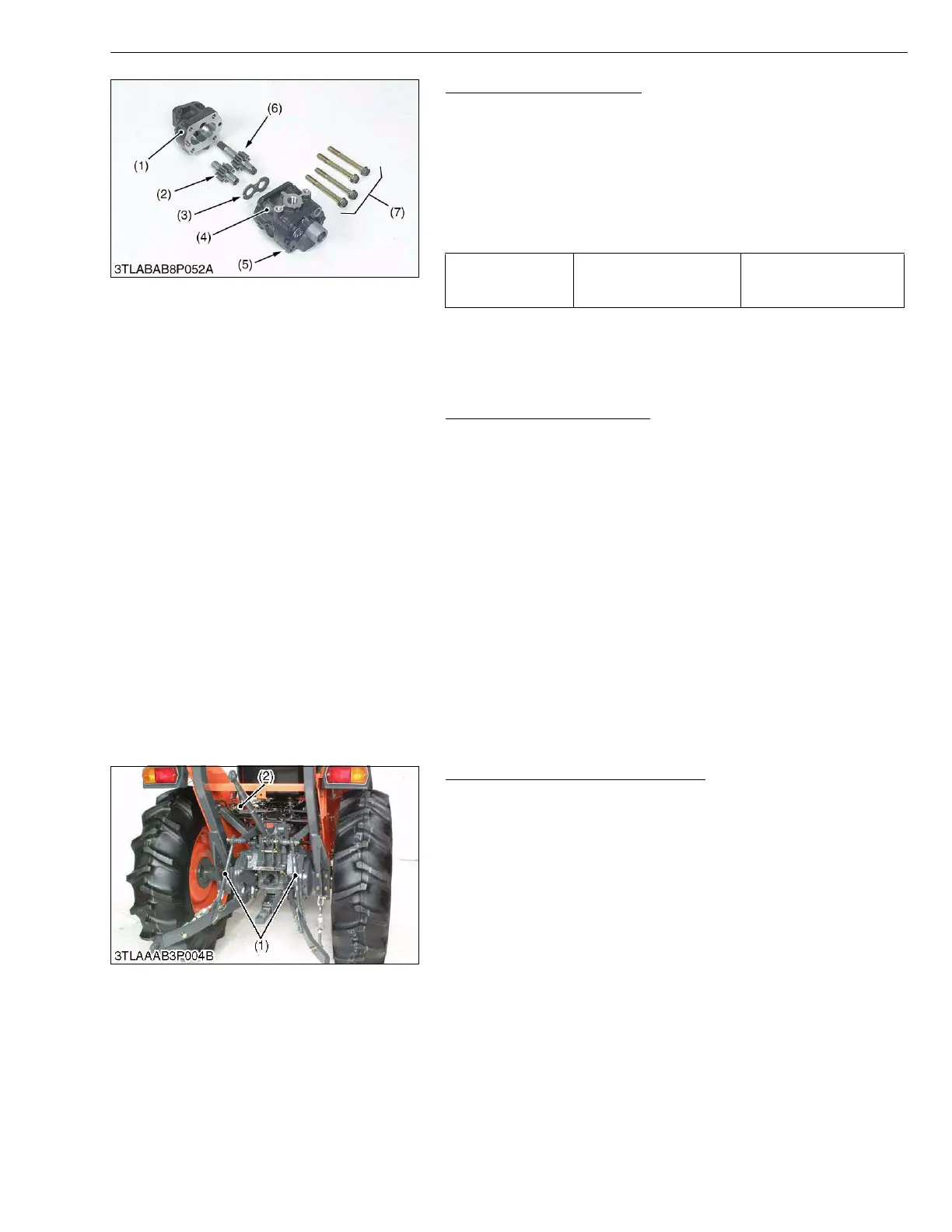

Hydraulic Pump Assembly
1. Remove the pump cover mounting screw (7).
2. Remove the drive gear (6), driven gear (2) and side plate (3) from
the casing.
(When reassembling)
• Take care no to damage the gasket.
• Align the hole of the pump cover (4) and casing 2 (5).
• Install the side plate, noting its location and direction.
• Install the gears, noting its direction.
W1021912
Hydraulic Pump Running-in
After reassembly, perform break-in operation in the following
manner, and check the pump for abnormality before use. If the
pump temperature should rise noticeably during running-in, recheck
shoul be performed.
1. Install the hydraulic pump to the tractor, and mount the suction
pipe and delivery pipe securely.
2. Set the engine speed at 1300 to 1500 mm
-1
(rpm), and operate
the hydraulic pump at no load for about 10 minutes.
3. Set the engine speed at 2000 to 2200 mm
-1
(rpm), and with the
hydraulic pump applied with 2.94 MPa (30 kgf/cm
2
, 427 psi) to
4.90 MPa (50 kgf/cm
2
, 711 psi) pressure, operate it for approx.
15 minutes.
4. With the engine set to maximum speed, fully turn the steering
wheel to the left or right, then actuate the relief valve five times
for 25 seconds (one time 5 seconds).
W1022427
(3) Hydraulic Cylinder
Lift-rod and Battery Negative Cable
1. Remove the lift-rods (1) and top link (2).
2. Disconnect the negative cable.
W1018798
Tightening torque
Pump cover mounting
screw
39.2 to 44.1 N·m
4.0 to 4.5 kgf·m
28.9 to 32.5 ft-lbs
(1) Casing 1
(2) Driven Gear
(3) Side Plate
(4) Pump Cover
(5) Casing 2
(6) Drive Gear
(7) Screw
(1) Lift-rod (2) Top Link
