9-S11
L2800, L3400, WSM
ELECTRICAL SYSTEM

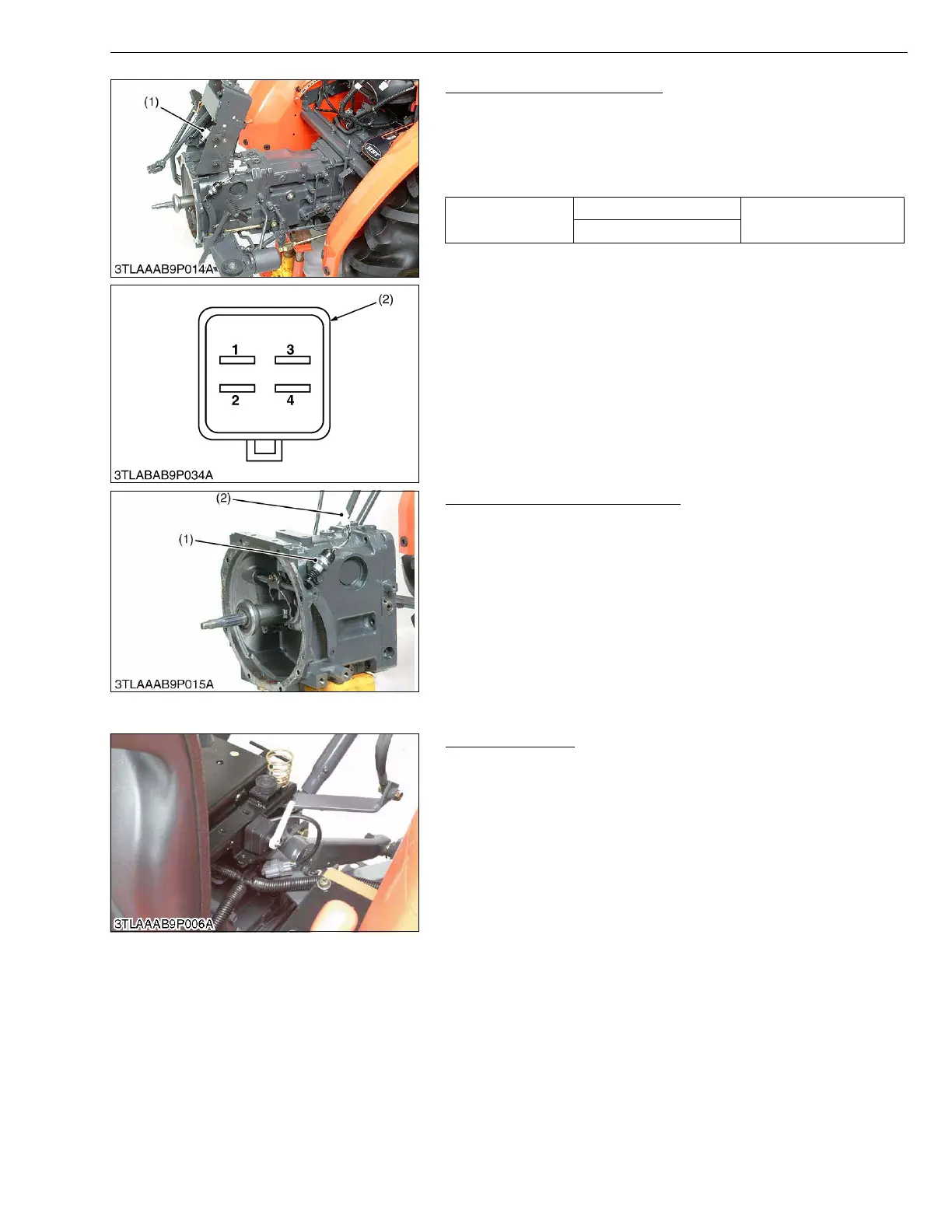

HST Pedal Switch (HST Type)
1. Disconnect the HST neutral switch connector.
2. Remove the HST neutral switch (1).
3. Push the switch and measure the resistance between terminal 1
and 2, and between terminal 3 and 4.
4. If 0 ohm is not indicated, switch is faulty.
W1035499
Clutch Pedal Switch (HST Type)
1. Disconnect the clutch pedal switch connector (2).
2. Measure the resistance between connector terminals while
pushing the clutch pedal switch.
3. If 0 ohm is not indicated, switch is faulty.
W1035966
(4) Operator Presence Control
Checking System
1. Sit on operator's seat.
2. Set the parking brake and stop the engine.
3. Shift the range gear shift lever to "NEUTRAL" position.
4. Shift the PTO gear shift lever to "OFF" position.
5. Fully depress the clutch pedal.
6. Start the engine.
7. Engage the PTO gear shift lever.
8. Stand up. (Do not get off the machine.)
9. The engine must shut off after approximately 1 second.
W1037456
Resistance while
pushing the switch
Terminal 1 - 2
0 Ω
Terminal 3 - 4
(1) HST Neutral Switch (2) Connector
(1) Clutch Pedal Switch (2) Clutch Pedal Switch Connector
