Kubota L2800 Workshop Manual

H3-S24
L2800, L3400, WSM
TRANSMISSION (HST TYPE)
Gears and Shafts

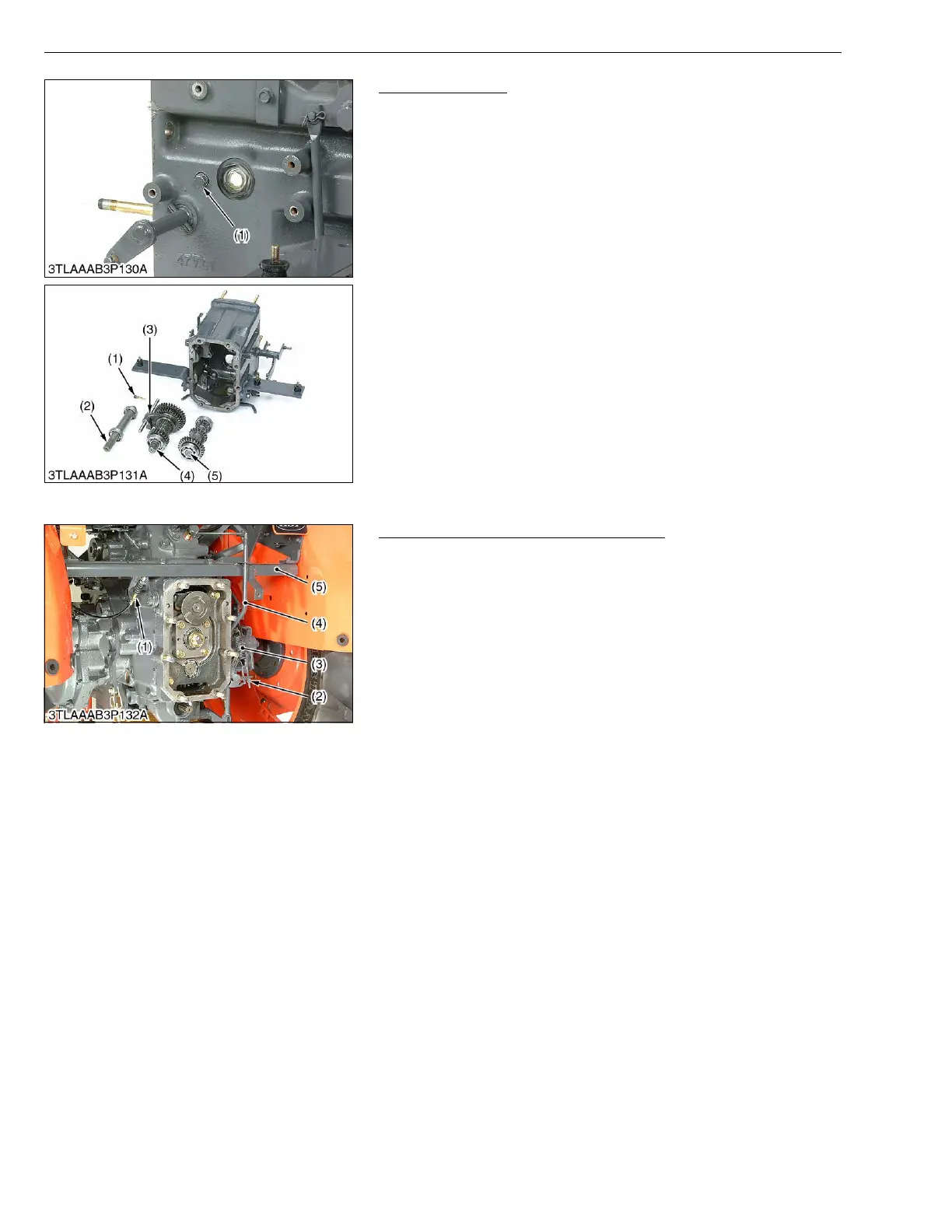

1. Remove the screw (1).
2. Tap out the PTO counter shaft (2).
3. Remove the shift fork (3) and sub shaft assembly (4).
4. Remove the 13T gear shaft assembly (5).
W1054873
(3) Transmission Case
PTO Wire, DT Rod and Fender Support
1. Disconnect the PTO wire (1).
2. Remove the DT rod (4) and fender support (5).
3. Loosen the lock nut (2)and the remove the spring (3).
(When reassembling)
• Be sure to adjust the PTO wire (1). (See page H3-S12.).
W1020311
(1) Screw
(2) PTO Counter Shaft
(3) Shift Fork
(4) Sub Shaft Assembly
(5) 13T Gear Shaft Assembly
(1) PTO wire
(2) Lock Nut
(3) Spring
(4) DT Rod
(5) Fender Support
