H3-S16
L2800, L3400, WSM
TRANSMISSION (HST TYPE)

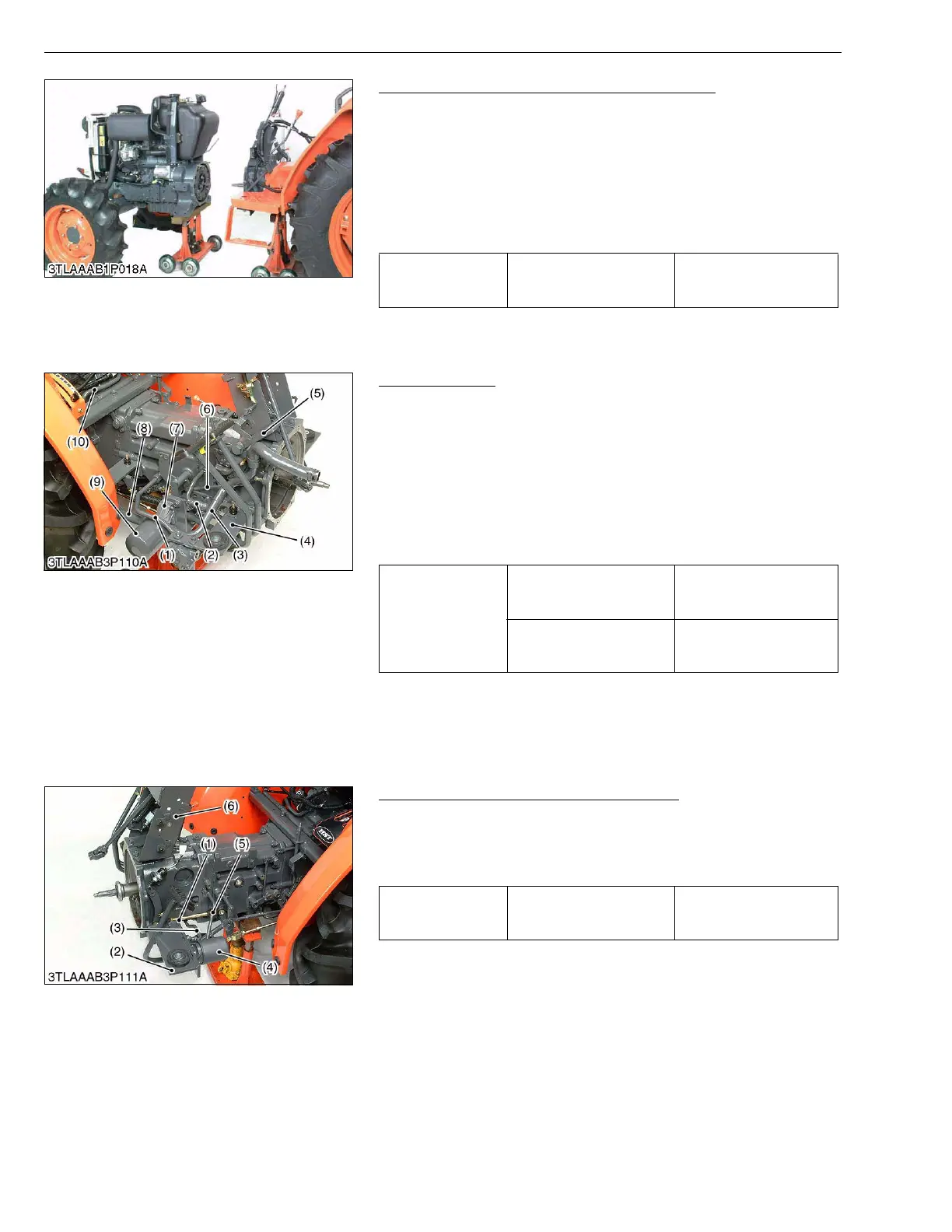

Separating Engine from Clutch Housing Case
1. Check the engine and clutch housing case are securely mounted
on the disassembling stands.
2. Remove the engine mounting screws, and separate the engine
from the clutch housing case.
(When reassembling)
• Apply grease to the splines.
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of the engine and clutch housing case.
W1026299
(2) Separating Clutch Housing from MID Case
Hydraulic Pipes
1. Remove the suction pipe 1 (3) and pipe (2).
2. Remove the suction pipe 2 (8) with oil filter (9) and oil filter
bracket (7).
3. Remove the delivery pipe (10) and return pipe (1).
4. Remove the step support (4) with front hydraulic block.
5. Remove the HST neutral rod (6) and neutral holder arm (5).
(When reassembling)
• Be sure to adjust the HST neutral position. (See page H3-S10.)
• Install the copper washer securely.
W1013738
Steering Support Clutch Rods and Pipes
1. Remove the steering support (6).
2. Remove the oil filter (4) with bracket and pipes (3), (5).
3. Remove the step support (2) and clutch rods (1).
(When reassembling)
W1027455
Tightening torque
Engine mounting screws to
clutch housing
48.1 to55.8 N·m
4.9 to5.7 kgf·m
35.4 to41.2 ft-lbs
Tightening torque
Delivery pipe (10) joint bolt
39.0 to 49.0 N·m
4.5 to 5.0 kgf·m
32.5 to 36.2 ft-lbs
Return pipe (1) joint bolt
and nut
49.0 to 69.0 N·m
5.0 to 7.0 kgf·m
36.1 to 50.6 ft-lbs
(1) Return Pipe
(2) Pipe
(3) Suction Pipe 1
(4) Step support
(5) Neutral Holder Arm
(6) HST Neutral Rod
(7) Oil Filter Bracket
(8) Suction Pipe 2
(9) Oil Filter
(10) Delivery pipe
Tightening torque
Steering support mounting
screw
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.2 to 66.5 ft-lbs
(1) Clutch Rod
(2) Step Support
(3) Pipe
(4) Oil Filter
(5) Pipe
(6) Steering Support
