3-S10
L2800, L3400, WSM
TRANSMISSION (MANUAL TYPE)

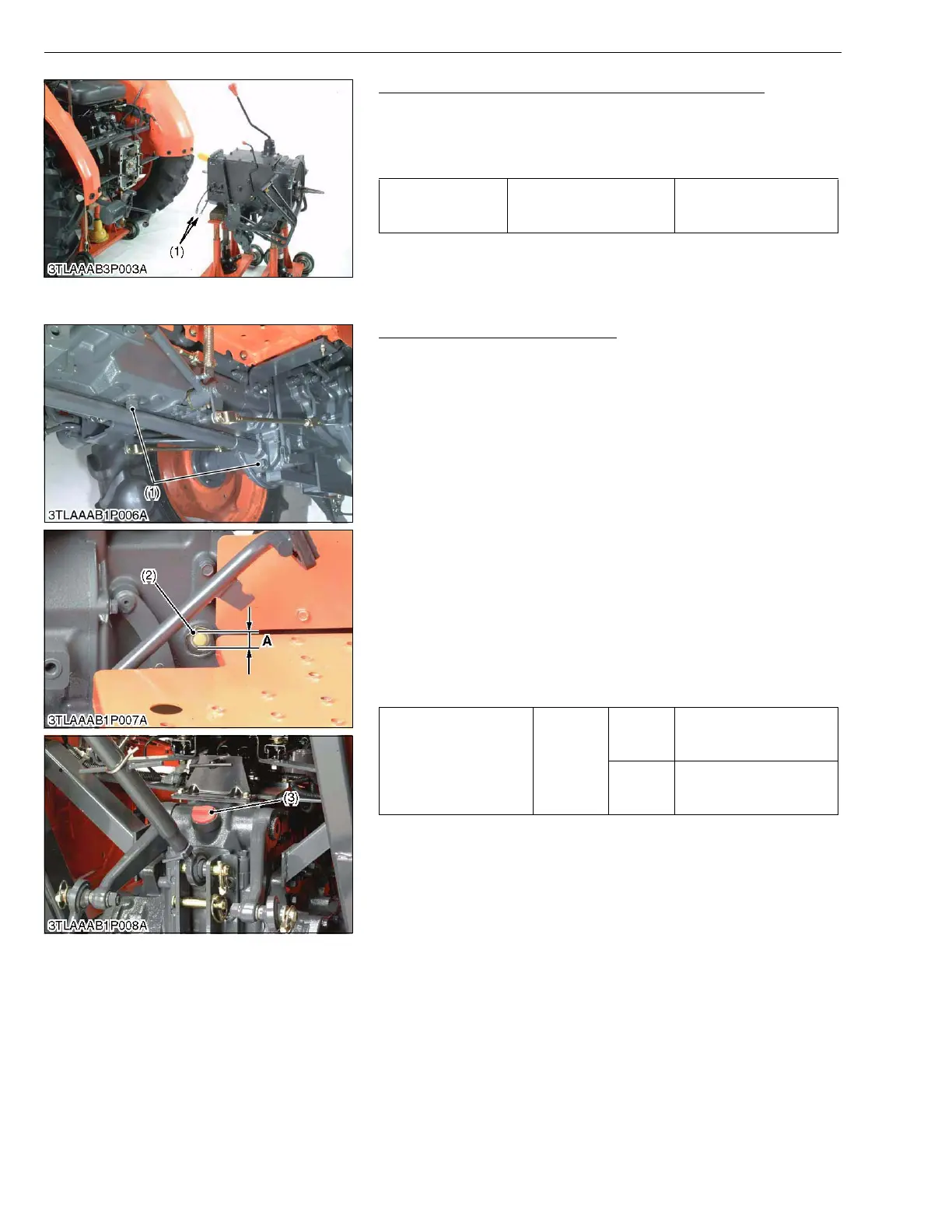

Separating Clutch Housing from Transmission Case
1. Remove the clutch housing mounting screws.
2. Disconnect the PTO safety switch connectors (1).
3. Separate the clutch housing from the transmission case.
(When reassembling)
W1014109
(3) Separating Transmission Case
Draining the Transmission Fluid
1. Place an oil pan underneath the transmission case.
2. Remove the drain plugs (1) at the bottom of the transmission
case.
3. Drain the transmission fluid.
4. Screw in the drain plugs (1).
(When reassembling)
• Fill up new oil to the upper line of the gauge (2) from the filling port
after removing the filling plug (3).
• After running the engine for a few minutes, stop it and check the
fluid level again, if low, add fluid prescribed level (A).
IMPORTANT
• Use only multi-grade transmission fluid. Use of other fluides
may damage the transmission or hydraulic system.
• Refer to "LUBRICANTS, FUEL AND COOLANT". (See page
G-7.)
• Never work the tractor immediately after changing the
transmission fluid. Keeping the engine at medium speed for
a few minutes to prevent damage to the transmission.
• Do not mix different brands oil together.
W1028796
Tightening torque
Clutch housing mounting
nut
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.2 to 66.5 ft-lbs
(1) Connector
Transmission fluid Capacity
2WD
27 L
7.1 U.S.gals
5.98 Imp.gals
4WD
27.5 L
7.3 U.S.gals
6.1 Imp.gals
(1) Drain Plug
(2) Gauge
(3) Filling Plug
A : Oil level is acceptable within this
range.
