7-M1
L2800, L3400, WSM
STEERING
1. LUBRICATING SYSTEM
[1] LINKAGE
W1012968

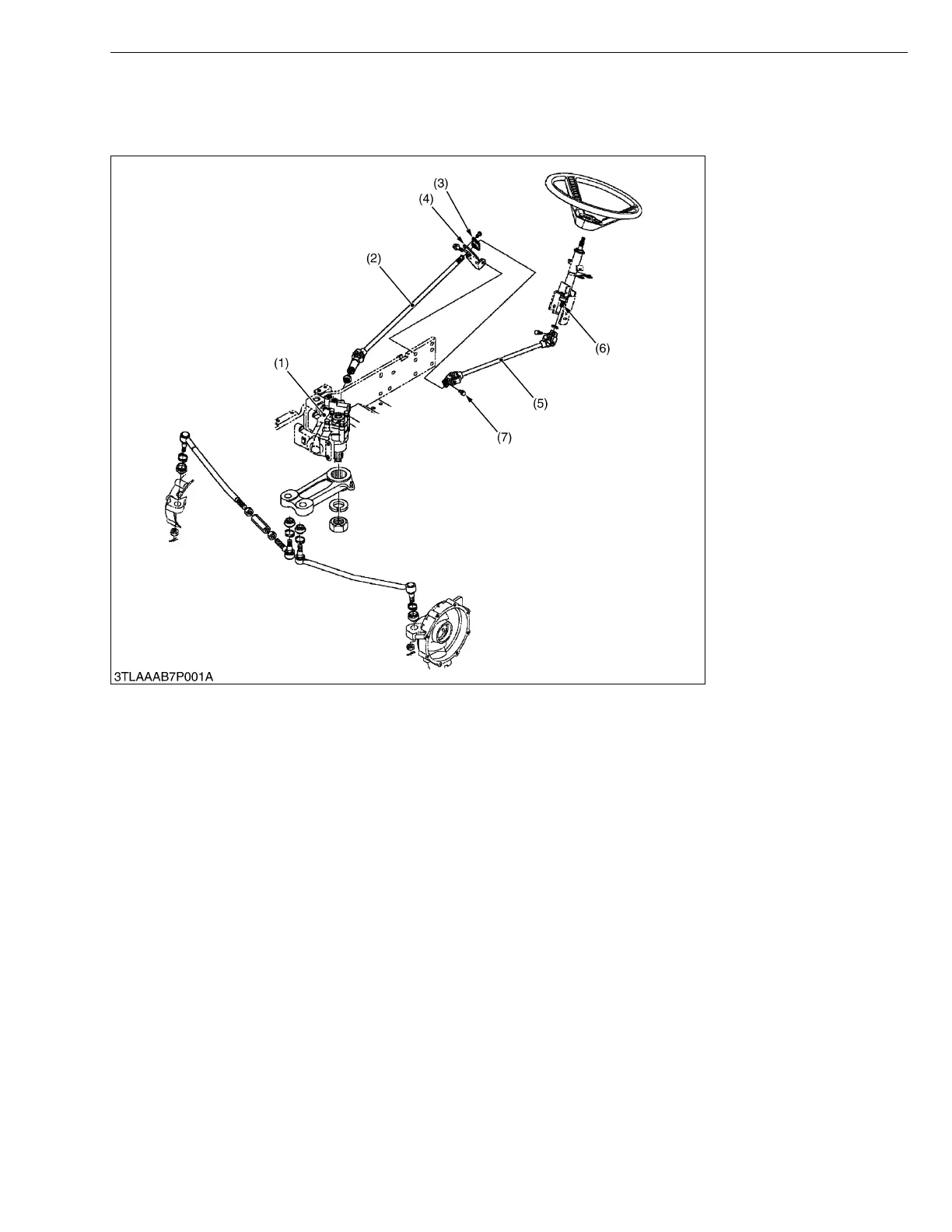

The integral type power steering is used on these tractors. This steering system is composed of steering wheel,
steering joint shafts, steering gear box and other components shown in the figure.
(1) Steering Gear Box
(2) Joint Shaft 2
(3) Mini-Flange
(4) Support
(5) Joint Shaft
(6) Steering Shaft
(7) Bolt
