9-S15
L2800, L3400, WSM
ELECTRICAL SYSTEM

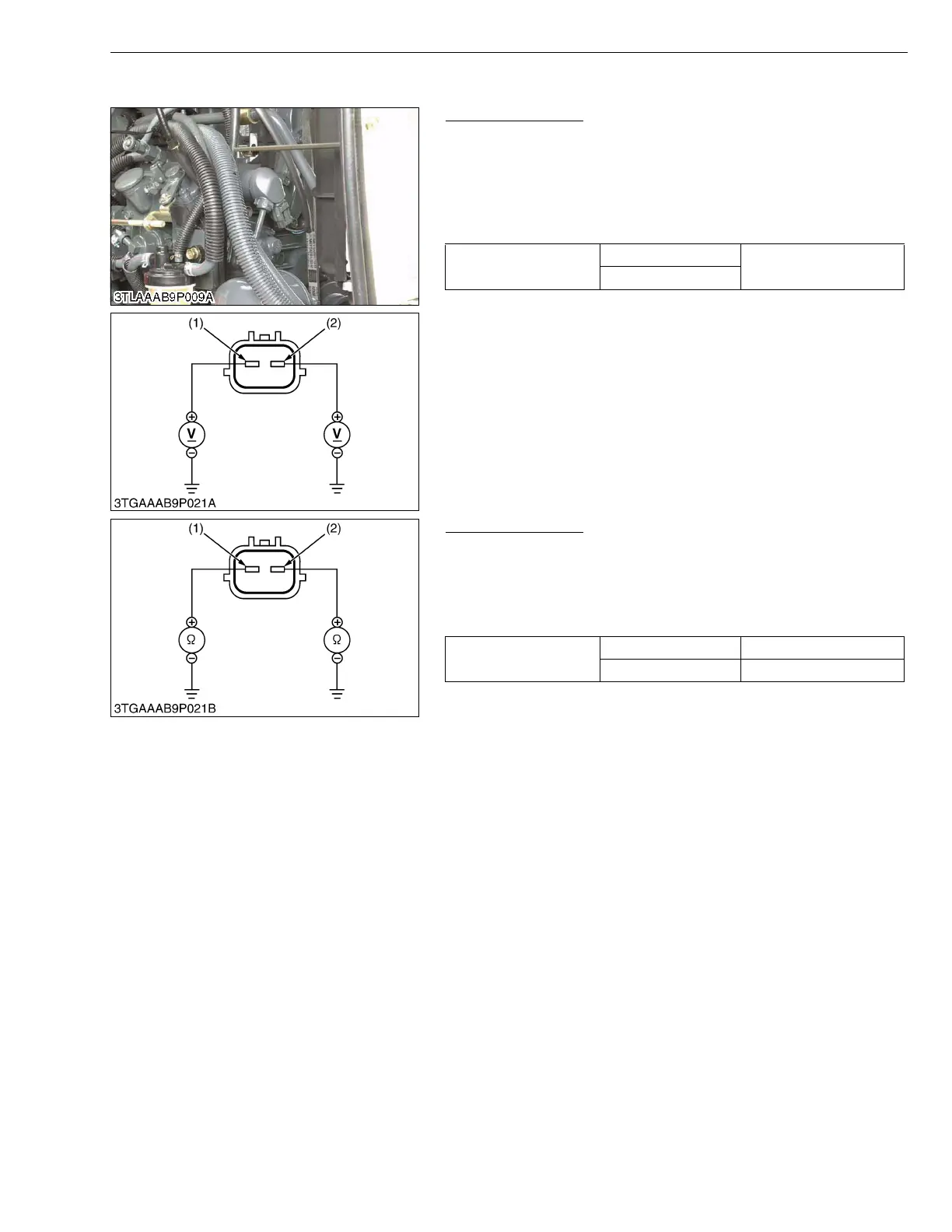

(7) Engine Stop Solenoid
Connector Voltage
1. Disconnect the 2P connector from engine stop solenoid.
2. Turn the main switch key to the "ON" position.
3. Measure the voltage between the terminal 1, terminal 2 and
body.
4. If the voltage differs from the battery voltage, the wiring harness
or main switch is faulty.
W1018279
Stop Solenoid Coil
1. Disconnect the 2P connector from engine stop solenoid.
2. Measure the resistance between the terminal 1, terminal 2 of
engine stop solenoid and body.
3. If resistance differs from the factory specification, the coil is
faulty.
W1026651
Voltage
Terminal 1 - Body
Approx. battery voltage
Terminal 2 - Body
(1) 1 Terminal (2) 2 Terminal
Resistance
Terminal 1 - Body Approx. 0.375 Ω
Terminal 2 - Body Approx. 15.6 Ω
(1) Terminal 1 (Pulling Coil) (2) Terminal 2 (Holding Coil)
