Kubota L2800 Workshop Manual

H3-S18
L2800, L3400, WSM
TRANSMISSION (HST TYPE)
[3] DISASSEMBLING AND ASSEMBLING
(1) Clutch Housing and HST

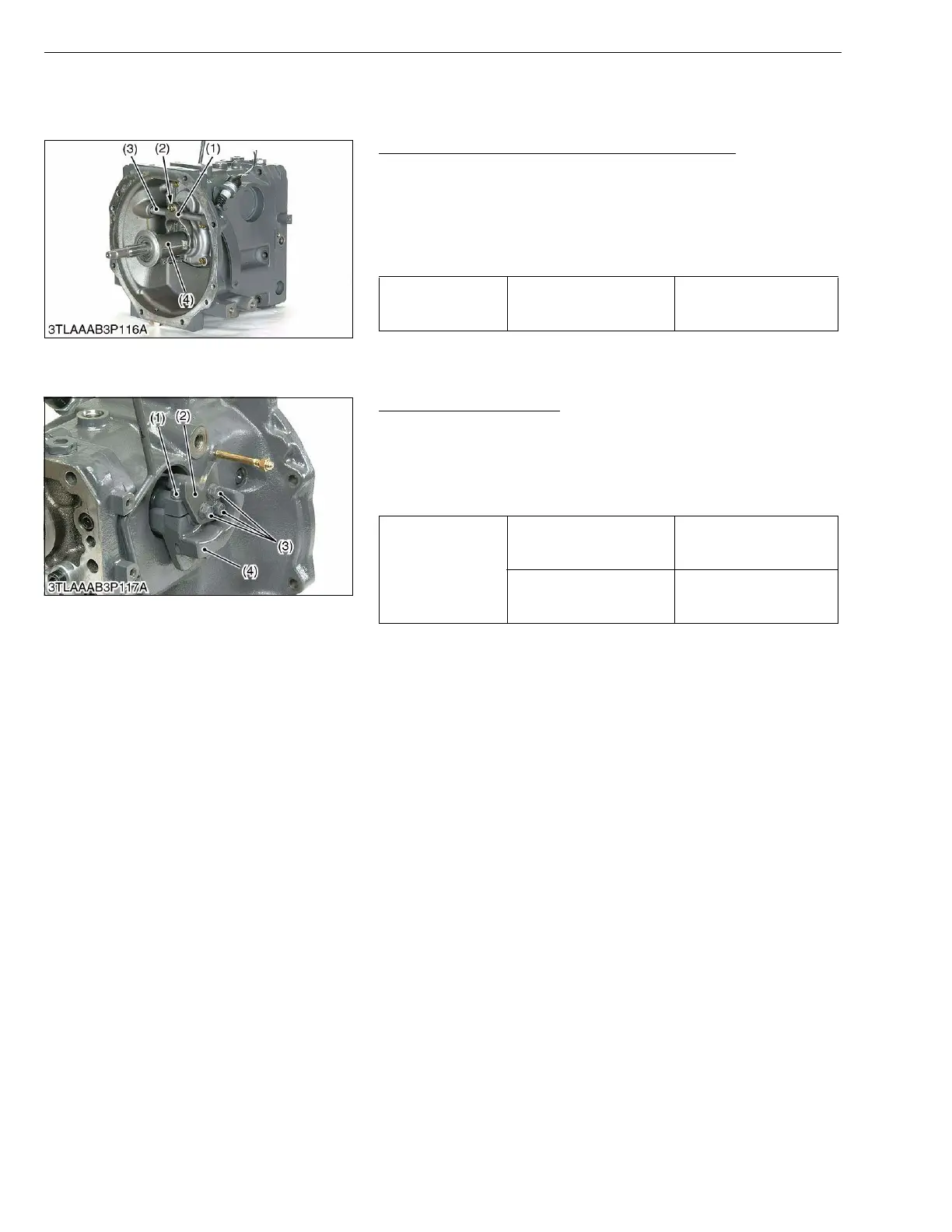

Clutch Lever, Release Fork and Release Bearing
1. Remove the release fork mounting screws (2).
2. Draw out the clutch lever (3) to remove the release fork (1).
3. Remove the release bearing and release hub (4) together.
(When reassembling)
• Apply grease to the sliding surface of the clutch release hub.
• Apply grease to the clutch lever.
W1014296
Plate and Neutral Holder
1. Remove the plate mounting screws (3) and plate (2).
2. Remove the neutral holder mounting screw (1) and neutral holder
(4).
(When reassembling)
• Be sure to adjust the HST neutral position. (See page H3-S10.).
W1017592
Tightening torque
Release fork mounting
screw
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 ft-lbs
(1) Release Fork
(2) Release Fork Mounting Screw
(3) Clutch Lever
(4) Release Hub
Tightening torque
Plate mounting screw
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 ft-lbs
Neutral holder mounting
screw
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 ft-lbs
(1) Neutral Holder Mounting Screw
(2) Plate
(3) Plate Mounting Screw
(4) Neutral Holder
