H3-S9
L2800, L3400, WSM
TRANSMISSION (HST TYPE)
(3) Checking Cruise Lever Operating Force

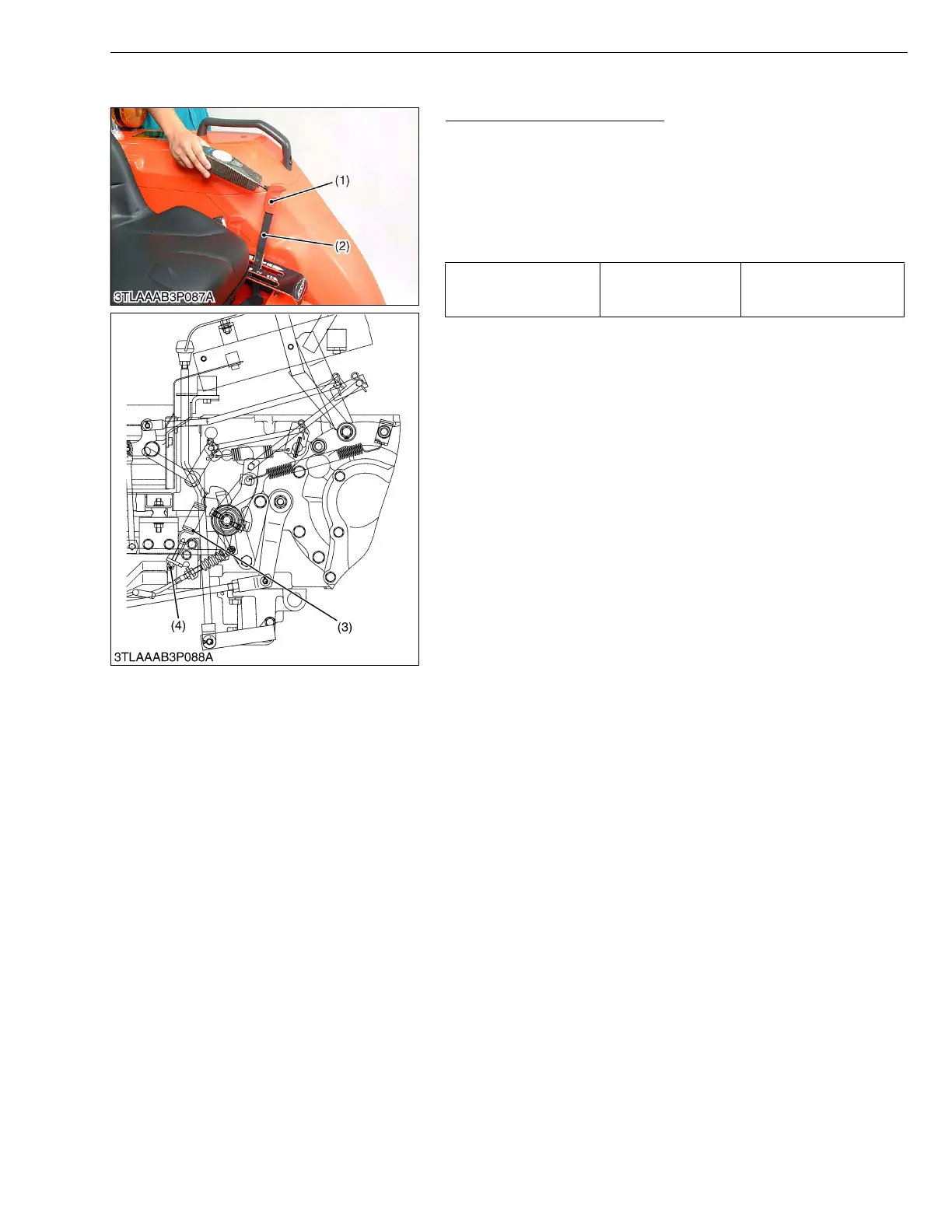

Cruise Lever Operating Force
1. Push the cruise control lever (1) into maximum tied position.
After that pull it 50 mm (2 in.) back.
2. Measure the force needed to move the cruise control lever back
into the maximum position at the top of the lever grip (2).
3. If the force is not within the factory specifications, loosen the lock
nut (4) and adjust the tension of cruise spring (3).
4. Retighten the lock nut securely.
W1032263
Cruise control lever
operation force
Factory spec.
59 to 98 N
6.0 to 10 kgf
13.2 to 22.1 lbs
(1) Cruise Control Lever
(2) Lever Grip
(3) Cruise Spring
(4) Lock Nut
