Kubota L2800 Workshop Manual

6-S8
L2800, L3400, WSM

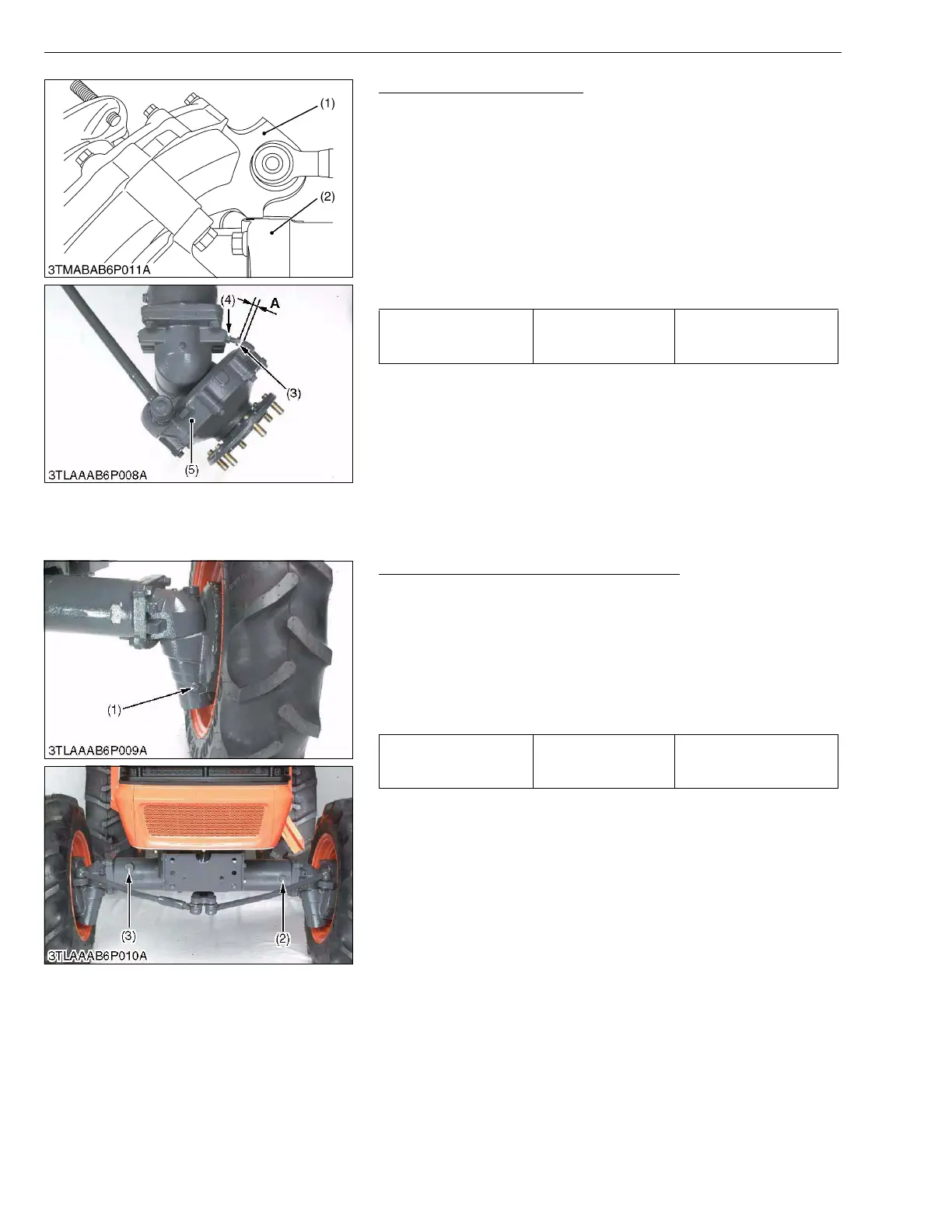

FRONT AXLE
Front Wheel Steering Angle
1. Inflate the tires to the specified pressure.
2. Steer the wheels to the extreme right until the front gear case (1)
contacts with the bevel gear case (2) at right hand side of the
front axle.
3. If the front gear case (1) can not be contacted with the bevel gear
case (2), shorten the length of stopper (3).
4. Keeping the front gear case (1) contact with the bevel gear case
(2), make a specified clearance (A) as shown in the lower table.
5. After adjustment, secure the stopper with the lock nut (4).
6. For adjusting the left steering angle, perform the same procedure
as mentioned in right steering angle
W1022987
[2] PREPARATION
(1) Separating Front Axle
Draining Front Axle Case Oil [4WD Type]
1. Place the oil pans underneath the front axle case.
2. Remove the drain plug (1) both sides and filling port plug (3) to
drain the oil.
3. After draining, reinstall the drain plugs (1) and filling port plug (3).
(When refilling)
• Remove the filling port plug (3) and check plug (2).
• Fill with the new oil up to the check plug port.
• After filling, reinstall the check plug (2) and filling port plug (3).
IMPORTANT■
• Use KUBOTA SUPER UDT fluid or SAE 80, 90 gear oil.
Refer to "LUBRICANTS, FUEL AND COOLANT". (See page
G-7.)
W1012640
Clearance (A) between
bevel gear case and
stopper
Factory spec.
1.0 to 3.0 mm
0.04 to 0.12 in.
(1) Front Gear Case
(2) Bevel Gear Case
(3) Stopper
(4) Lock Nut
(5) Front Gear Case
A : Clearance
Front axle case oil Capacity
4.5 L
4.8 U.S.qts
3.9 Imp.qts
(1) Drain Plug
(2) Check Plug
(3) Filling Port Plug
