3.15.2 Online change from multiple programming tools

This function allows online change from multiple programming tools.

(1) Operating procedure

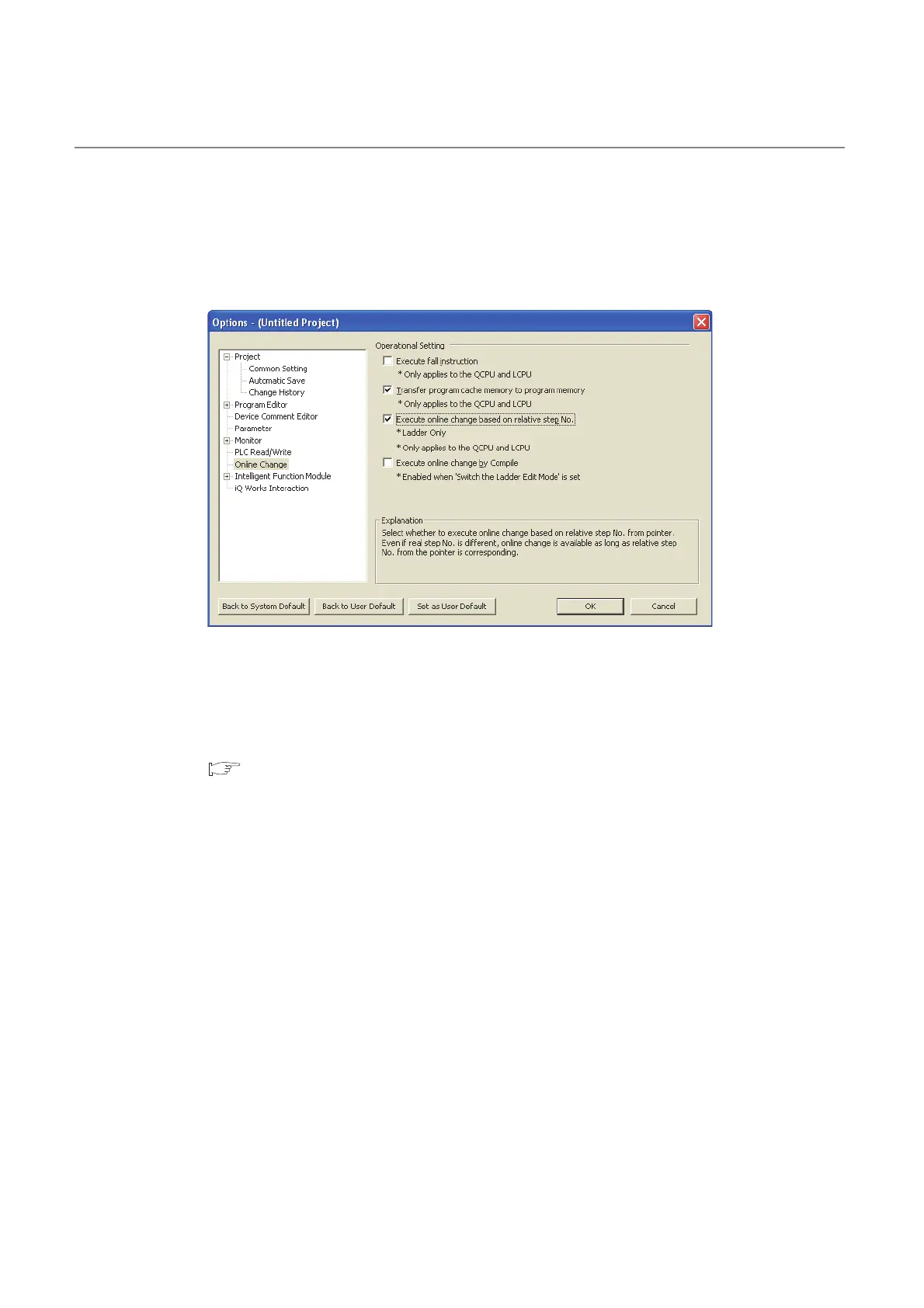

Select [Tool] [Options] "Online Change" in the programming tool, and check the "Execute online change

based on relative step No." checkbox. Set a pointer for online change in advance.

Display the ladder including the specified pointer and write the changed ladder to the CPU module during RUN.

(2) Precautions

Precautions for online change from multiple programming tools are the same as those for standard online

change. ( Page 173, Section 3.12.3)
