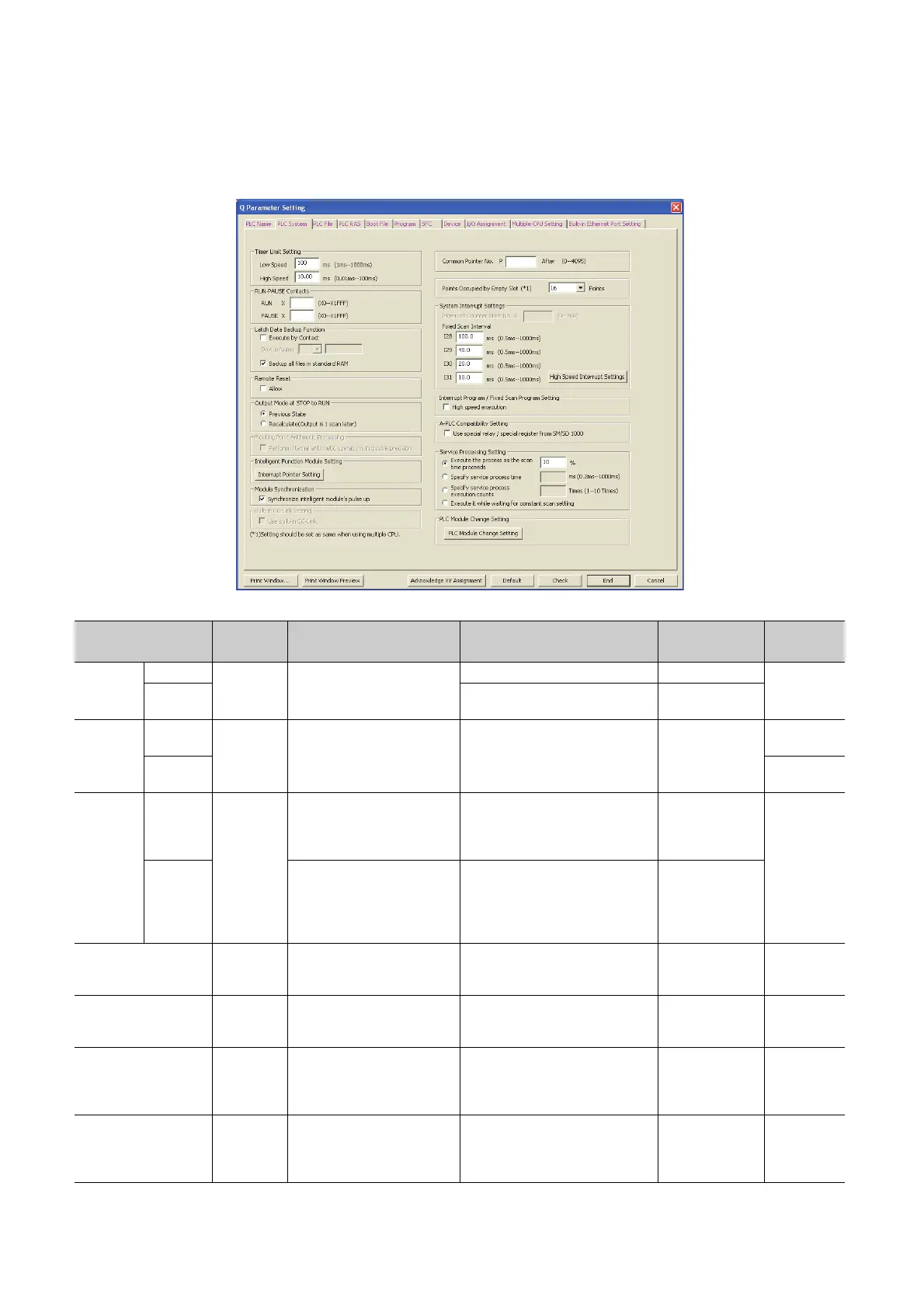

Appendix 1.2.2 PLC system
Parameters required for use of the CPU module are set.
Item
Parameter
No.
Description Setting range Default Reference
Timer Limit
Setting
Low Speed
1000
H
Set the time limit for the low
speed timer or high speed timer.
1ms to 1000ms (in increments of 1ms) 100ms
Page 358,
Section
4.2.10
High Speed
0.01ms to 100.0ms (in increments of
0.01ms)
10.0ms
RUN-
PAUSE
Contacts
RUN
1001
H
Set the contacts that control
RUN/PAUSE of the CPU module.
Setting of only the PAUSE
contact is not allowed.
X0 to 1FFF Blank
Page 131,
Section 3.6.1
PAUSE
Page 134,
Section 3.6.2
Latch Data
Backup
Operation
Execute by
contact
1014
H
Select to back up data using a
contact. When selected, specify
the device number used as a
contact.
X, M, B Blank
Page 253,
Section 3.29
Backup all
files in the
internal of
standard
RAM
Select to back up all files in the
standard RAM.
- Selected
Remote Reset
1002
H
Select whether to allow the
remote reset from programming
tool.
Selected/deselected Deselected
Page 136,
Section 3.6.3
Output Mode at STOP to
RUN
1003
H
Set the status of the outputs (Y)
when the operating status is
switched from STOP to RUN.
Previous State, Recalculate (Output is
1 scan later)
Previous state
Page 125,
Section 3.4
Intelligent Function
Module Setting (Interrupt
Pointer Setting)
100A
H
Assign the interrupt pointers (I50
to I255) and set the start I/O
number and start SI number of
each intelligent function module.
• Start I/O No.
• Start SI No.
• I50 to 255
Blank
Page 410,
Section 4.11
Module Synchronization
100C
H
Select whether to synchronize
CPU module startup with
intelligent function module
startup.
Selected/deselected Selected -
To Next Page
