437

APPENDICES

Appendix 1 Parameters

Appendix 1.2 PLC parameters

This section describes PLC parameter details with setting windows.

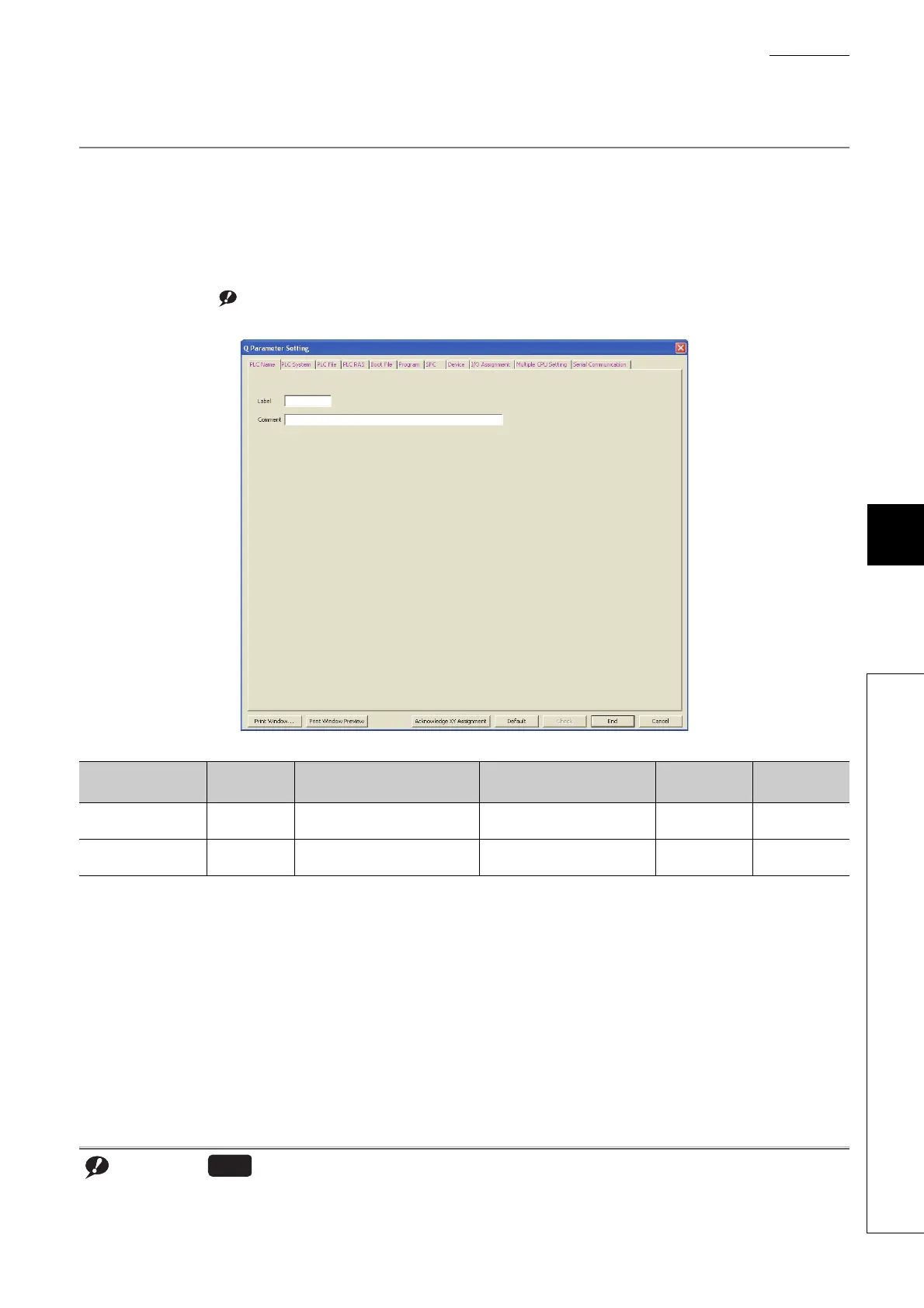

Appendix 1.2.1 PLC name

A label and a comment for the CPU module are set. The settings will be displayed in the list for the find CPU

function. Note Appx.1

Note Appx.1

The Universal model QCPUs other than the Built-in Ethernet port QCPU do not support the find CPU function.

Item

Parameter

No.

Description Setting range Default Reference

Label

0000

Set a label (name, application) for

the CPU module.

Up to 10 characters Blank -

Comment

0001

Set a comment for the CPU module

label.

Up to 64 characters Blank -

Note Appx.1

Universal
