1.7 Saving a Project

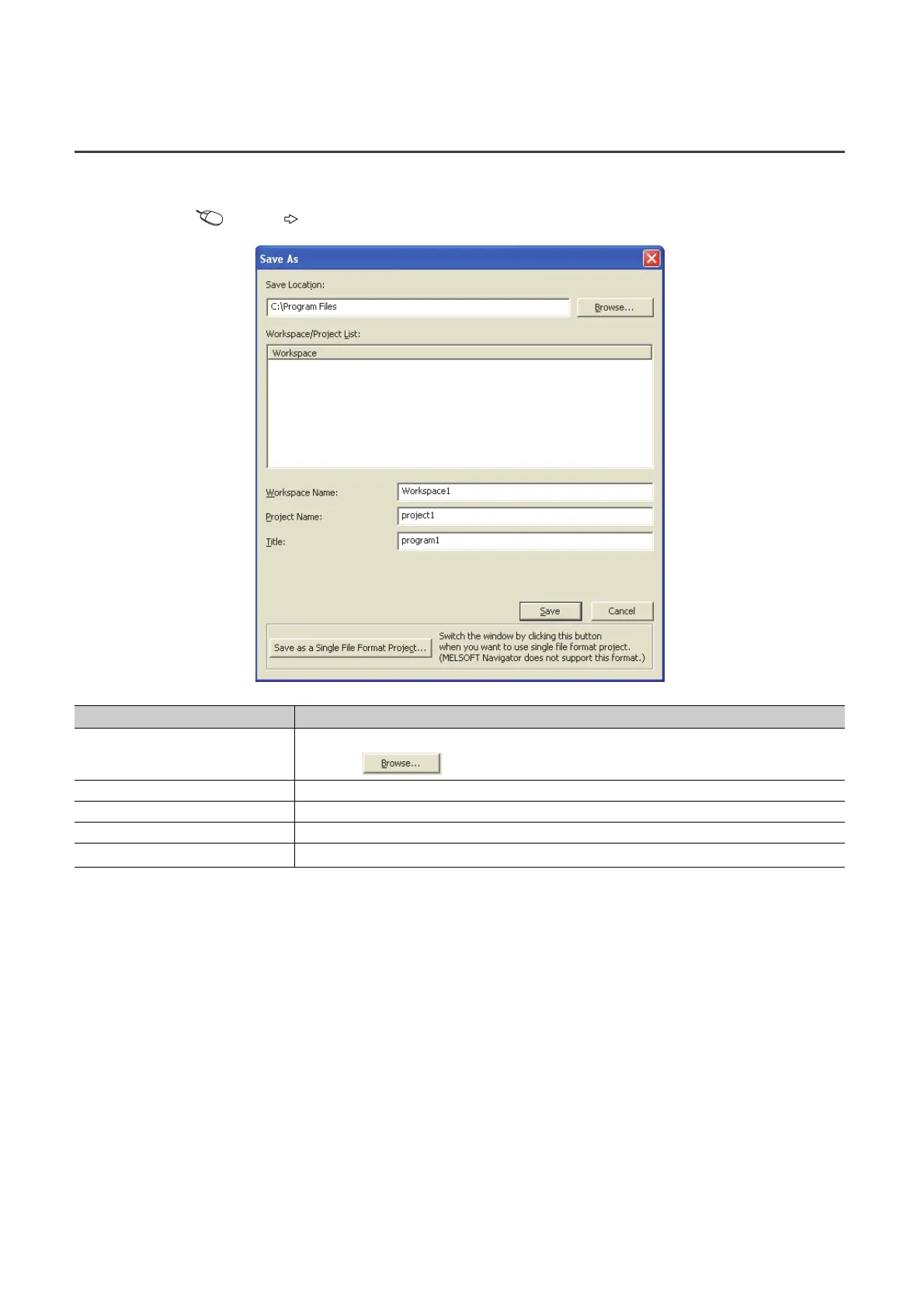

To save a project, open the "Save As" dialog box.

[Project] [Save As...]

*1 Projects can also be saved without titles.

Item Description

Save Location

Enter the storage destination folder (drive or path) of the workspace. Folders can be browsed for selection by

clicking the button.

Workspace/Project List Select a workspace. Double-click "Workspace" to display a project list.

Workspace Name Enter a name for the workspace.

Project Name Enter a name for the project.

Title

Enter a title for the project.
