CHAPTER 1 BASIC PROCEDURE FOR PROGRAMMING

1.3 Creating a Program

1.3.2 How to create a program

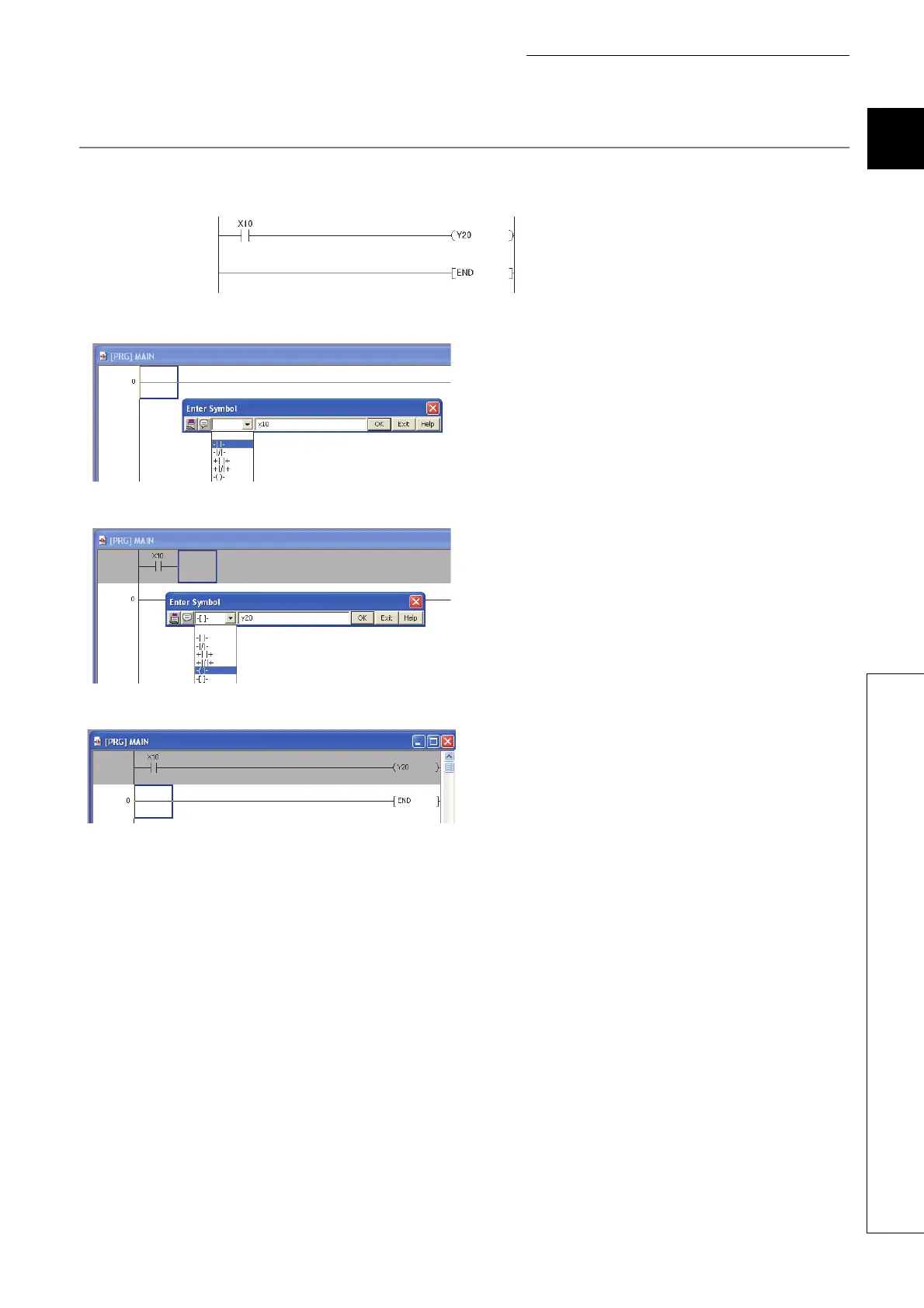

This section shows how to create the following sample program.

The program has been created. In the next procedure, convert the program.

1. To enter X10, type X10 at the original cursor

position and select the contact shown in the left

figure.



2. To enter Y20, type Y20 and select the coil shown in

the left figure.



When X10 is turned on, Y20 turns on.
