449
APPENDICES
A
Appendix 1 Parameters
Appendix 1.2 PLC parameters

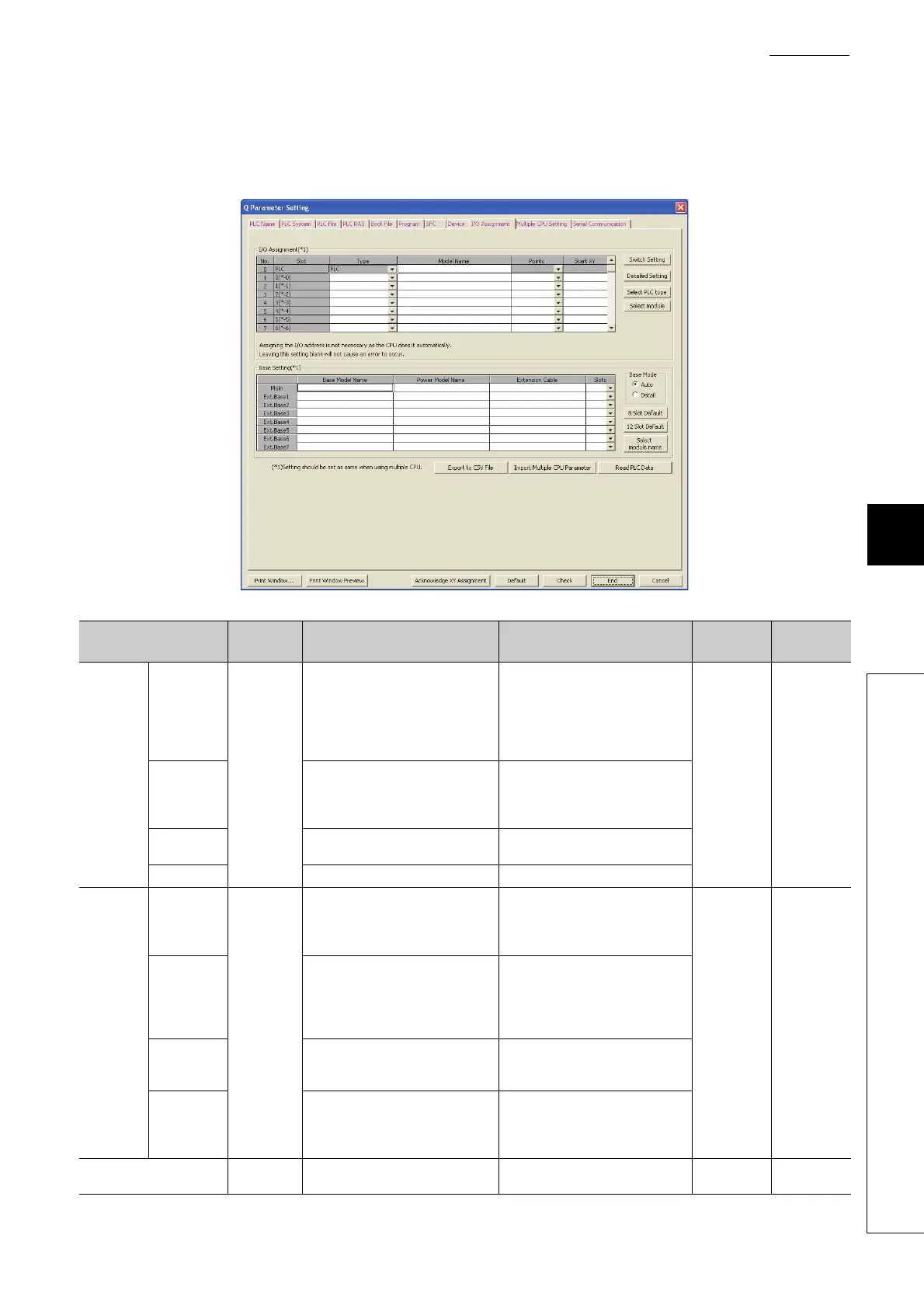

Appendix 1.2.9 I/O assignment
The mounting status of each module in the system is set.
Item
Parameter
No.
Description Setting range Default Reference
I/O
Assignment
Type
0400
H
Set the type of the mounted module.
• CPU No.2 to No.4: No.n/Empty
(Set "CPU (Empty)" for the slot
where no CPU module is
mounted.)
• Empty, Input, Hi. Input, Output, I/O
Mix, Intelligent, or Interrupt
Blank
Page 59,
Section 2.3.2
Model Name
Set the model name of the mounted
module. (Entered at user’s discretion.
Do not use the one for the CPU
module.)
Up to 16 characters
Points
Set the number of points assigned to
each slot.
0, 16, 32, 48, 64, 128, 256, 512, or
1024 points
Start XY Set the start I/O number of each slot.
0
H
to FF0
H
Base
Setting
Base Model
Name
0401
H
Set the model name of the main base
unit or extension base unit. (Entered
at user’s discretion. Do not use the
one for the CPU module.)
Up to 16 characters
Blank
Page 54,
Section 2.2.2
Power Model
Name
Set the model name of the power
supply module on the main base unit
or extension base unit. (Entered at
user’s discretion. Do not use the one
for the CPU module.)
Up to 16 characters
Extension
Cable
Set the extension cable name.
(Entered at user’s discretion. Do not
use the one for the CPU module.)
Up to 16 characters
Slots
Set the number of slots of the main
base unit or extension base unit.
This setting must be done for all base
units.
2, 3, 5, 8, 10, or 12
Switch Setting
0407
H
Set various switches of an intelligent
function module.
Refer to the manual for the intelligent
function module used.
Blank
Page 143,
Section 3.10
To Next Page
