2.10.2 Scan execution type program
Scan execution type program is executed once in every scan, starting in the next scan of which the initial execution
type program is executed and later.
When multiple scan execution type programs are executed, the scan time will be the time required for completing all
the scan execution type program execution. If an interrupt program or fixed scan execution type program is executed,
execution time of the executed program will be added to the scan time.

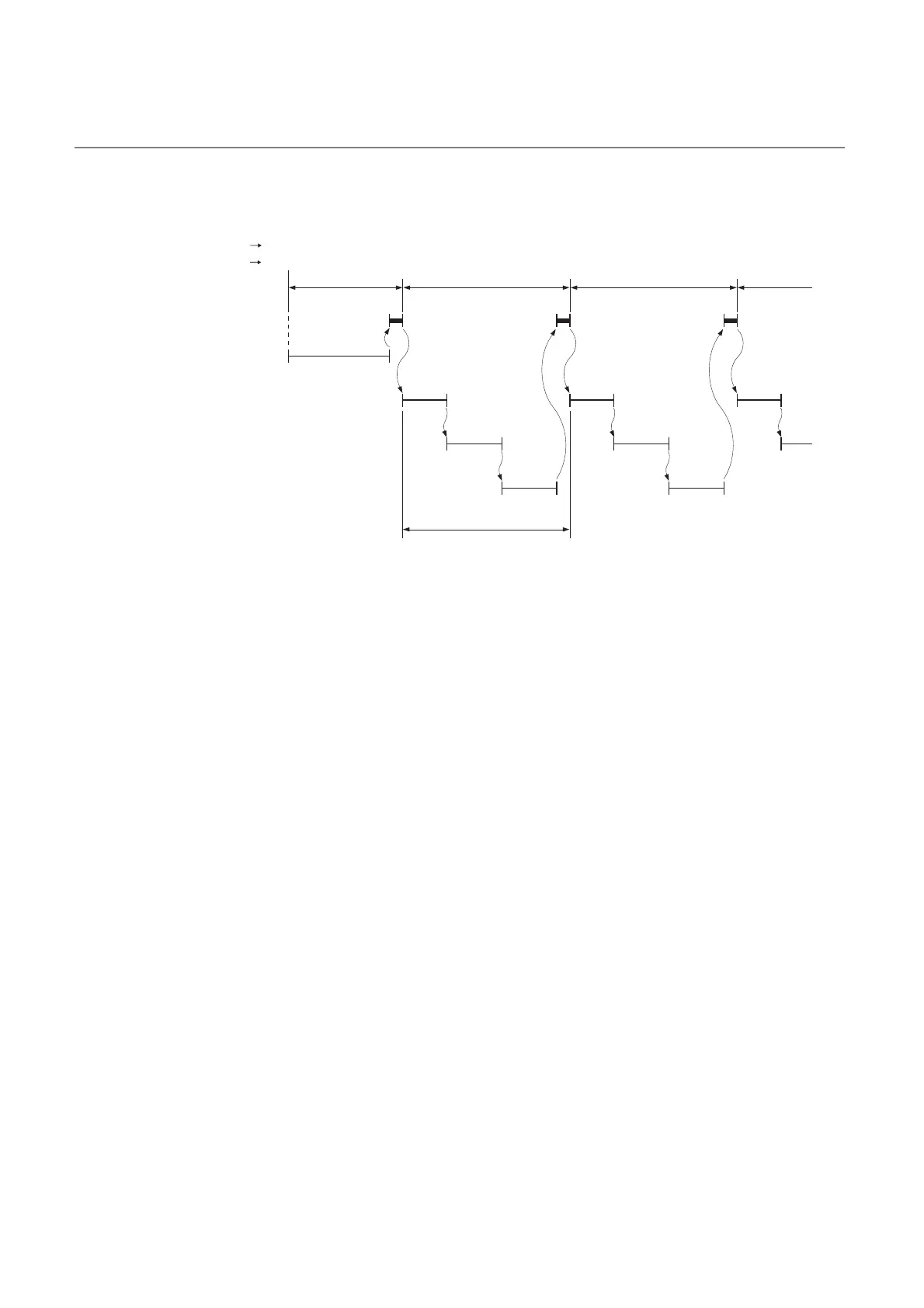

1st scan 2nd scan 3rd scan 4th scan
END processing
Initial execution type program
Scan execution type program A
Scan execution type program C
Scan execution type program B
0 END
0 END
0 END
0 END
0 END
0 END
0 END
0
Scan time
Power supply ON RUN
STOP RUN
