10

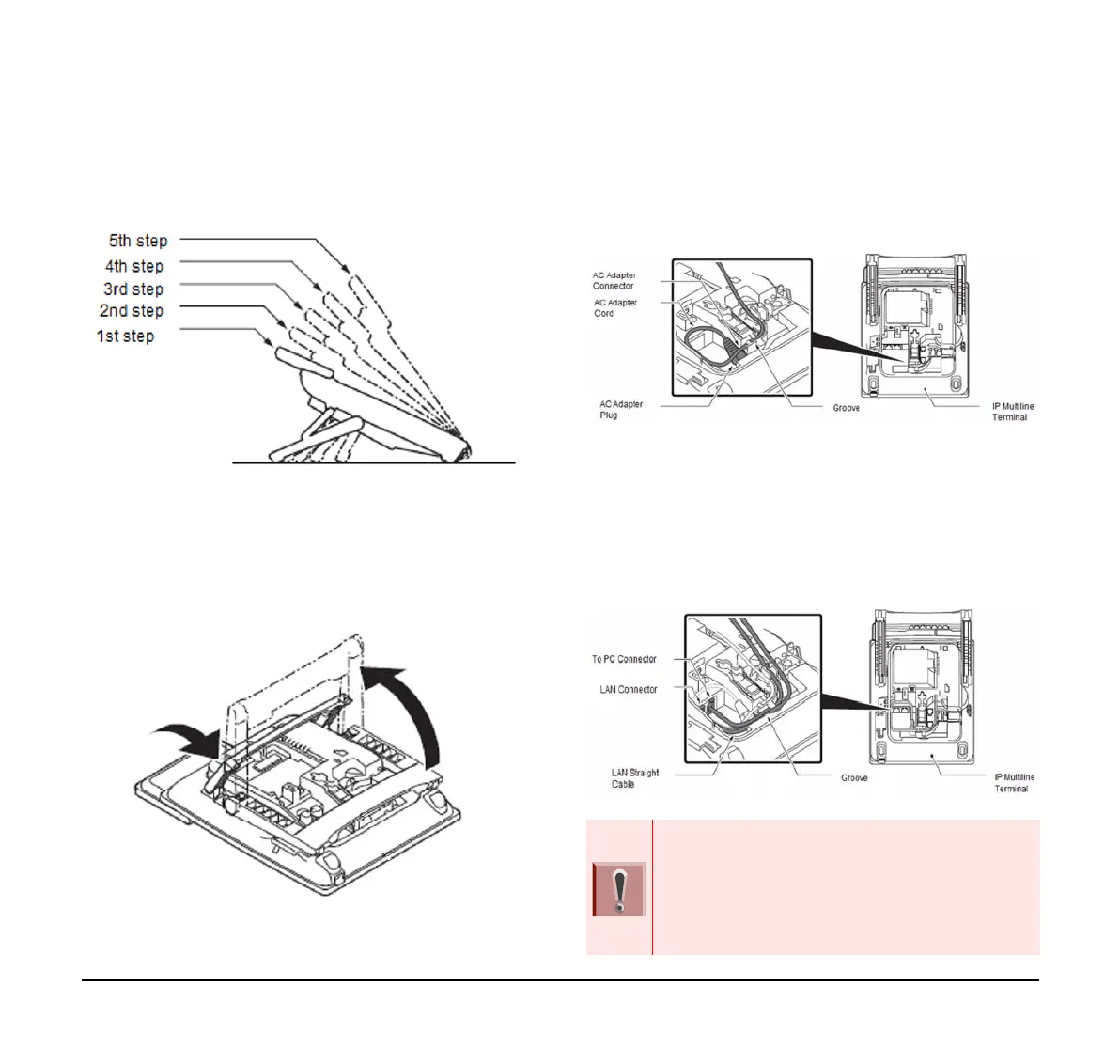

Adjusting Angle of Tilt Legs
The height can be adjusted by moving the legs, which
are attached to the bottom of the telephone.
(1) Turn the telephone over (key side down).
(2) Adjust the legs to the desired height (upward to
raise the height and downward to lower the
height).
(3) Turn the telephone over (key side up).
Connecting LAN Cable
Confirm the location of AC adapter and the LAN
connector at the back of the multiline telephone. Then
connect the multiline telephone using the following
steps.
(1) Connect the LAN Network cable to the LAN (=)
connector.
(2) The IP telephone has a switching HUB to connect
a PC to the LAN Network. Connect the 10 Base-
T/100 Base-TX/1000 Base-T straight cable used
for this connection to the PC(x) connector and to
the PC.
DT900 Series Multiline Telephone
When using the PC port with a local power
supply, depending on the LAN cable connector
housing, the LAN cable connector may not fit.
Remove the outer plastic covering from the LAN
cable connector, or use the LAN cable with a thin
connector.
To Next Page
