11
Wall Mounting the Telephone
You can wall mount a DT930 telephone. The WM-L
UNIT is required when optional adapters are
installed on the telephone.

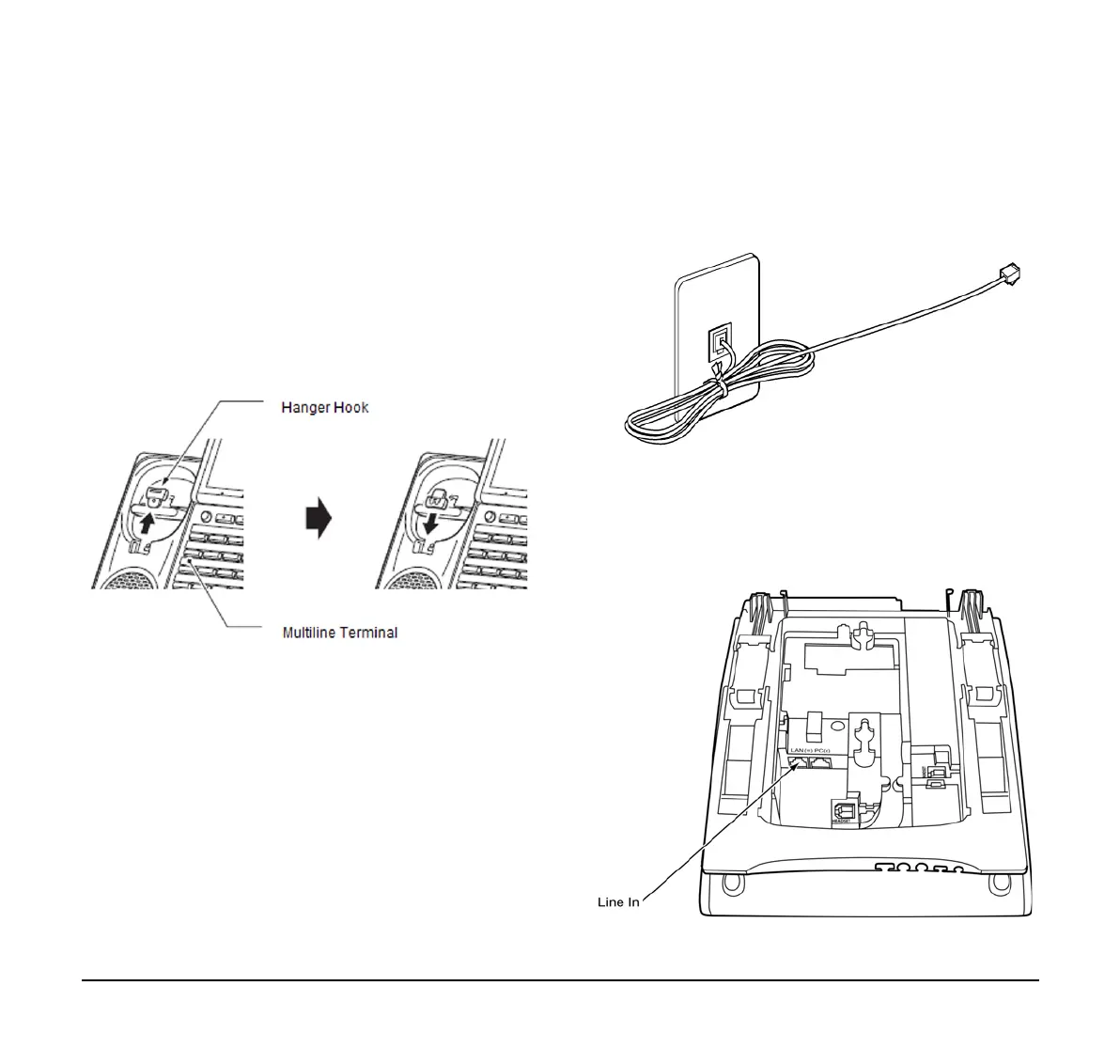

Adjusting the Hanger Hook
(1) Remove the hook from the unit.
(2) Turn the hook with the tab toward the top.
(3) Slide the hook until it glides into position forming
the hanger hook for the handset.
Mounting the Telephone to the Wall Receptacle
(1) Plug line cord into the wall receptacle. Leave about
eight inches of cord and bundle the rest as shown in
the following diagram.
(2) Ensure the tilt legs are in the flat (unused)
position.
(3) Plug the line cord into the multiline telephone as
illustrated below.
To Next Page
