1.2 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
• Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate.
• If you have received the wrong model or the drive does not function properly, contact your supplier.
u
Nameplate
PASS
RoHSRoHS
IP 20
JZAB0P1BAA
CIMR-JZBA0001BAA
0.6
5010
AC Drive Model
Input Specifications
Output Specifications
Lot Number
Serial Number
Yaskawa Ref. Number
Software Version
Heavy Duty Amps / Normal Duty Amps
Enclosure Type

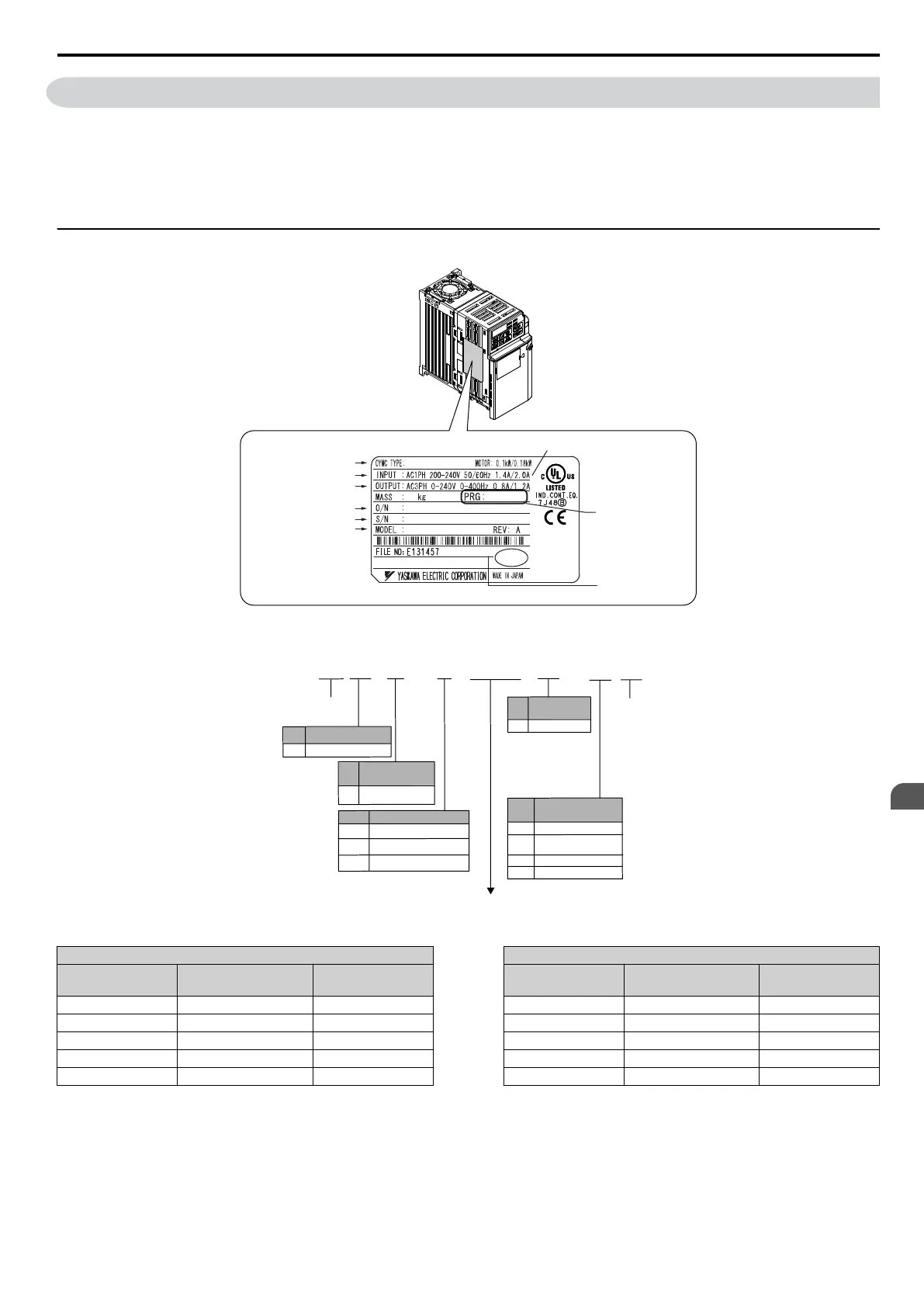

Figure 1.1 Nameplate Information
J Z
B
A
0P1
B
A A
J1000
Series
No. Type
Z
European Standard
No.
Enclosure
Type
Design
Revision
Order
IP20
B
No. Voltage Class
B
1-phase, 200-240 Vac
No.
Customized
Specifications
A Standard model
3-phase, 200-240 Vac
3-phase, 380-480 Vac
2
4
No.
Environmental
Specification <1>
A
Humidity- and
dust-resistant
Standard
S
N
M
Oil-resistant
Vibration-resistant
n
Single-Phase 200 V
Heavy Duty Normal Duty
No.
Max. Motor Capacity
kW
Rated Output
Current A
No.
Max. Motor Capacity
kW
Rated Output
Current A
B0P1 0.1 0.8 B0P1 0.2 1.2
B0P2 0.2 1.6 B0P2 0.4 1.9
B0P4 0.4 3.0 B0P4 0.75 3.3
B0P7 0.75 5.0 B0P7 1.1 6.0
B1P5 1.5 8.0 B1P5 2.2 9.6
1.2 Model Number and Nameplate Check
SIEP C710606 33A OYMC AC Drive – J1000 User Manual
17
