3.5 Protective Covers
Follow the procedure below to remove the protective covers before wiring the drive and to reattach the covers after wiring
is complete.
u
IP20/Open-Chassis Cover Removal and Installation
n
Removing the Protective Covers
1.
Loosen the screw that locks the front cover in place to remove.

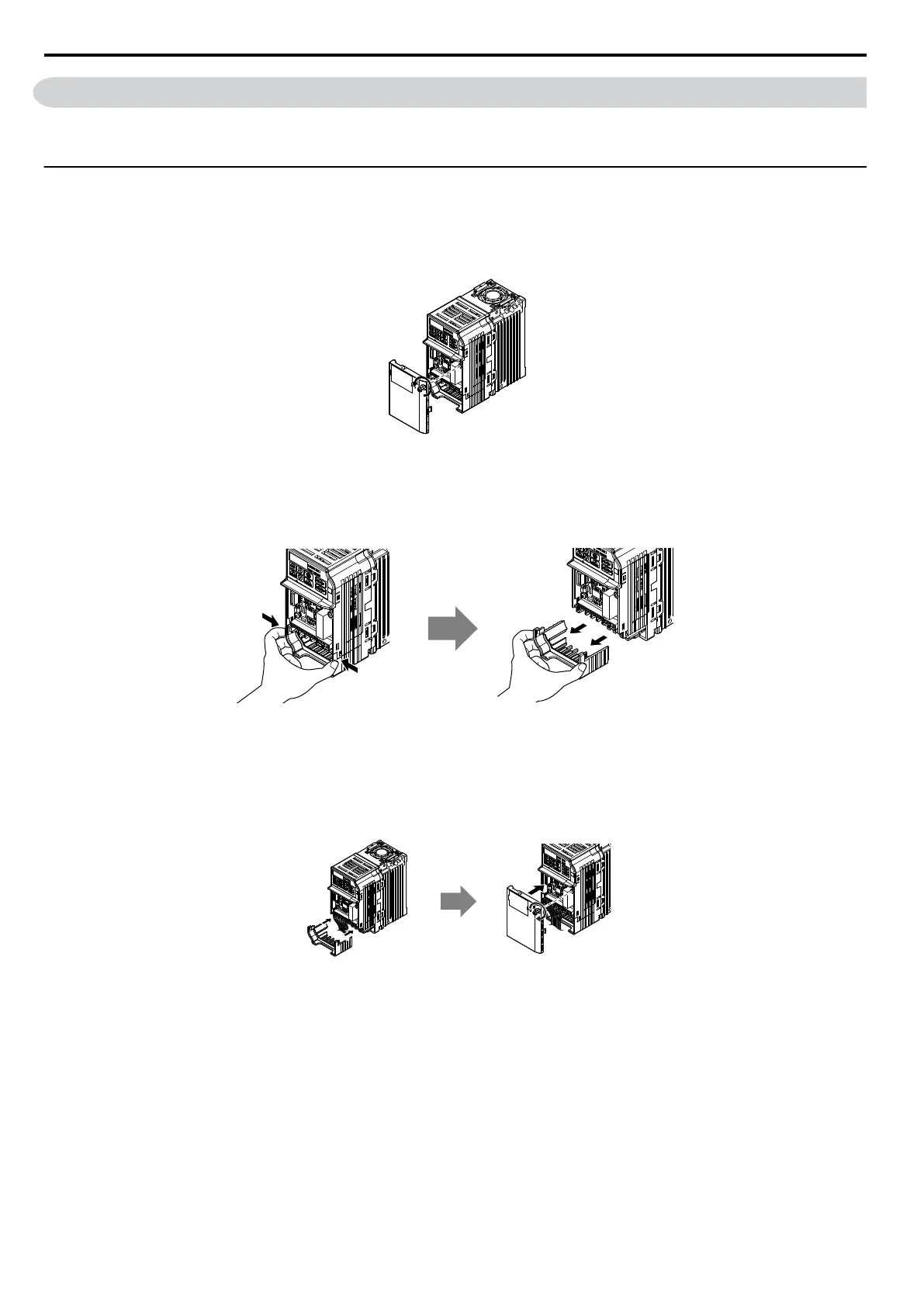

Figure 3.6 Remove the Front Cover on an IP20/Open-Chassis Drive
2.
Apply pressure to the tabs on each side of the terminal cover. Pull the terminal cover away from the drive while
pushing in on the tabs to pull the cover free.
Figure 3.7 Remove the Terminal Cover on an IP20/Open-Chassis Drive
n
Reattaching the Protective Covers
Properly
connect all wiring and route power wiring away from control signal wiring. Reattach all protective covers when
wiring is complete. Apply only a small amount of pressure to lock the cover back into place.
Figure 3.8 Reattach the Protective Covers on an IP20/Open-Chassis Drive
3.5 Protective Covers
36
SIEP C710606 33A OYMC AC Drive – J1000 User Manual
